Adjustment Revision FDetails of Adjustments 26
Epson Stylus NX125/T13/NX130 series Revision F
2.2 Revision FDetails of Adjustments
This section provides adjustment procedures for which explanation in details is necessary. See " 2.1 Required
Adjustments (p24)" for the adjustments not explained here.
2.2.1 TOP Margin Adjustment
Three adjustment patterns are printed on the top of the paper as shown in Figure 2-1.

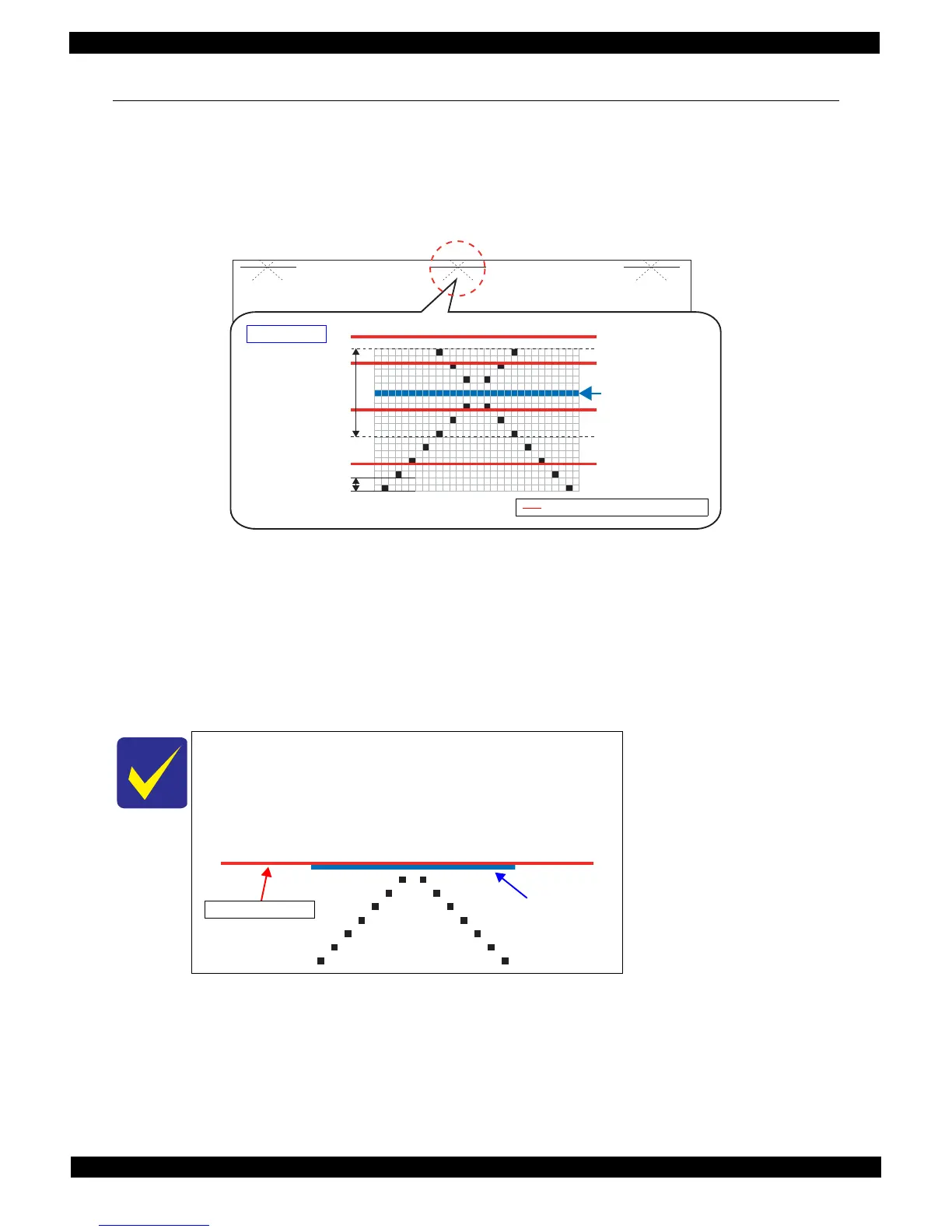

Figure 2-1. Top Margin Adjustment Printout Pattern
How to Judge
Check if the top edge of the paper is within -3 to +3 steps from the standard line.
Additional Information
If it is not within the OK range, select the adjustment value (-4 to +4 steps) on the adjustment program to adjust the top edge
of paper until it becomes within -3 to +3 steps from the standard line. Then, print the adjustment pattern again to check the
result.
 The patterns are printed on three sections. If those three patterns
are in different position to the top edge of paper, the paper was
fed on a skew. Set the papers correctly and print it again to
adjust the top margin correctly.
 The following pattern is printed with the optimal adjustment
value.
How to Judge
Within ±3 steps from
standard line is OK
NG:-4 steps from
standard line
NG:+5 steps from
standard line
OK
OK
Standard line
1 Step
Position of the top edge of paper
Standard line
Top edge of paper
