Epson Stylus NX125 User Manual

Epson Stylus NX125/T13/NX130 series Revision F
Confidential
Maintenance Lubrication Point 30

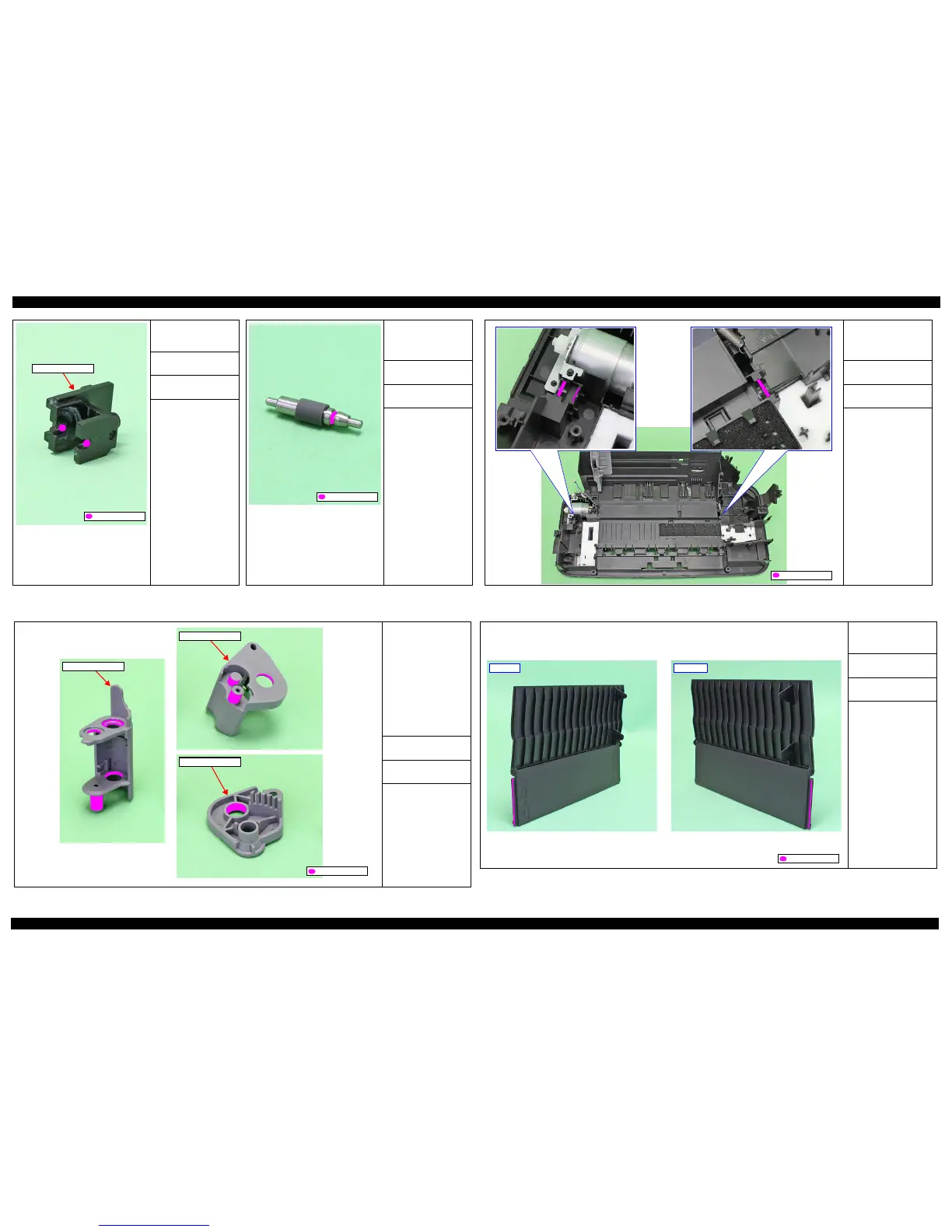

Figure 3-5. Lubrication on Driven Pulley Holder Figure 3-6. Lubrication on Roller Idler Pick Assy
<Lubrication Point>
Contacting points (x2)
with the Driven Pulley
<Type>
G-71
<Application Amount>
Size of a grain of rice
<Remarks>
 Wipeout grease.
 Apply with injector.
Driven Pulley Holder
Lubrication Point
<Lubrication Point>
Sliding surface between
the Roller Idler Pick and
Spring Roller Idler Pick
<Type>
G-74
<Application Amount>
Sufficient quantity
<Remarks>
 Wipe out grease.
 Apply with brush.
Lubrication Point
Figure 3-7. Lubrication on PF Roller
<Lubrication Point>
Ribs (x3) of the Frame
Base (contacting points
with the PF Roller)
<Type>
G-71
<Application Amount>
Sufficient quantity
<Remarks>
 Wipe out grease.
 Apply with injector.
Lubrication Point
Figure 3-8. Lubrication on LD Roller Assy
<Lubrication Point>
 Contacting points (x5)
between the shafts and
bushings of the Head
Pick Housing
 Contacting point (x1)
with the Right Pick
Housing
 Contacting points (x3)
between the shafts and
bushings of the Left
Pick Housing
<Type>
G-71
<Application Amount>
Sufficient quantity
<Remarks>
 Wipe out grease.
 Apply with injector.
Left Pick Housing
Right Pick Housing
Head Pick Housing
Lubrication Point
Figure 3-9. Lubrication on Paper Support Assy (T13 series)
<Lubrication Point>
Rail of the Paper Support
Assy
<Type>
G-74
<Application Amount>
Sufficient quantity
<Remarks>
 Wipe out grease.
 Apply with brush.
 Keep the lubrication
within the rail. (No
grease outside of the
rail is allowed.)
Right side
Left side
Lubrication Point
