EPSON Stylus CX7300/CX7400/DX7400/NX200/TX200 series/SX200 series/Stylus CX8300/CX8400/DX8400/NX400/TX400 series/SX400 series Revision C
PRODUCT DESCRIPTION Control Panel 20
Confidential
CX7300/TX200 series (LCD-non-equipped model)
The printer has the following buttons and LEDs on the control panel.
Note * :See Table 1-19 on page 22 and Table 1-20 on page 25 for details on the button
functions, and Table 1-21 on page 26 for details on the LED functions.

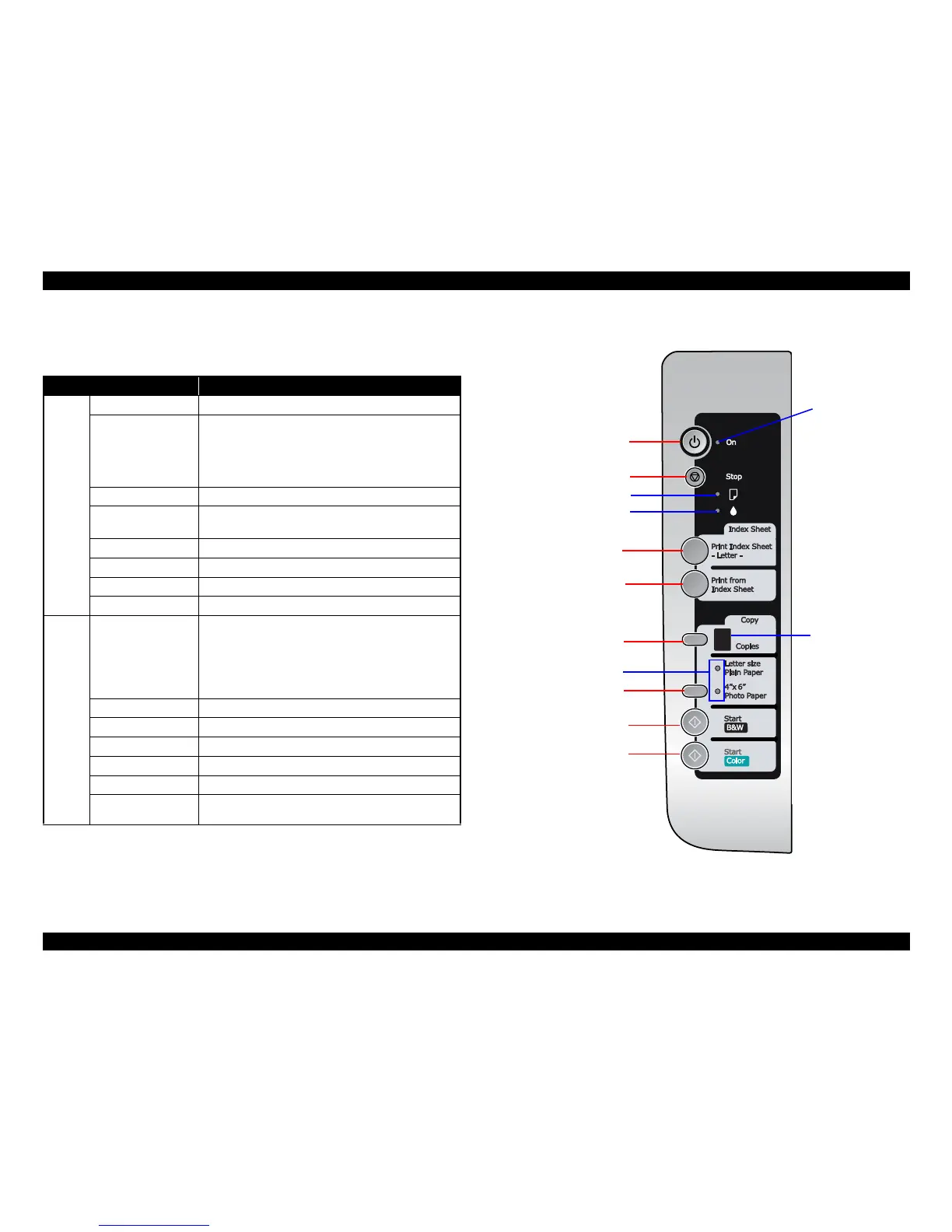

Figure 1-6. CX7300/TX200 series Control Panel
Table 1-17. CX7300/TX200 series Operation Buttons & LEDs
Button/LED Function
Button
Power Turns the power ON/OFF.
Stop / Maintenance
[When printing]
Stops printing, cancels the job, or cancels the error.
[When not printing]
Performs maintenance such as head cleaning and Ink
replacement. Clears the settings.
Print Index Sheet Prints an index sheet.
Print from Index Sheet
Starts reading an index sheet and prints photos stored in
memory card.
Copies Sets a number of copies.
Paper Type Selects paper type and size.
Start B&W Starts B&W copying.
Start Color Starts color copying.
LED*
Power (Green)
• Flashes at power ON/OFF.
• Flashes during some sequence is in progress.
• Flashes when maintenance is performed or a fatal error
occurs.
• Lights when the printer status is other than above.
(standby / while the control panel is used for setting)
Error (Orange) Flashes when a paper- related error occurs.
Ink (Orange) Flashes when an ink-related error occurs.
7 Segments Displays the number of copies, status, or error code.
Paper LED 1 (Green) Lights while plain paper is selected.
Paper LED 2 (Green) Lights while photo paper is selected.
Card Access (Green)
• Lights while a memory card is inserted in the slot.
• Flashes while a memory card is accessed.
