2.1.3 Printhead
The D2 Chips type printhead is employed.
 Nozzle configuration
 Black: 90 nozzles x 1
 Color: 29 nozzles x 3 (cyan, magenta, yellow)

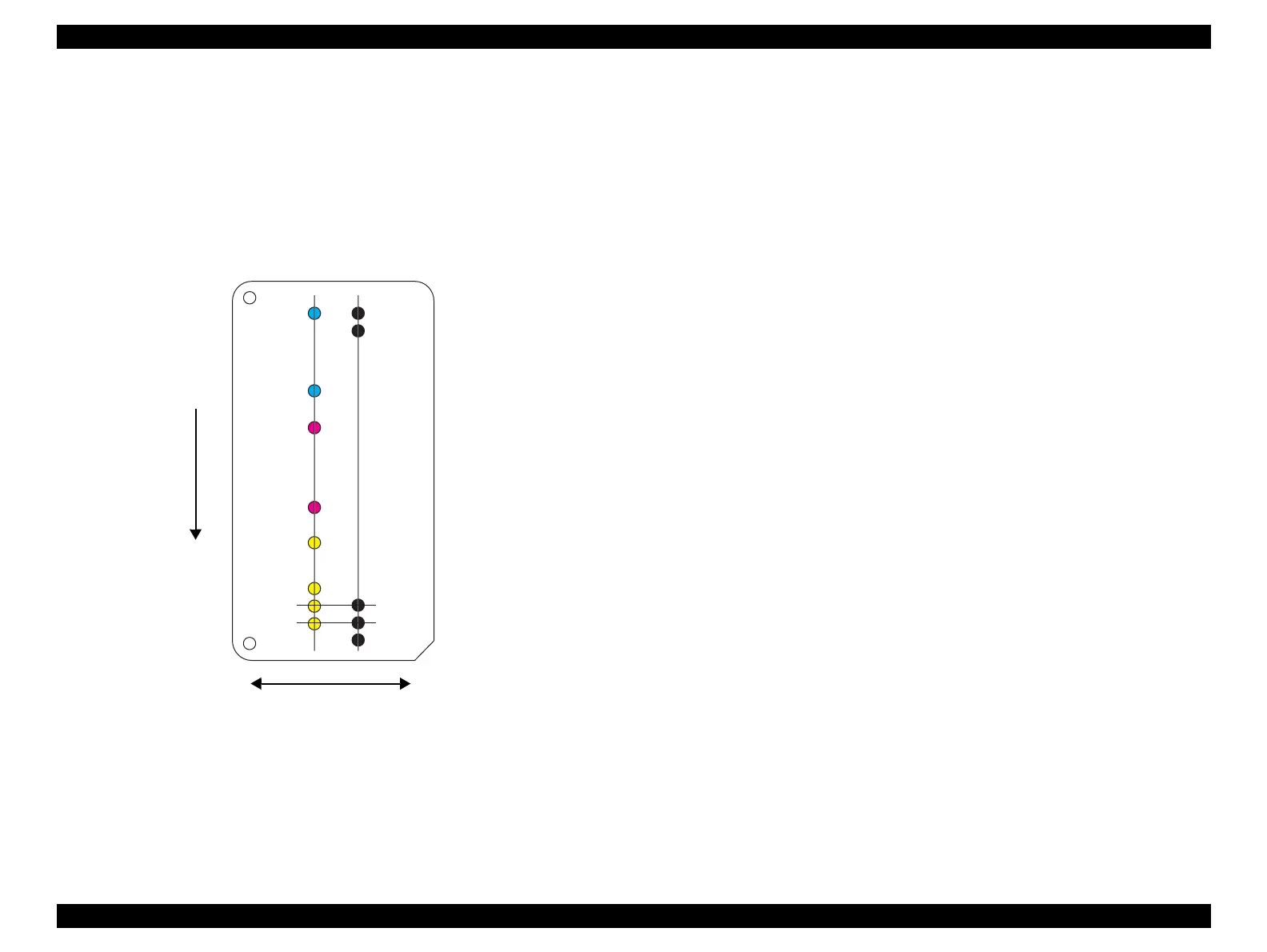

The nozzle layout as seen from behind the printhead is shown below.
Figure 2-4. Nozzle Layout
C#29
C#1
M#29
M#1
Y#29
Y#3
Y#2
Y#1
K#3
K#1
K#90
K#89
K#2
Carriage movement direction
Paper feed direction
