Valve #- Function
Hose Label
Color- Extend
Hose Label
Color- Retract
Cartridge Valve
Wire Color
V1= Left Front Leveling Jack Brown Brown w/ stripes Brown
V2= Right Front Leveling Jack White White w/ stripes White
V3= Left Rear Leveling Jack Orange Orange w/ stripes Orange
V4= Right Rear Leveling Jack Yellow Yellow w/ stripes Yellow
V5= Slide-Out #1 (if equipped) Green Green w/ stripes Green
V6= Slide-Out #2 (if equipped) Purple Purple w/ stripes Purple
V7= Slide-Out #3 (if equipped) Grey Grey w/ stripes Grey
V8= Slide-Out #4 (if equipped) Red Red w/ stripes Red

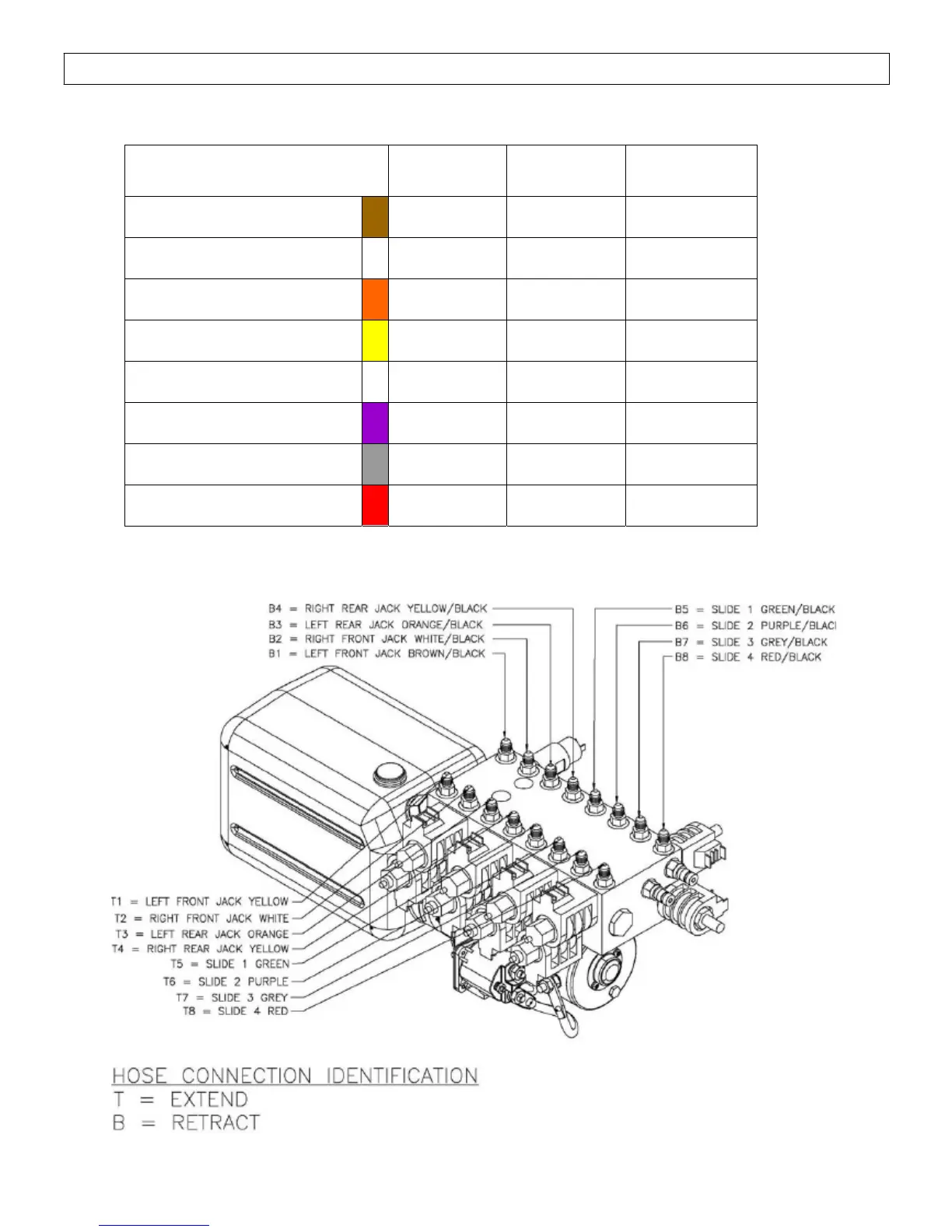

Valve Identification/Hose Connections
9
