12) Fan Motor (50732)
Replacement Procedure:
▪ Unplug the unit.
▪ Remove the top panel (Two screws behind and slide back)
▪ The fan motor is mounted on the heater housing.
▪ Unfix the support to the hater housing. (4 bolts on the top)
▪ Unfix the upper heater housing. (3 screws and a few clamps)
▪ The blower / fan is mounted on the shaft of the fan motor with the help of a nut
▪ Unfix the nut (rotate it clockwise) and remove the blower.
▪ Unfix the fan motor (4 screws on top).
▪ Replace the same and do the wiring as before / below.
▪ Fix all the parts back by following the reverse procedure.

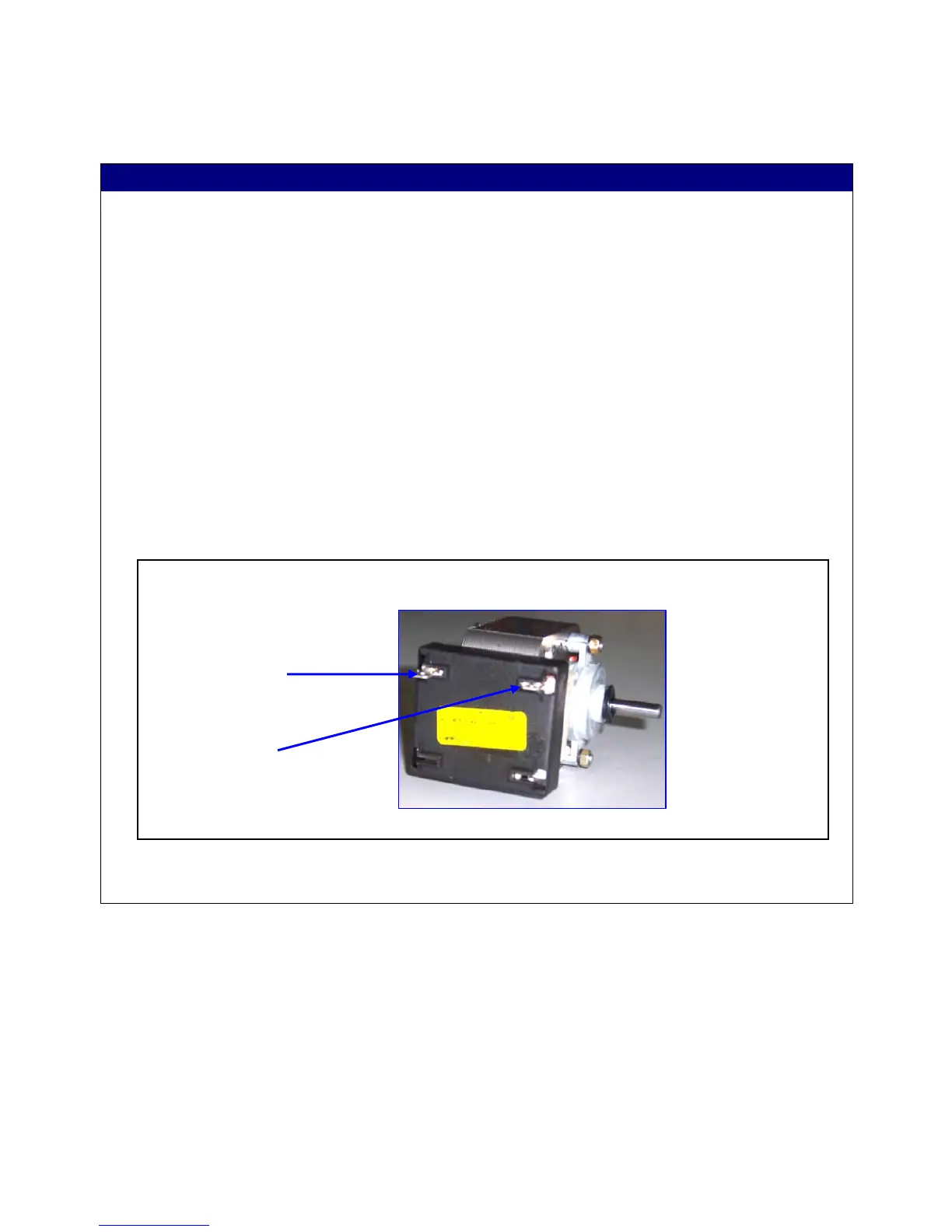

Wiring: Fan Motor
MV
TF
