13) Blower / Fan / Impeller Assembly (51733)
Replacement Procedure:
▪ Unplug the unit.
▪ Remove the top panel (Two screws behind and slide back)
▪ Unfix the support to the hater housing. (4 bolts on the top)
▪ Unfix the upper heater housing. (3 screws and a few clamps)
▪ The blower / fan is mounted on the shaft of the fan motor with the help of a nut
▪ Unfix the nut (rotate it clockwise) and remove the blower.
▪ Replace the same.
▪ Fix all the parts back by following the reverse procedure.

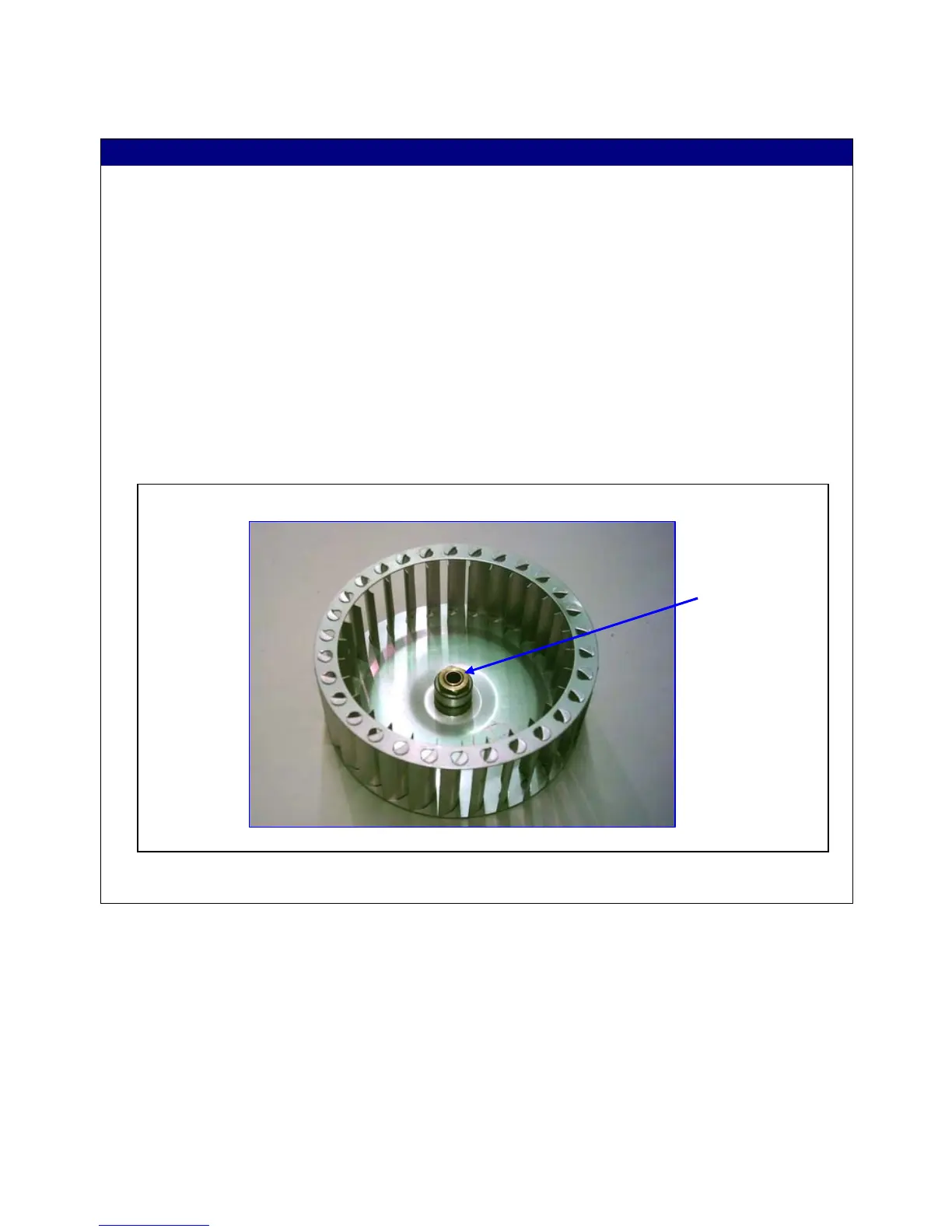

Blower / Fan / Impeller assembly
Nut
