Equipson Mark MAX Series - Front and Rear Panel

Insert Send & Return
Tip=
Send (out)
Ring=
Retum(in)
Ring
Connect the insert send with the input and the
insert return with the output of the effects device.
Headphones 1/4 connector
Tip=
Left Signal
Ring=
Right Signal
Strain Relief Clamp

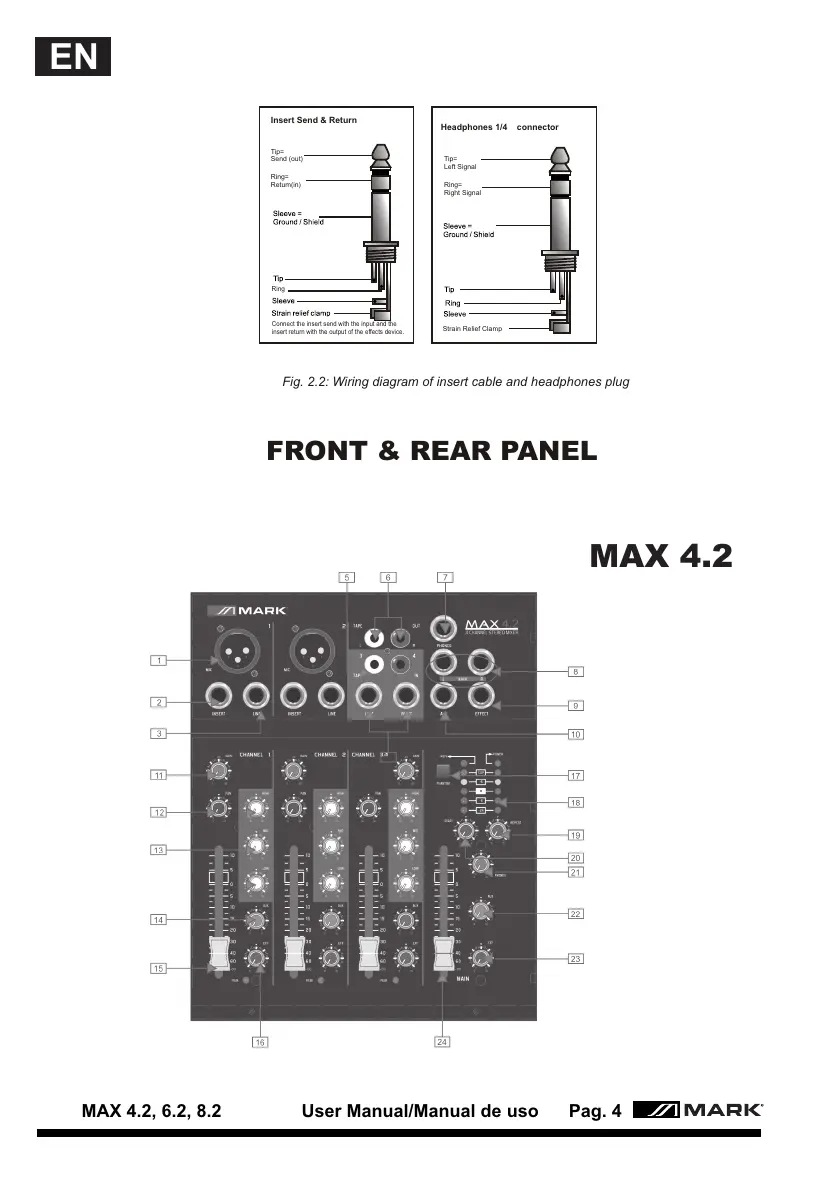

Fig. 2.2: Wiring diagram of insert cable and headphones plug
FRONT & REAR PANEL
MAX 4.2, 6.2, 8.2 User Manual/Manual de uso Pag. 4
