In more detail . . .
Care and maintenance

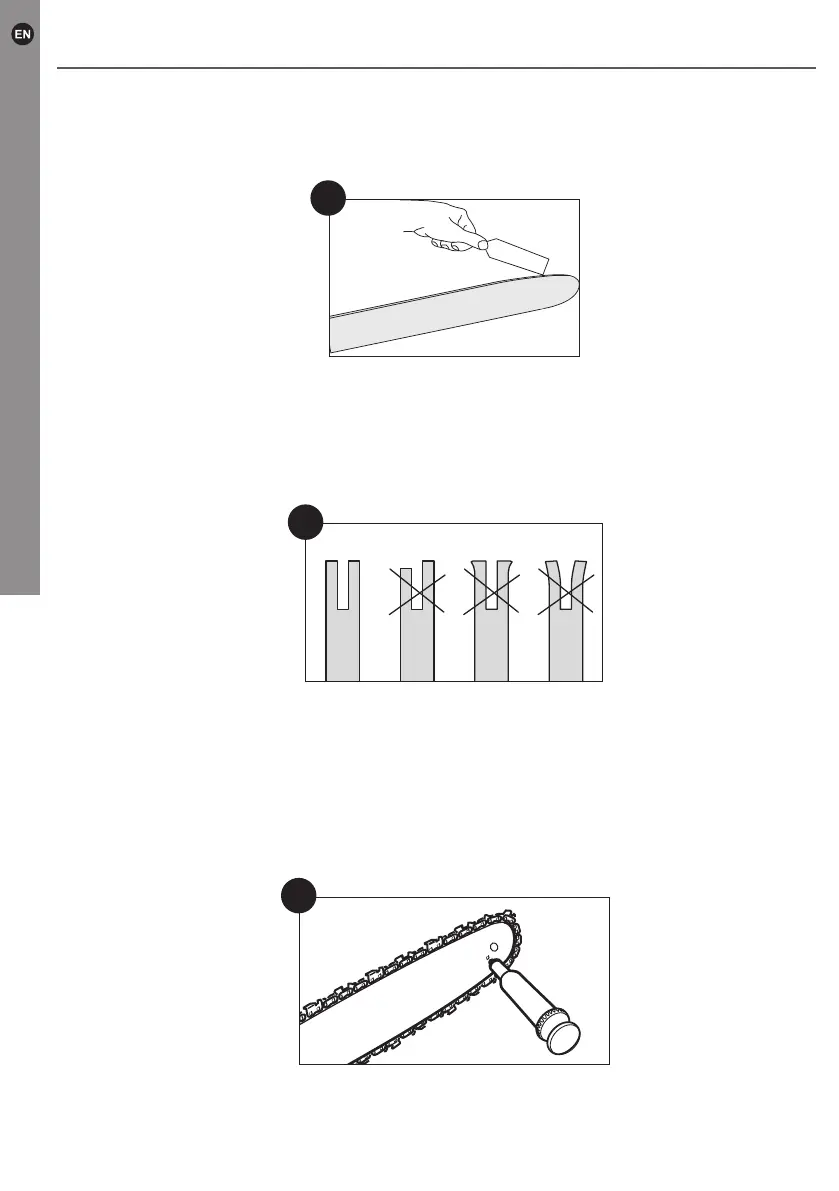

4. Remove any dirt accumulated inside the guide bar (2) slot using a plastic putty knife
(not provided) (Fig. 40).
40
5. Check the guide bar “rail” for wear: Hold a ruler (straight edge) against the side of
the guide bar (2) and “cutter side plates”. If there is a gap between the ruler and
guide bar (2) the guide bar “rail” is normal. If there is no gap (ruler ush against the
side of the guide bar (2)) the guide bar “rail” is worn and needs to be replaced with
a new one of the same type (Fig. 41).
41
6. Check the saw chain (3) for possible wear and damages. Replace it with a new
one if required. Experienced user can sharpen a dull saw chain (see section “Saw
chain sharpening” below).
7. Clean the nose sprocket at the tip of the guide bar (2).
8. Ret the saw chain (3) and the guide bar (2) as described under section “Assembly”.
9. Using a disposable lube gun, insert the needle nose into the lubrication hole (1)
(Fig. 42) and inject grease until it appears at the outside edge of the sprocket.
42
10. Make sure that the chain brake is disengaged. Rotate the saw chain (3) by hand.
Repeat the lubrication procedure until the entire sprocket has been greased.
