22
ECSP51
Getting Started . . .
3.

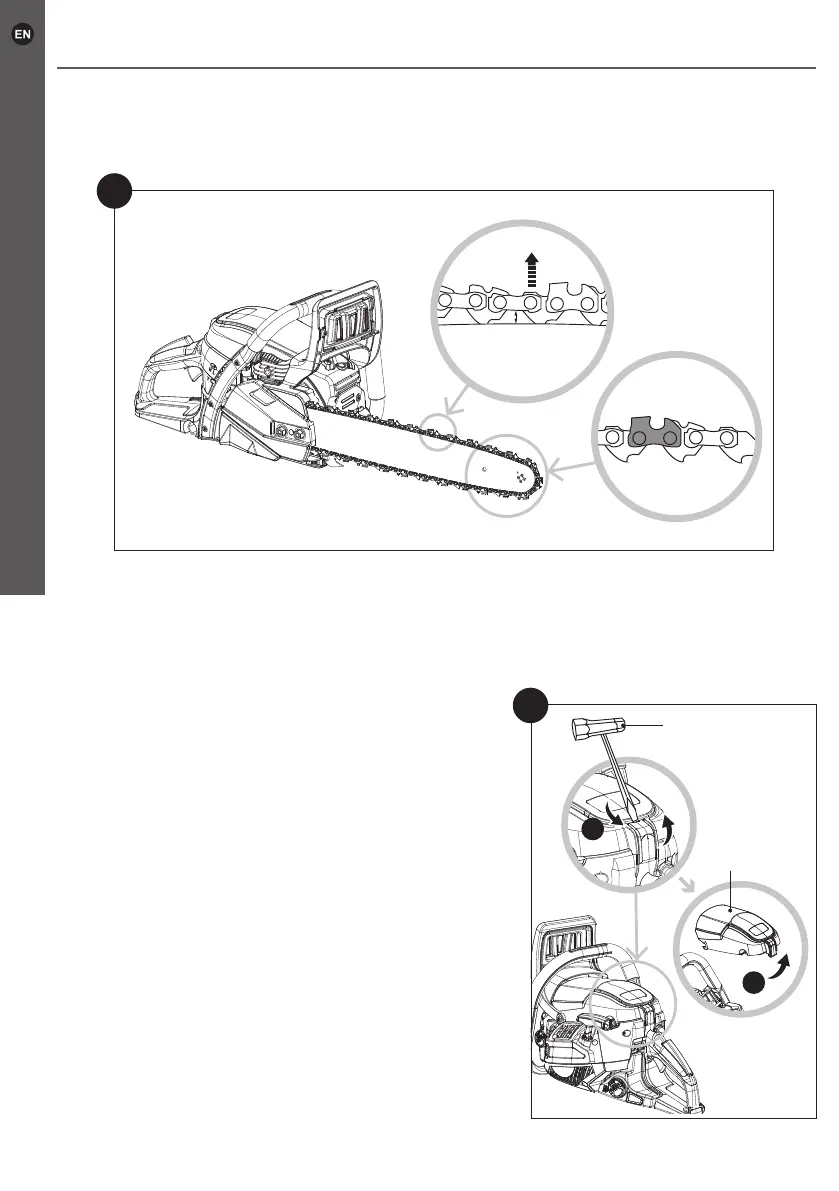

After adjusting the tension it should be possible to lift the saw chain (3) 3-4 mm from
the guide bar (2) (Fig. 9).
9
3-4 mm
4. Tighten the xing nuts (18) with the multi-tool (24) to secure the guide bar (2) and
the guard cover (19).
Switching between standard/anti-freeze mode
Set the vent for the carburettor to standard or anti-freeze mode.
>
In normal operating conditions (temperature
above +5 °C), use the product in standard mode,
i.e. using factory default setting.
> In anti-freeze mode the vent is open so that the
hot air from around the cylinder can ow to the
carburettor. This prevents the carburettor from
freezing.
1.
Insert the multi-tool (24) into the slot on the
locking lever and push downwards to pry the
top cover (6) open (Fig. 10).
2. Turn the top cover (6) over. Locate the vent tab
and slide it out using screwdriver (28).
3.
Select the desired side of the vent tab (standard
or anti-freeze) and ret it to open or close the
vent.
Before you start
6
1
2
24
10
