ERBAUER 216MM (8”) SLIDING MITRE SAW
Bevel/Mitre Settings
Settings for standard crown molding lying fl at on
compound mitre saw table
Note: The chart below references a
compound cut for crown molding ONLY
WHEN THE ANGLE BETWEEN THE WALLS
EQUALS 90°.
KEY
BEVEL
SETTING
MITRE
SETTING
TYPE OF CUT
Inside corner-Left side
IL 33.9° 31.6° Right 1) Position top of molding against
fence.
2) Mitre table set at RIGHT 31.6°.
3) LEFT side is fi nished piece.
Inside corner-Right side
IR 33.9° 31.6° Left 1) Position bottom of molding
against fence.
2) Mitre table set at LEFT 31.6°.
3) LEFT side is fi nished piece.
Outside corner-Left side
OL 33.9° 31.6° Left 1) Position bottom of molding
against fence.
2) Mitre table set at LEFT 31.6°.
3) RIGHT side is fi nished piece.
Outside corner-Right side
OR 33.9° 31.6° Right 1) Position top of molding against
fence.
2) Mitre table set at RIGHT 31.6°.
3) RIGHT side is fi nished piece.

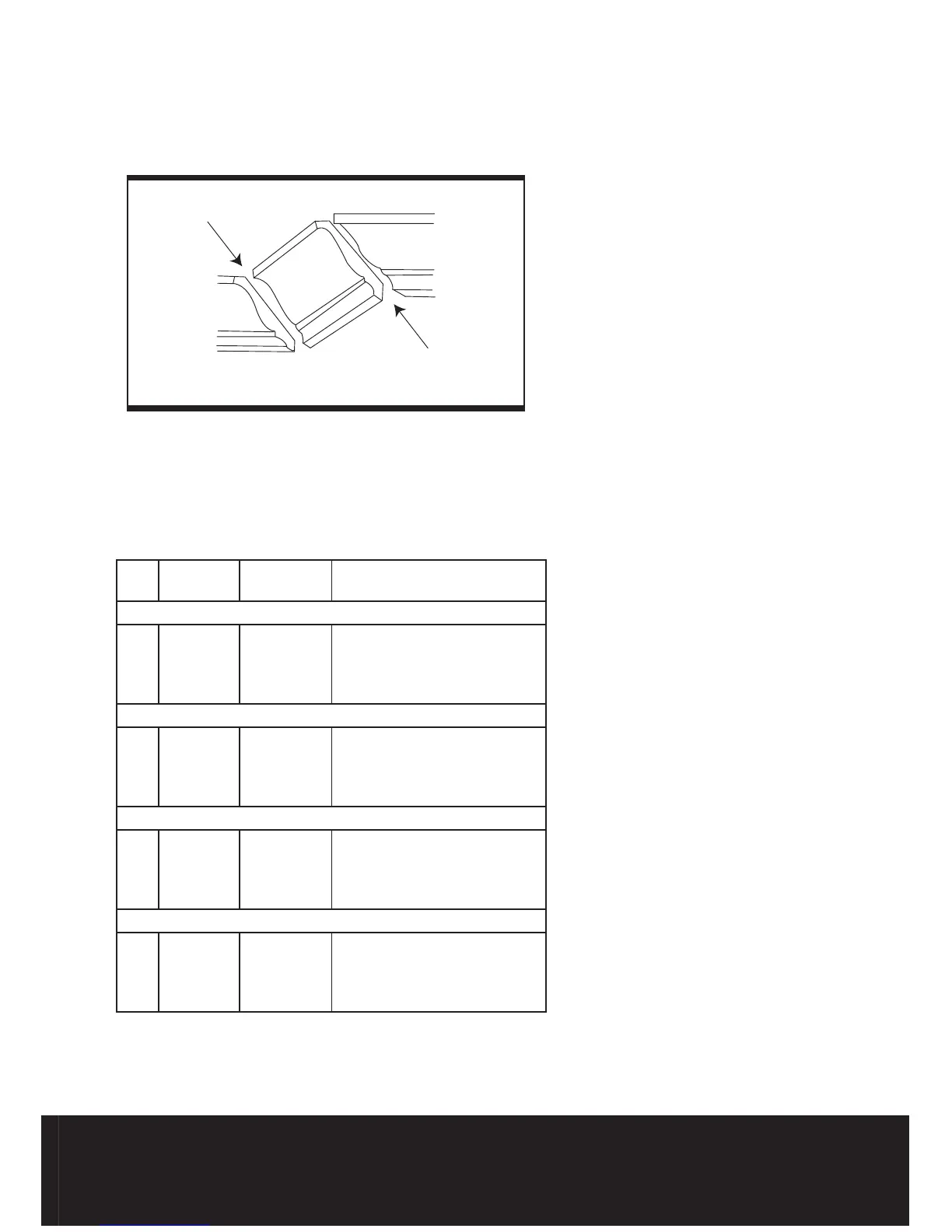

IL
IR
OL
OR
Inside Corner
Outside Corner
Compound Cut Crown Moldings
Fig 42
