OPERATING INSTRUCTIONS
Note: Before using the tool, read the instruction
book carefully.
Intended Use
The machine is intended for cutting, roughing and
brushing metal and stone materials without using
water. For cutting metal, a special protection guard
for cutting ( accessory) must be used.
ASSEMBLY AND ADJUSTMENT
MOUNTING THE PROTECTIVE DEVICES
1. AUXILIARY HANDLE
For all work with the machine, the auxiliary
handle (3) must be mounted.
Screw the auxiliary handle (3) on the right or left of the
machine head depending on the working method.
(See Fig.1)
Do not make any alterations to the auxiliary
handle.
Do not continue to use an auxiliary handle if it
is damaged.
MOUNTING THE GRINDING TOOLS
Before any work on the machine itself, pull the
mains plug.
Grinding and cutting discs become very hot
while working; do not touch until they have
cooled.
1. SPINDLE LOCK BUTTON
Clean the grinder spindle and all parts to be mounted.
For clamping and loosening the grinding tools, lock
the grinder spindle (7) with the spindle lock button
(4).
Actuate the spindle lock button (4) only when
the grinder spindle is at a standstill!
2. GRINDING/CUTTING DISC
Pay attention to the dimensions of the grinding
disc. The mounting hole diameter must fit the
inner flange (6) without play. Do not use reducers
or adapters.
Mounting disc (See Fig. 2)
Screw on the outer flange (5) and tighten with the
two-pin spanner (9).

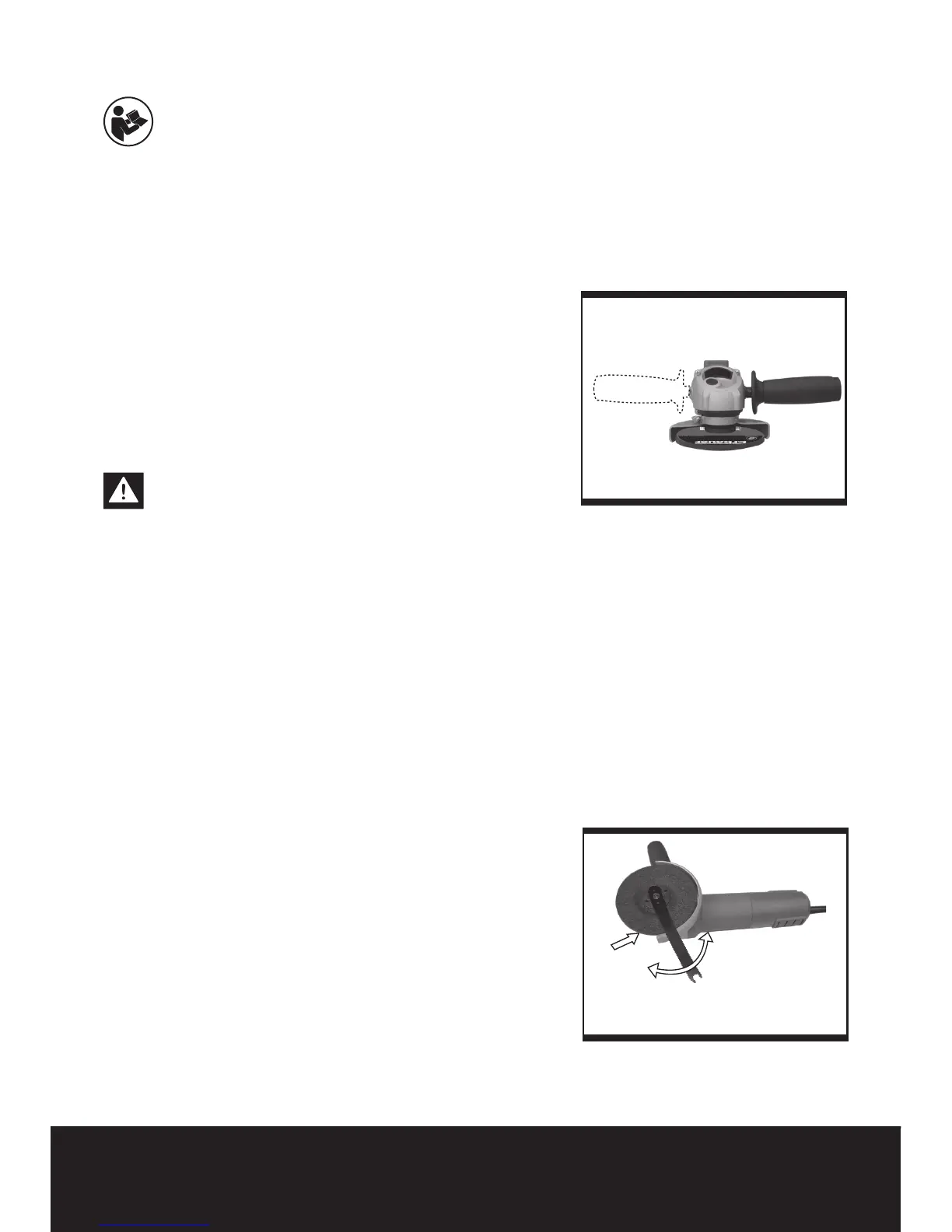

Fig. 1
