Erbauer ERI616HTL - Tool Operation; Accessory Mounting; Sanding Sheet Attachment

OPERATION
Warning: Do not touch the gear box after
long working time, because it could be
hot.
1. MOUNTING THE TOOL (See Fig. 2-1-2-3)
Caution: For all work or when changing
application tools, always wear protective
gloves. Avoid danger of injury from the sharp
edges of the application tools. Application tools can
become very hot while working, presenting danger
of burns!
Warning: To reduce the risk of injury, do
not let the universal end cut blades or
any segment saw blades face back toward the
user’s hand.

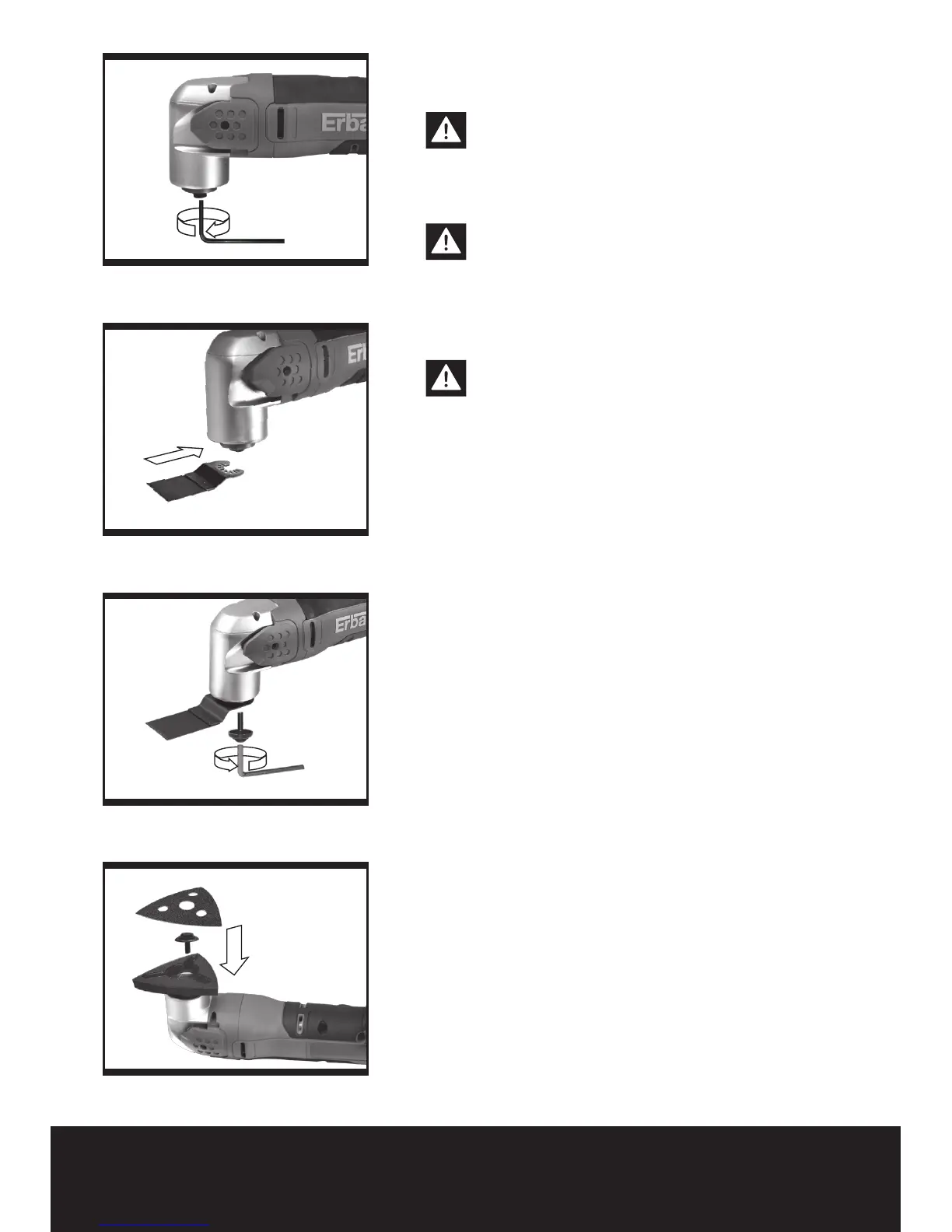

- Loosen the Flange
Use the Allen Key to rotate the Flange clockwise.
(See Fig. 2-1)
- Insert Accessories
Insert the Accessory onto the accessory holder.
(See Fig. 2-2)
-Tighten the Flange
Use the Allen Key to rotate the Flange
counterclockwise until accessory is tightened
securely.(See Fig. 2-3)
2. MOUNTING / CHANGING THE SANDING
SHEET (See Fig. 3)
Align the sanding sheet and press it onto the
sanding pad by hand.
Firmly press the power tool with the sanding sheet
against a at surface and briey switch the power
tool on. This provides for good adhesion and
prevents premature wear.
If one point has become worn, pull off the sanding
sheet, turn it 120° and place it on again.
NOTE: For other various brands’ sanding pad,
use smaller ange provided.
