Erbauer ERI616HTL - Variable Speed Control Usage

18V MULTI TOOL ERI616HTL

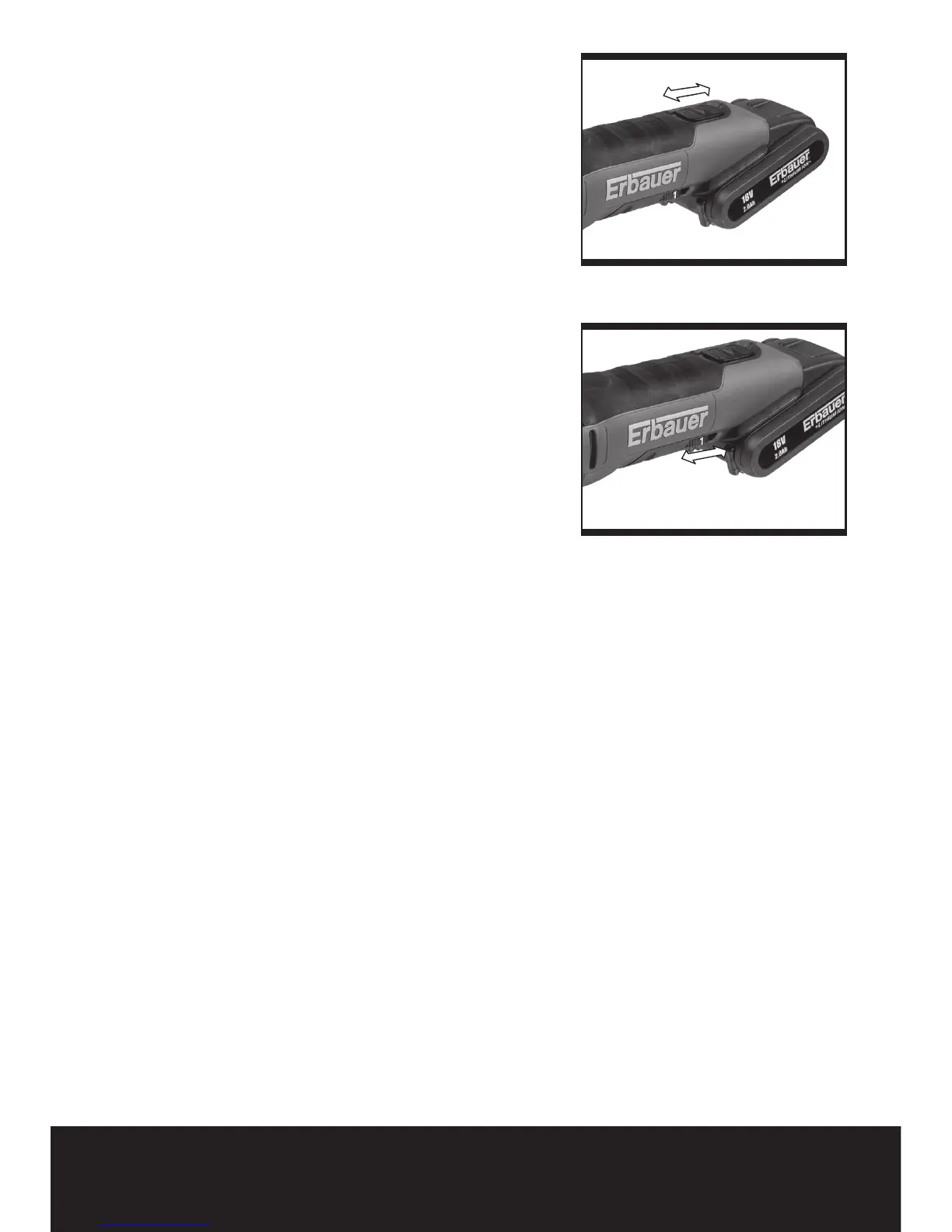

3. OPERATING THE ON/OFF SWITCH
(See Fig. 4)
To start the machine, push the On/Off switch (1)
forward so that the “1” mark is indicated on the
switch.
To switch off the machine, push the On/Off switch
(1) toward the rear so that the “O” mark is indicated
on the switch.
5. USING THE VARIABLE SPEED CONTROL
(See Fig. 5)
Select oscillation frequency (speed) while the
motor is running.
The variable speed control (4) can be used to set
the optimum oscillating frequency according to the
accessories used and the respective application.
High oscillation frequency:
Sanding, sawing, rasping and polishing stone and
metal.
Low oscillation frequency:
Polishing varnishes.
Fig. 1-1
Fig. 1-3
Fig. 1-2
Fig. 2-1
Fig. 2-2
Fig. 2-3
Fig. 3
Fig. 4
Fig. 5
