ErGear EGCM1 - C Clamp Mounting Instructions; Install Pole and Base Clamp; Adjust Mount for Desktop Thickness; Attach Support Arm to Clamp Base

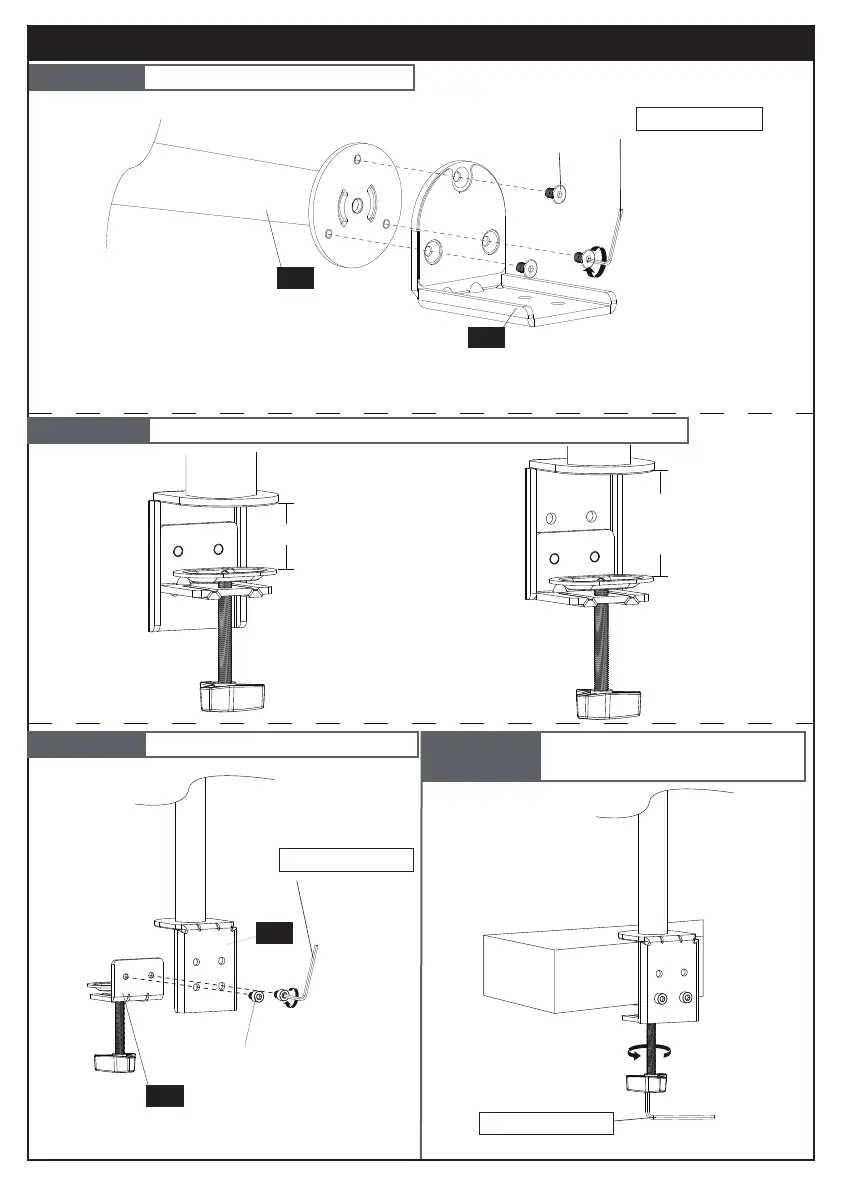

STEP 1A For C Clamp Mounting
B
E
02
02
01
A
F
＜45mm(1 49/64 in.)
45mm(1 49/64 in.)
-
80mm(3 5/32 in.)
03
STEP 1A-1 Install part [02] to pole [01]
STEP 1A-2
Secure the mount to the
desktop
Adjust the mount according to the thickness of desktop
STEP 1A-3
STEP 1A-4
Install part [03] to part [02]
15/64 in.(6mm)
F
15/64 in.(6mm)
5/32 in.(4mm)
02
