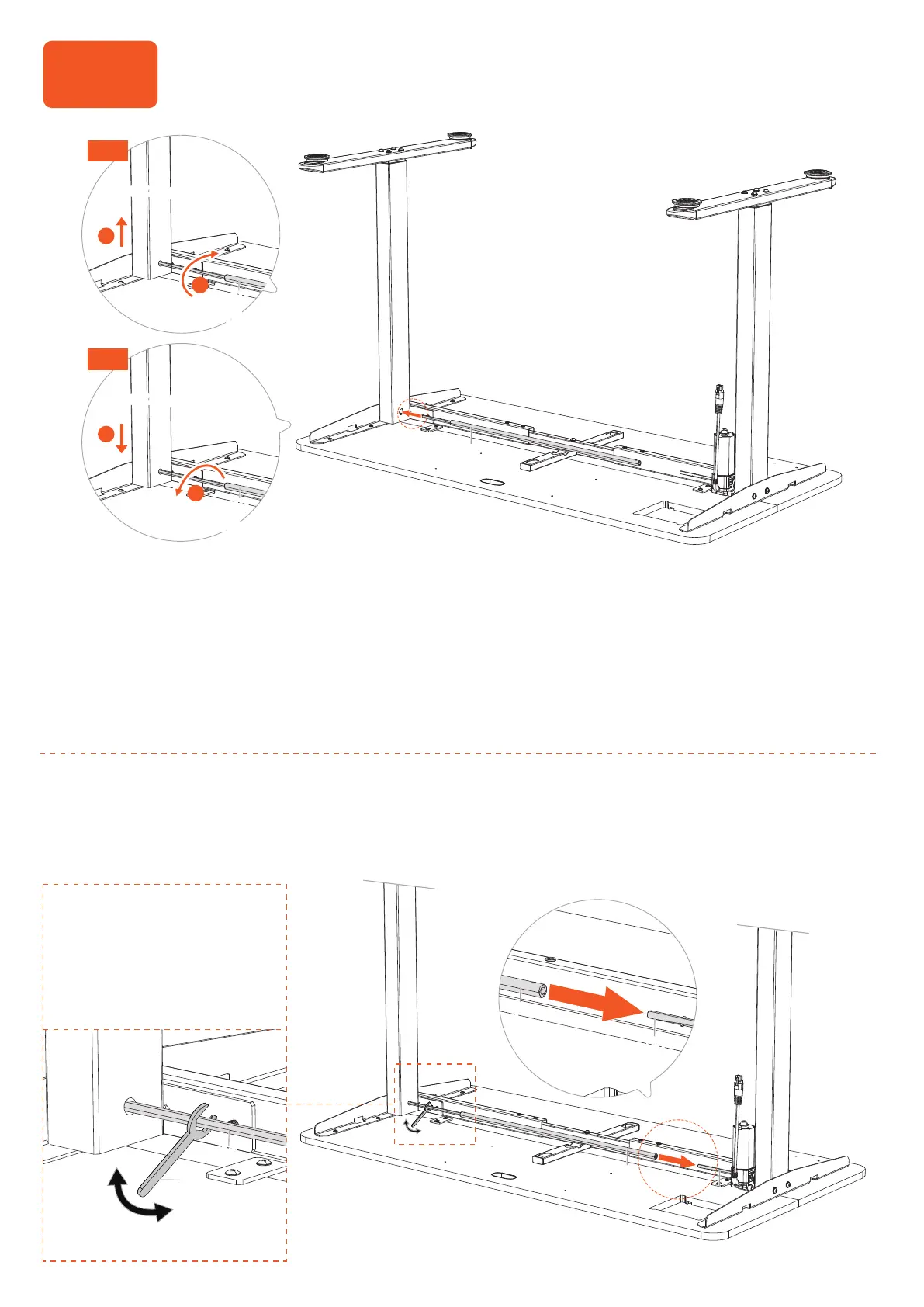

Step 4 Attaching the Transmission Rod
Before attaching the transmission rod, measure the heights of the two desk
legs to see if they are set at the same level.
If not, insert the transmission rod into the hole in the left leg. Turn the rod to
adjust the left leg so it's level with the right leg. Turn the rod clockwise to raise
the left leg or anti-clockwise to lower it.
Ensure the transmission rod is properly inserted into the hole in the left leg.
Slide the rod coupler to the right to connect with the other end of the
transmission rod.
Left LegLeft LegLeft LegLeft Leg
b
a
Fig 1
Left LegLeft LegLeft LegLeft Leg
b
a
Turn clockwiseTurn clockwiseTurn clockwiseTurn clockwise
Fig 2
Note: If the transmission
rod doesn't fit smoothly
into the hole of rod
coupler, fine-tune fit
with the wrench.
Turn
anti-clockwise
Turn
anti-clockwise
Turn
anti-clockwise
Turn
anti-clockwise
C3C3
1010
1010
1010
0303
0303
1010
1010
1010
12
