06
Right Leg

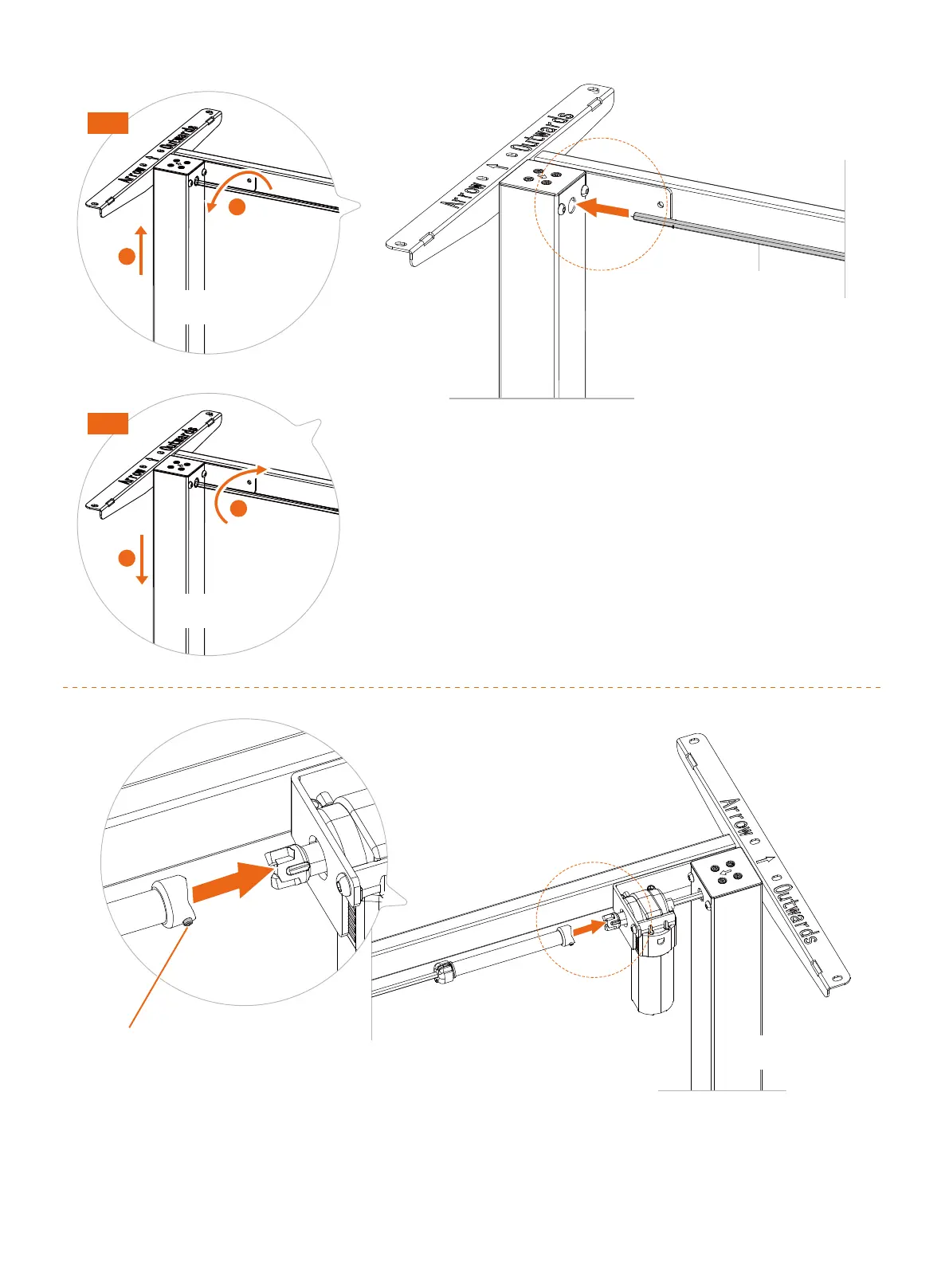

Ensure the transmission rod is properly inserted into the hole in the
left leg. Smoothly connect the other end of the rod to the end of
the motor drive shaft on the right leg.
Before attaching the transmission rod,
measure the heights of the two desk legs to see
if they are set at the same level. If not, insert the
transmission rod into the hole in the left leg.
Turn the rod to adjust the left leg so it's level
with the right leg. Turn the rod clockwise to
lower the left leg or anti-clockwise to raise it.
Left Leg
Turn
anti-clockwise
b
a
Fig 1
Fig 2
NOTE: Make sure the set
screw faces out.
