Item no: 07494
ASSEMBLY
CARRIER ASSEMBLY

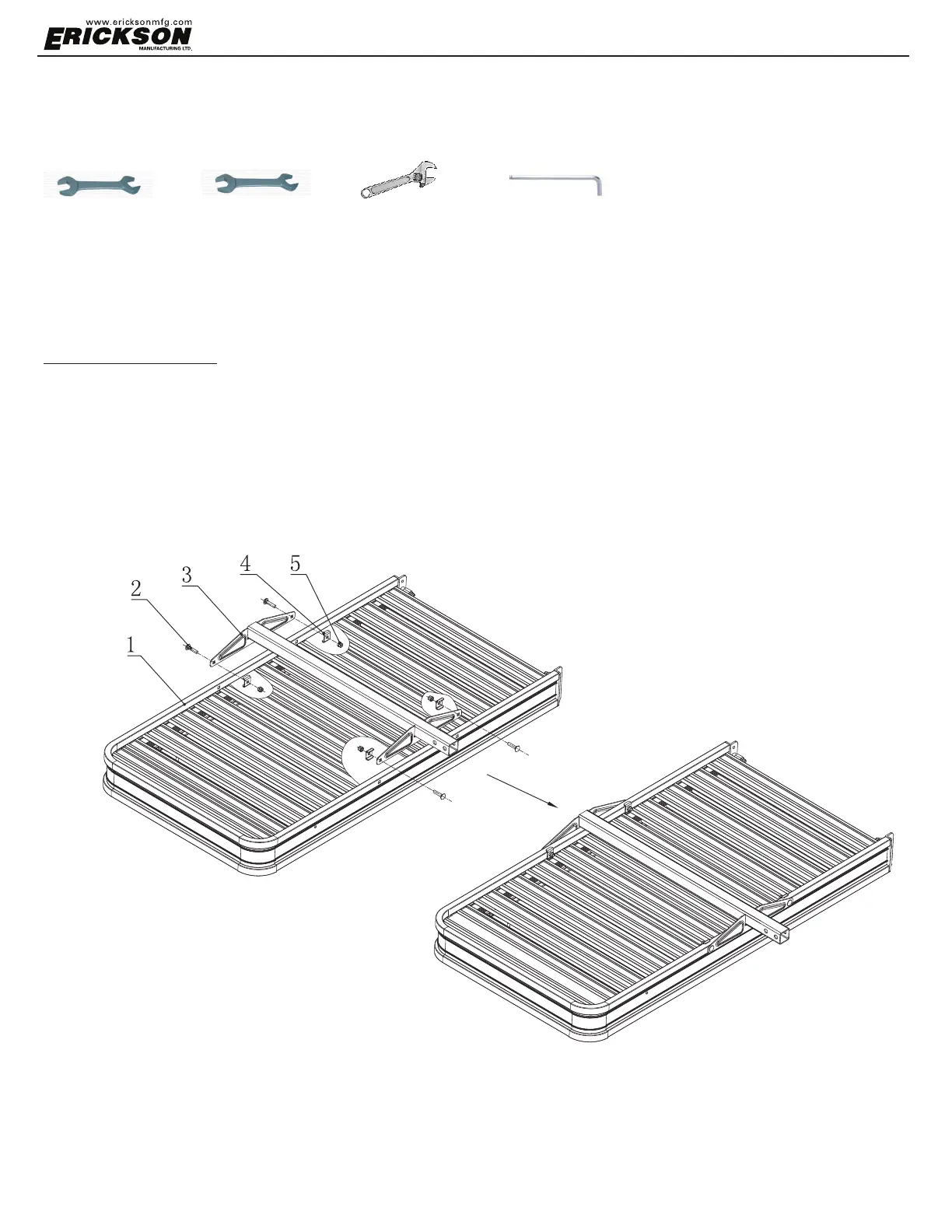

STEP 1 Place carrier（#1（on a flat（secure work area able to support weight of carrier. Fasten support
bracket（#3（to carrier underside, align the square hole and use M10 carriage bolt（#2（ through carrier,
support bracket（#3（and U clamp（#4（（tighten with an M10 lock nut（#5（. See FIG 1.
Tools Needed:
Open Wrench (1 pc.) Open Wrench (1 pc.) Adjustable Wrench (1 pc.) Hex Key (1 pc.)
Size=24mm Size=16mm Size = 30mm Size=6mm
FIG 1
