Item no: 07494

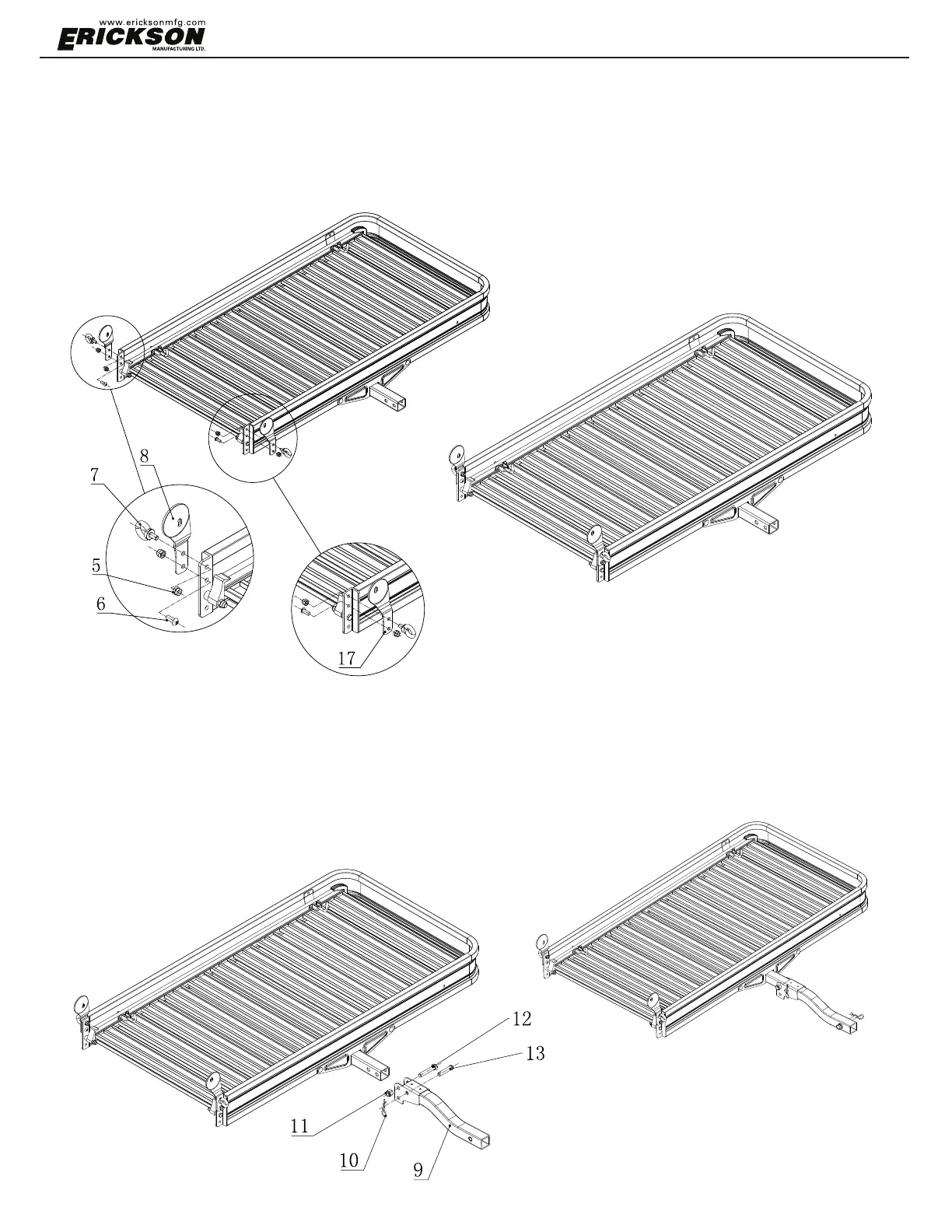

STEP 2 Rotate the carrier 180 degree, align left spoon-shaped mounted plate（#8（with the two holes
on L-type corner of the carrier, tighten with lifting bolt（#7（（M10 Hexagon socket button head screws（#6
（（M10 lock nut（#5（. Repeat the same step with right spoon-shaped mounted plate（#17（, tighten with
lifting bolt（#7（（M10 Hexagon socket button head screws（#6（（M10 lock nut（#5（for right side. See FIG 2.
STEP 3 Install folding bar(#9), align the holes and tighten with M16 bolt (#12) M16 lock nut (#11),
5/8” pin （#13（and clip（#10（are used for vertical position, See FIG 3
FIG 2
FIG 3
