Item no: 07494

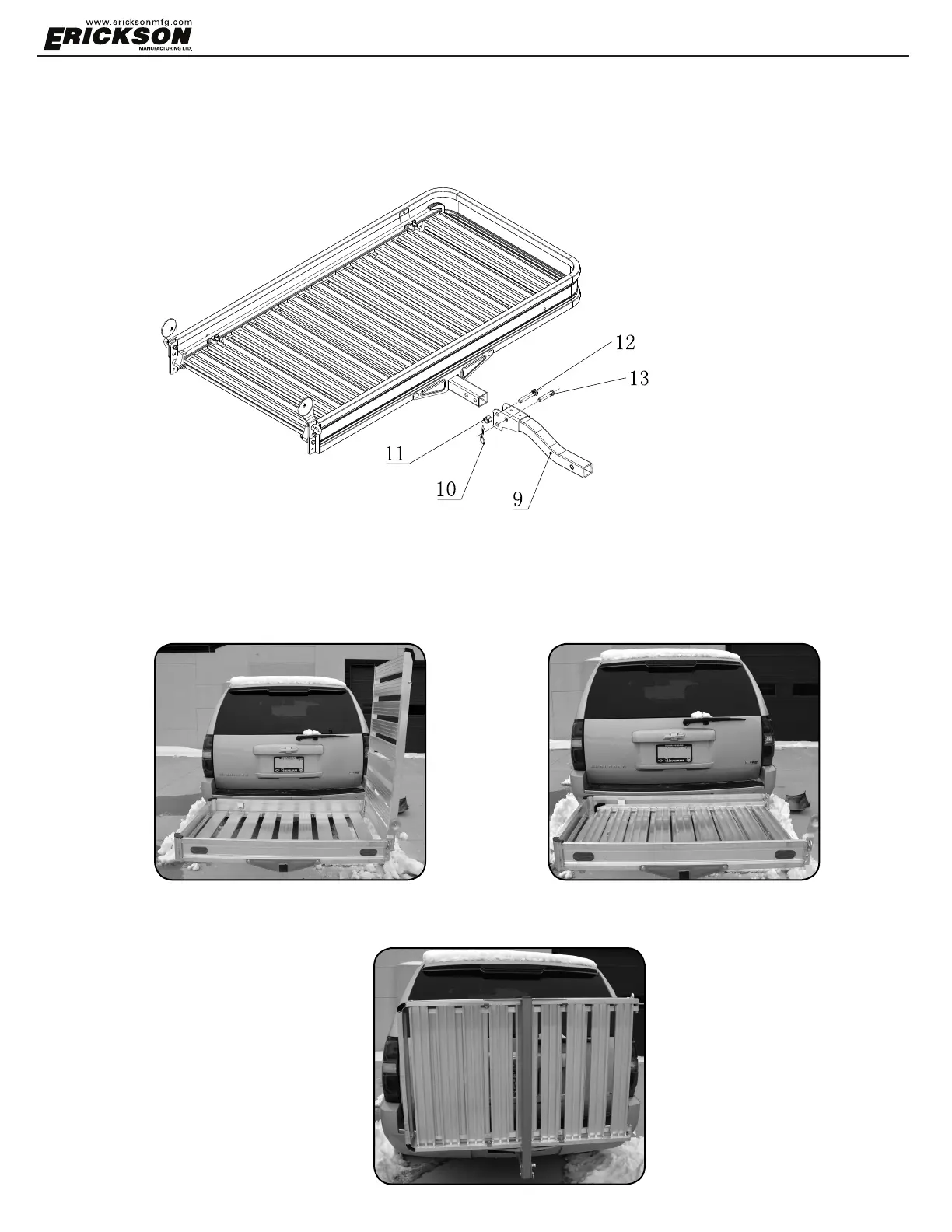

STEP 4 Insert folding bar(#9) into receiver bar (not included), tighten with M16 bolt（#14（, M16 flat
washer（#16（, M16 spring washer（#15（and secure in place with （#10（. See FIG 4.
FIG 4
Ramp Folds up Ramp Folds down and into carrier
Carrier Folds up against the vehicle
