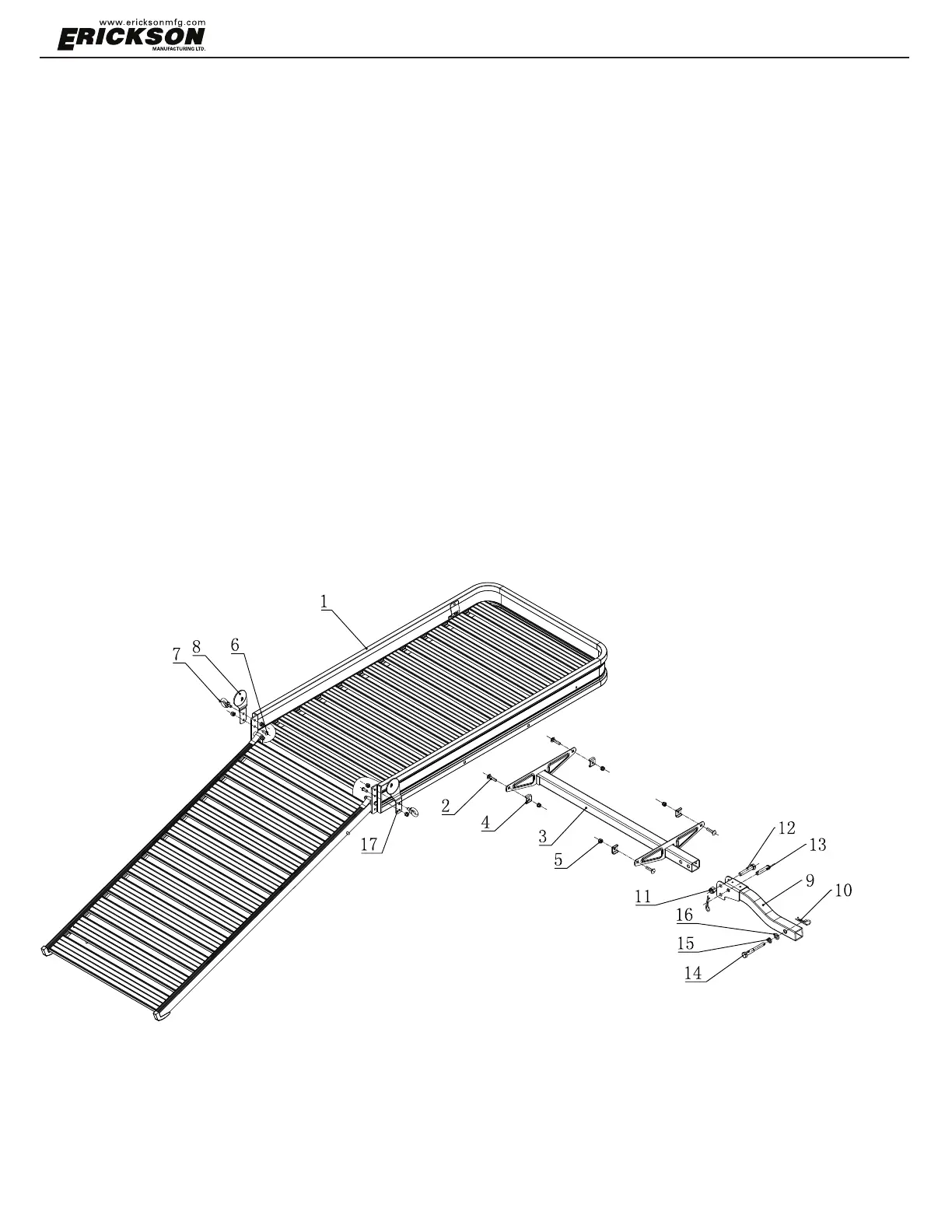

Erickson 07494 - Parts List and Diagram; Component Identification

Item no: 07494
Ramp Folds down and into carrier
Part# Description Q’ty
1 Carrier 1
2 M10 carriage bolt 4
3 Support bracket 1
4 U clamp 4
5 M10 lock nut 7
6 M10 hexagon socket button head screw 1
7 Lifting bolt 2
8 Spoon-shaped mounted plate 1
9 Folding bar 1
10 Safety Pin 2
11 M16 lock nut 1
12 M16 bolt 1
13 5/8”locking bolt 1
14 M16 bolt 1
15 M16 spring washer 1
16 M16 flat washer 1
17 Right spoon-shaped mounted plate 1
