Item no: 07706
M16* 85 Bolt 8x

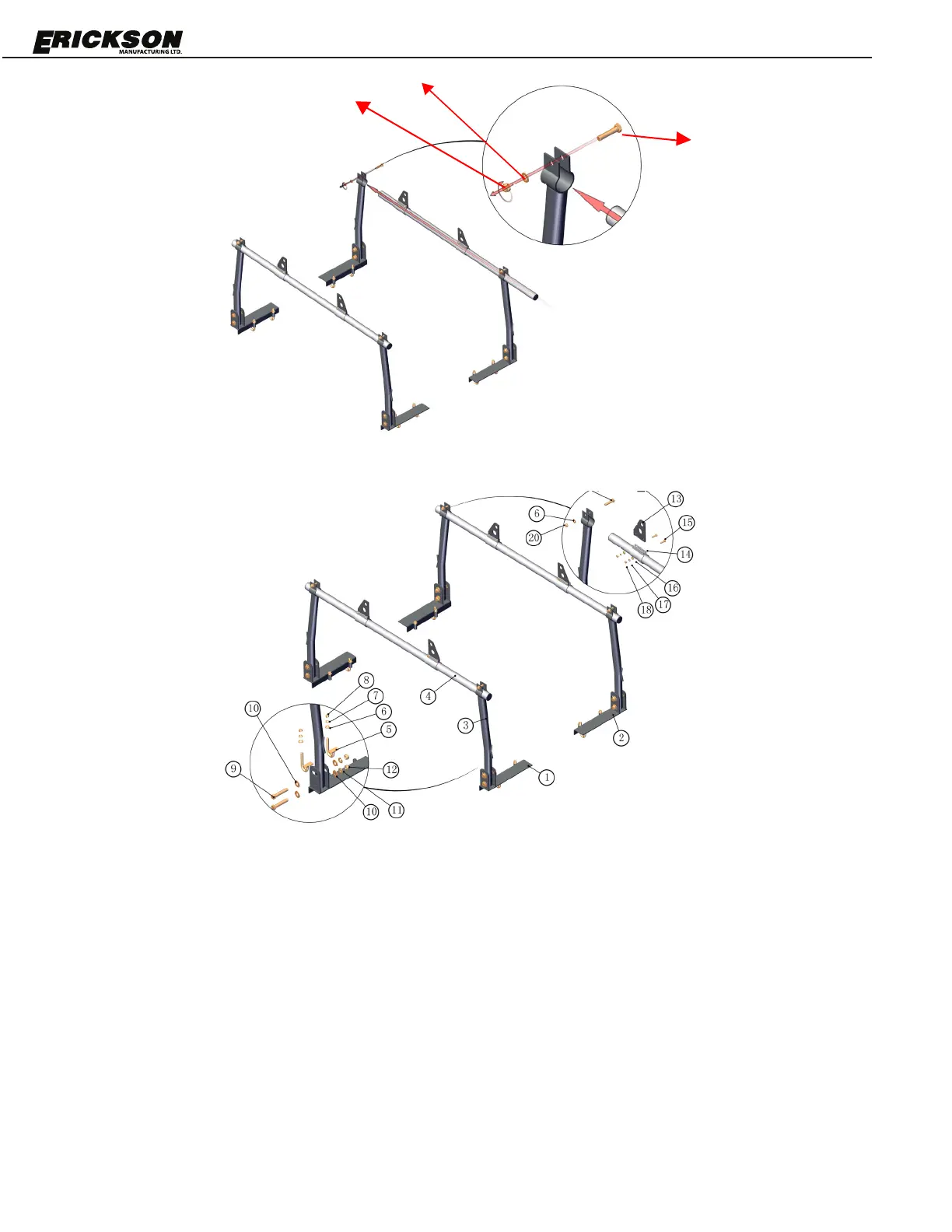

4. Place the assembled cross bar onto the opening tops of each post (3), tighten with M12*55 Bolts” (19),
12 washers (6), and M12 Lock nuts (20).
M12* 55 Bolt 4x
M12 Lock Nut 4x
12 Washer 4x
Item# Description Q’ty Item# Description Q’ty
1 Base A 2 11 16 Spring washer 8
2 Base B 2 12 M16 Lock nut 8
3 Post 4 13 Triangular Stop 4
4 Cross Bar 2 14 Mounting sleeve 4
5 Clamp 8 15 M8*25 Bolt 8
6 12 washer 12 16 8 washer 8
7 12 spring washer 8 17 8 spring washer 8
8 M12 nut 8 18 M8 nut 8
9 M16*85 Bolt 8 19 M12*55 Bolt 4
10 16 Washer 16 20 M12 Lock nut 4
To Next Page
