Item no: 07600
Specifications
Assembly
Rated Capacity
400 lb.
52” x 2
1/2
”
x 7”
52
”
x 50” x 25
1/2
”
Dimensions
(collapsed)
Dimensions
(Installed)

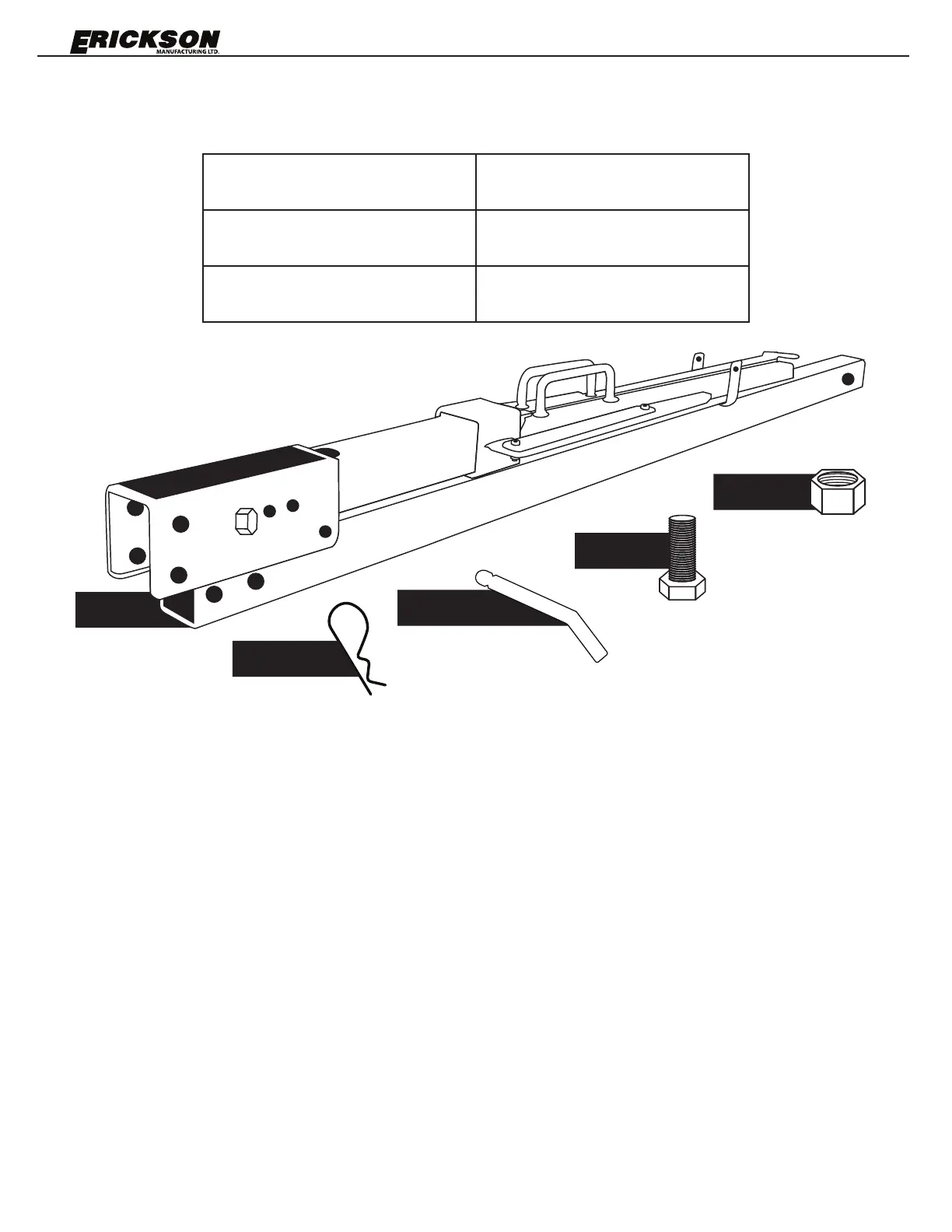

Step 1 Remove Big Bed from all packaging and ensure each part is included, and the apparatus is fully
collapsed as shown. Note the third nut and bolt can be adjusted and is already fastened to the Big Bed.
Step 2 Rotate the reflective panel to be perpendicular to the main body of the Big Bed.
Step 3 Secure two(2) bolts and nuts as shown in the illustration. Fasten with wrench to lock the
reflective panel in place.
Step 4 Remove the locking pin (B then C) from the Big Bed frame. Unfold and spread the apparatus.
Install and secure the locking pin into the upright support as shown.
Step 5 Ensure the apparatus is secure. Tighten loose bolts before use.
Step 6 To stowe the Big Bed, reverse step 4 to collapse. With the locking pin in place, the Big Bed can
be carried via the convenient handles.
2/4
A
x1
B
x1
C
x1
D
x3
E
x3
