Ge11798B
Unit of measurement: mm
200 200
200

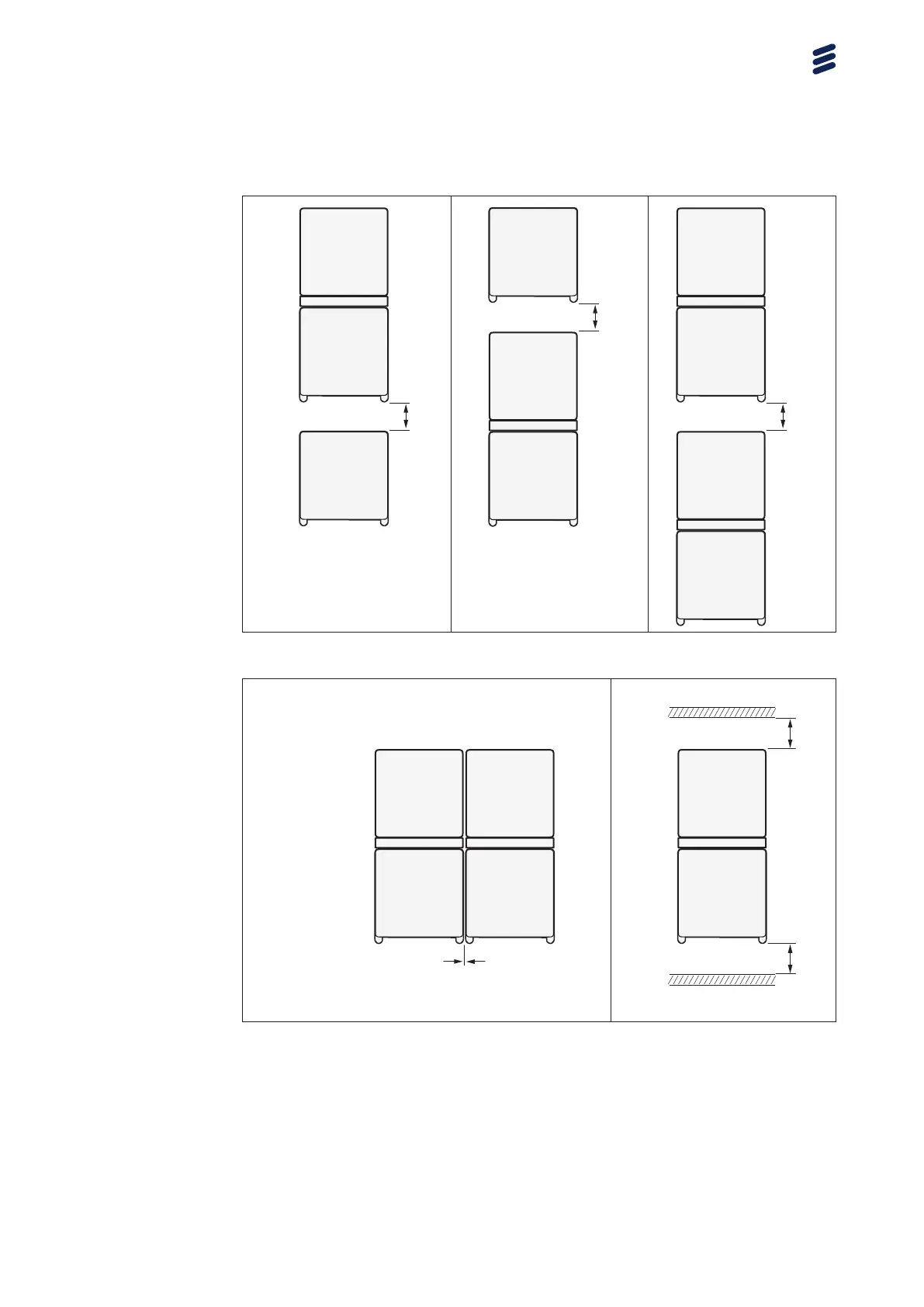

Figure 10 Wall Installation, Dual Radio
Ge11821A
50
50
Unit of measurement: mm
0
Figure 11 Wall Installation, Dual Radio (Further Options)
3.2.2.1 Site Layout
To ensure adequate airflow between the units, allow a minimum of 50 mm free
space between the radio and the roof. Depending on band combination and
Technical Data
180/1551-LZA 701 6001/1 Uen AC | 2017-11-08
15
