3.2.1 Generic Requirements
The radios can be placed directly against each other side by side. To ensure
sufficient working space, allow adequate free space in front of the radio.
3.2.2 Wall Installation
Ge11796A
0
A
50
50
Unit of measurement: mm

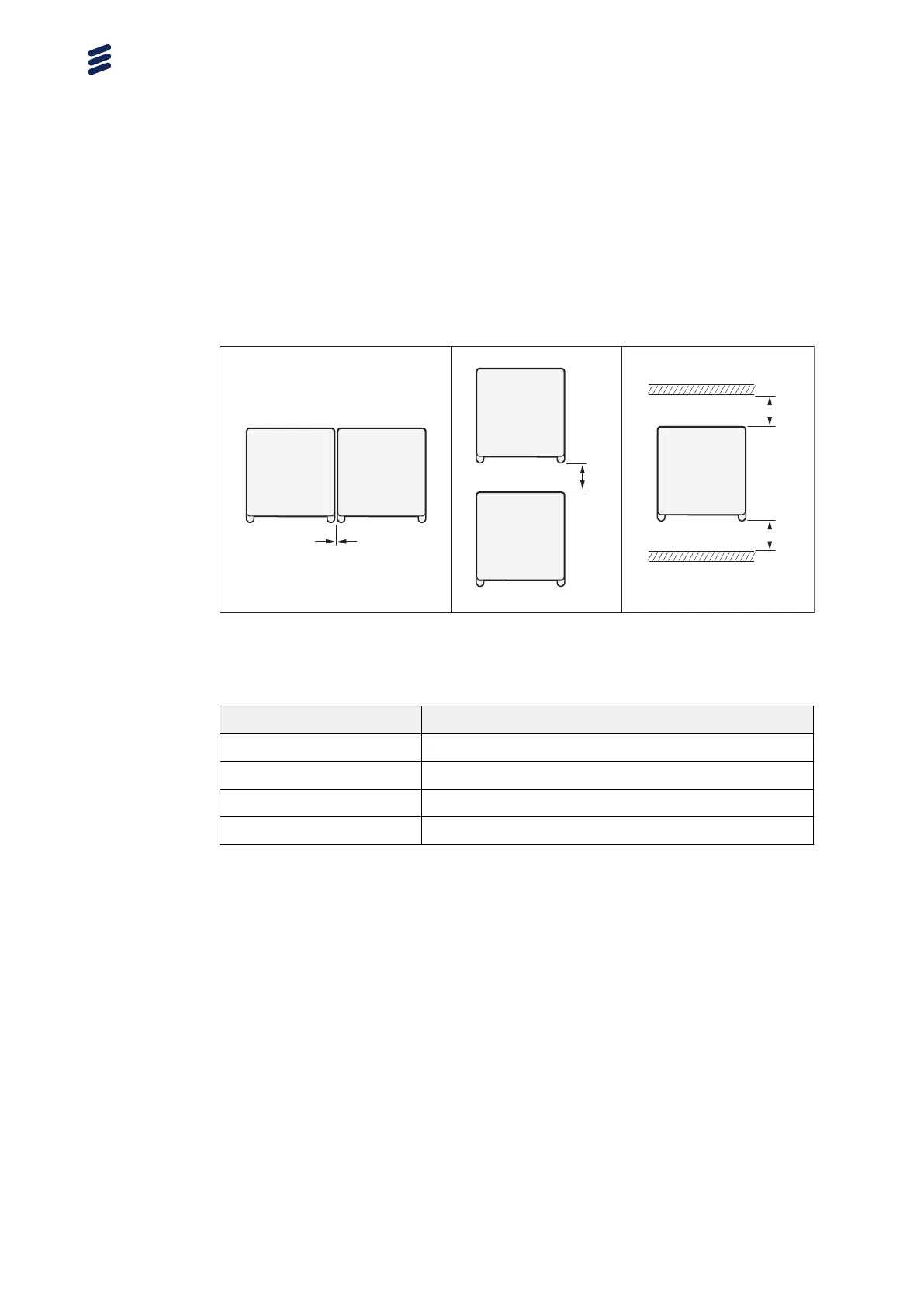

Figure 9 Wall Installation, Single Radio
Table 3 Dimension A, when using the Integrated Antenna
Band Combination Dimension A (mm)
B2 + B8 150
B3 + B5 100
B5 + B66A 100
Other 50
If external antenna is used, A = 50 mm for any band combination.
Radio Description
14
180/1551-LZA 701 6001/1 Uen AC | 2017-11-08
