3.2.5 Rail Installation
Ge7604F
0
50
50
50
Unit of measurement: mm

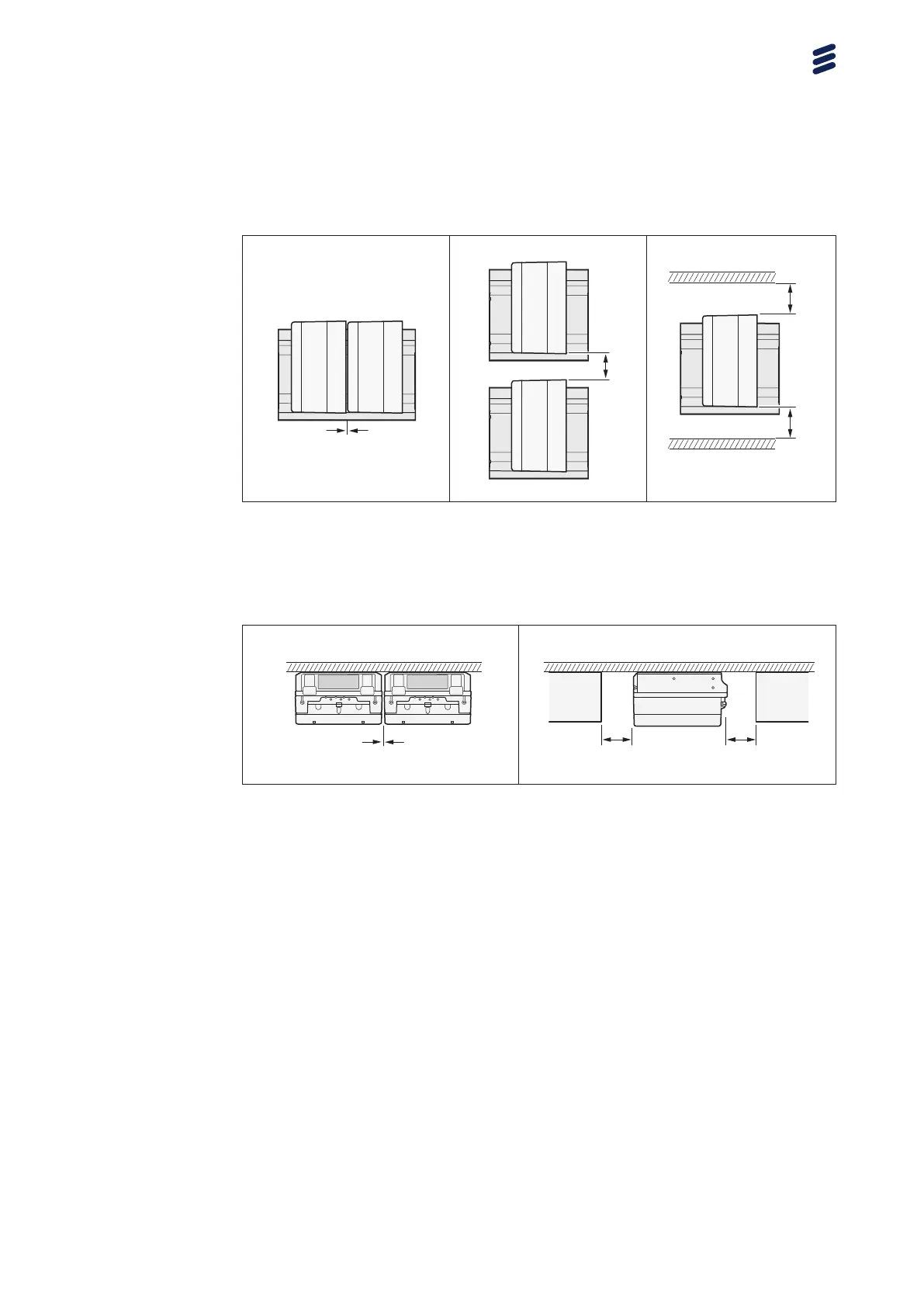

Figure 15 Rail Installation
3.2.6 Ceiling Installation
Ge8756A
0
50 50
Unit of measurement: mm
Figure 16 Ceiling Installation
3.2.6.1
Site Layout
To ensure adequate airflow between the units, allow a minimum of 50 mm free
space between the radio and the wall, and 50 mm between radios installed on
a roof beside one another.
