LED indications of KRD 901 54
On the front of the KRD 901 54 four Light Emitting Diodes (LEDs) are situated. The LEDs
gives indications as described in the Table 1 below.
The LEDs labeled Member and Guest are only used in relation to the pairing
sequence and will be turned off after a short time. Pairing mode lasts 2 minutes
from the pairing button is pressed.
Table 1 Various LED indications on the KRD 901 54
LED state User action State Status Member Guest
Restart - KRD 901 54 is connecting ▌▌▌▌▌
Idle - Idle █████
Traffic - Traffic ongoing
Member Pairing Single push Prepare KRD 901 54 for private pairing
#
) ▌▌▌▌▌
Guest pairing Double push Prepare KRD 901 54 for guest pairing
#
) ▌▌▌▌▌
Pairing Success - █████ █████
Pairing Failure - █████ █████
Fatal Failure
§)
- Failure in KRD 901 54 █████
Reset to Factory
default settings
Push Reset button for
more than 3 seconds
Resets all parameters to factory default
settings
▌▌▌▌▌ ▌▌▌▌▌ ▌▌▌▌▌
███ = Steady; ▌▌= Flashing Fast; = Flashing Slowly
§)
indication is seen briefly and a reboot will begin shortly after
= red
= green
The LED marked “LAN” indicates the activity on the LAN connection by blinking or steady green light.
#
) A quick single push on the “Push button” (see Figure 5) on the rear panel aborts an ongoing pairing
sequence.

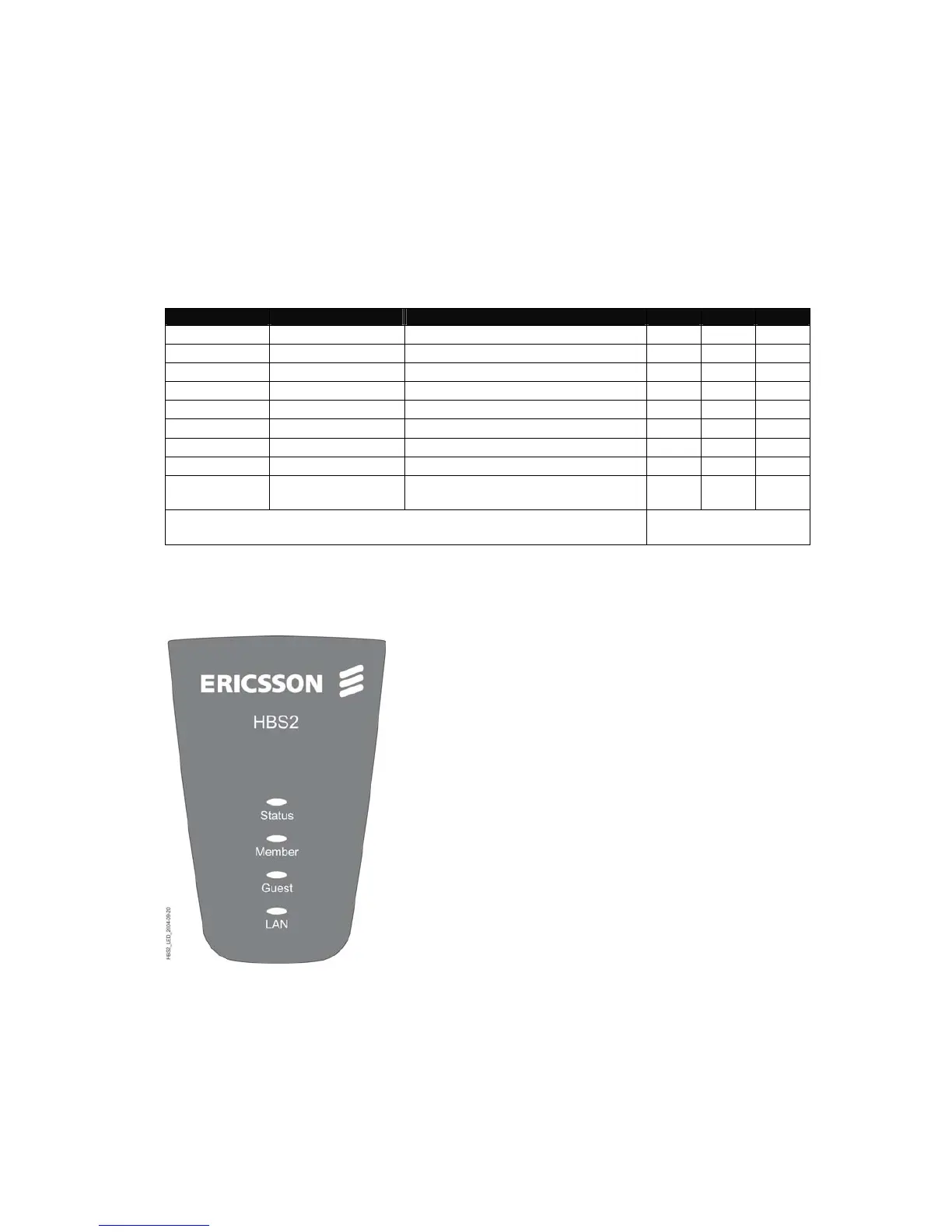

Figure 5 Front panel of the KRD 901 54
5
