Installation Instruction

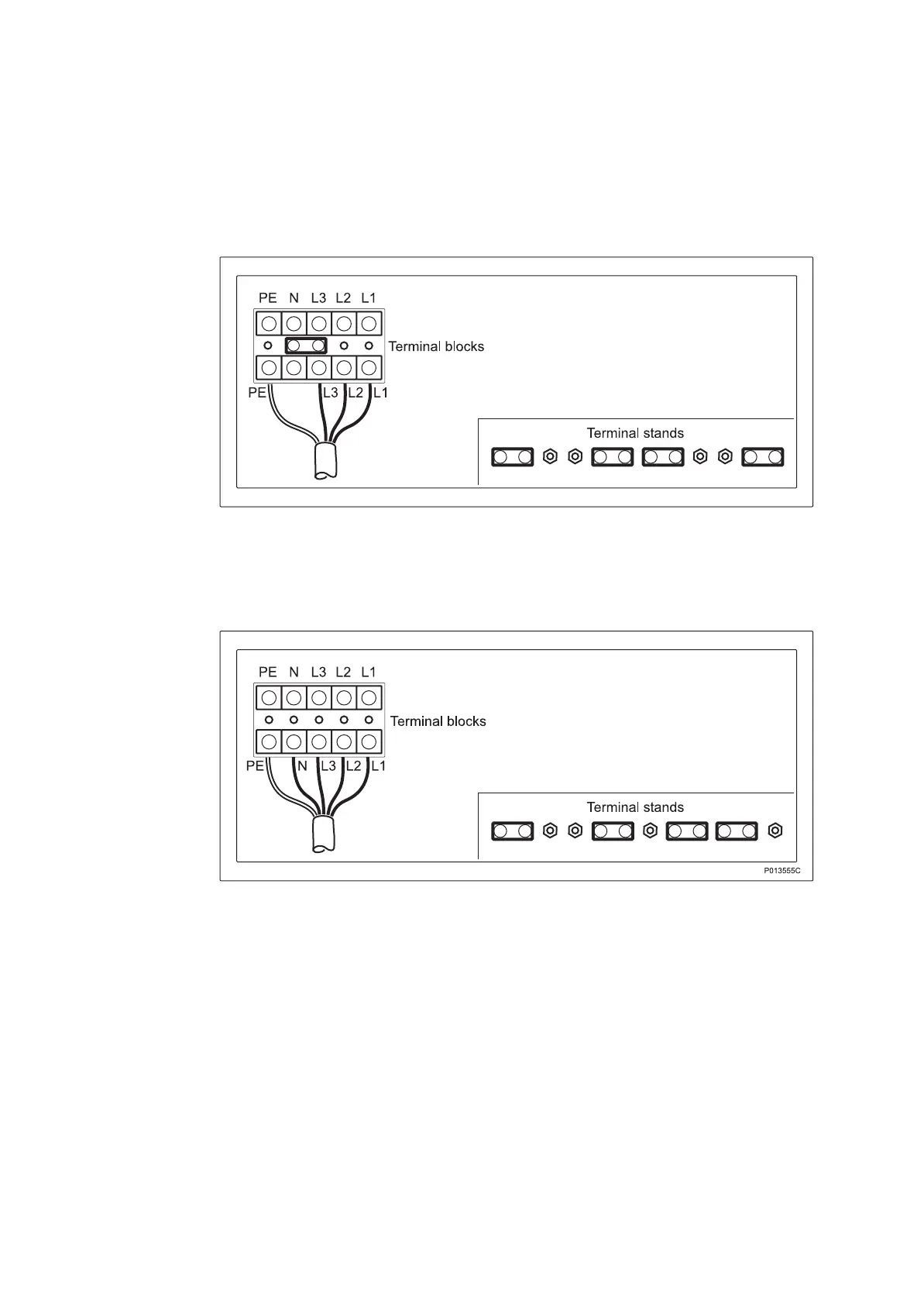

The picture below is valid for BMG 980 26/2 from R-state R1E and on.
P015922A
Figure 23 ACCU R1E
Three-Phase + Neutral + Protective Earth, 200/100 - 240/120 V AC
The picture below is valid for BMG 980 26/2 up to R-state R1D.
Figure 24 ACCU R1D
24
1/1531-COH 109 2073 Uen H 2006-11-06
