Procedure

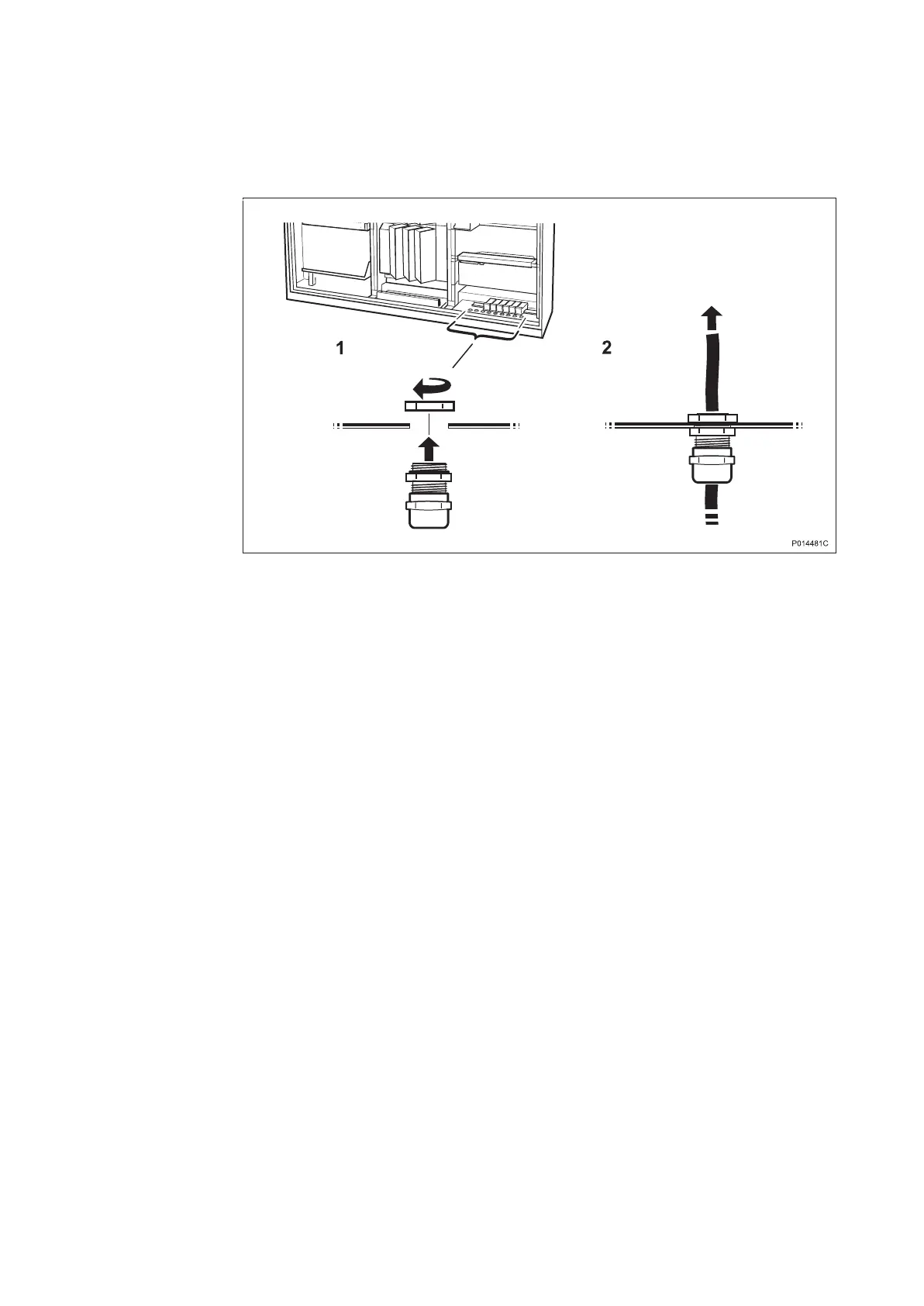

Figure 41 Cable Gland Attachment and Cable Routing
5. Strip 170 mm of the outer layer of insulation from the cable, using a wire
stripper. See figure below.
6. Leave 12 mm of the outer screen.
Note: The cable screen must be earth grounded at the DF.
7. Strip 5 mm of the insulation from the ends of the wires.
