Installation Instruction

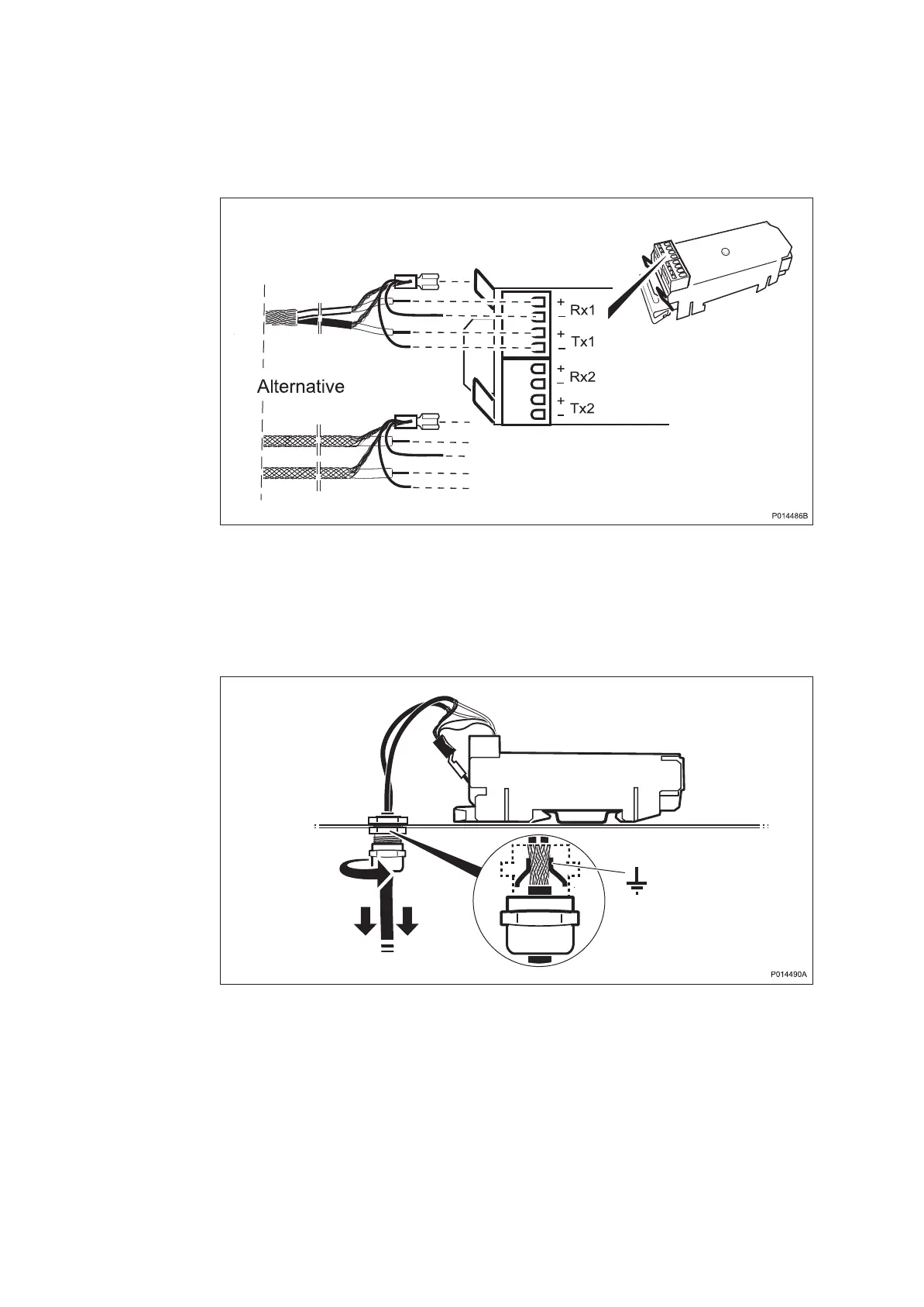

Figure 52 OVP Module Connection Points
13. Pull the cable back through the cable gland and clamp it by screwing the
cable gland together from underneath. See figure below.
Note: Make sure that the outer screen is in contact with the earth
grounding of the cable gland.
Figure 53 Cable Secured
14. Make a note of the cable data on the cover of the OVP Module.
15. Reinsert the six screws in the DF and tighten them with a T30 Torx
screwdriver.
44
1/1531-COH 109 2073 Uen H 2006-11-06
