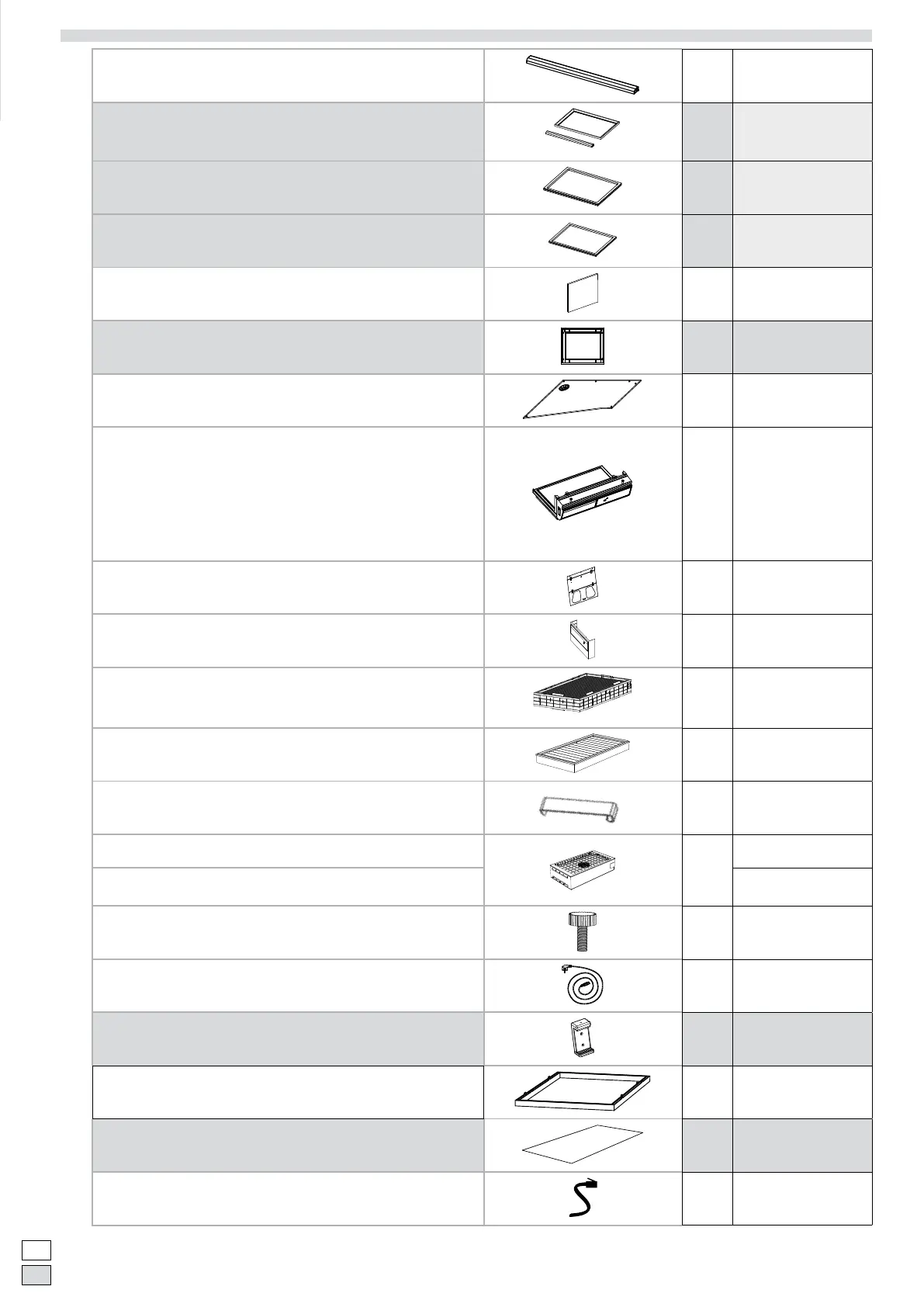

erlab Captair 321 Smart - Detailed Parts List

Parts list / Liste des pièces / Teileliste / Lista de piezas / Elenco delle parti/
A1
Spacing Bar / Barre d’écartement / Verstärkungsleiste / Barra de espaciamiento /
Barra di scartamento /
x1
321= PIDREA603016
391= PIDREA613012
481= PIDREA623012
A2
Work surface with sealed tempered glass retention tray / Plan de travail avec bac de
rétention en verre émaillé jointé / Arbeitsplatte mit Auffangbecken aus abgedichtetem
emailliertem Glas. / Plano de trabajo de cristal securizado con bandeja de retención /
Piano di lavoro con vasca di ritenzione in vetro ceramizzato guarnito
x1
321= IO115020002
391= IO116020002
481= IO121020002
A3
Work surface in stainless steel 304 L / Plan de travail en Inox 304 L / Arbeitsplatte
aus Edelstahl 304 L / Piano de trabajo en acero inoxidable 304 L / Piano di lavoro in
Inox 304 L
x1
321= IO115050002
391= IO116050002
481= IO121050002
A4
Resin work surface / Plan de travail en TRESPA® TOPLAB®PLUS / Arbeitsplatte
TRESPA® TOPLAB®PLUS / Plano de trabajo en TRESPA® TOPLAB®PLUS / Piano
di Lavoro in Trespa TRESPA® TOPLAB®PLUS
x1
321= IO115030002
391= IO116030002
481= IO121030002
B1
Back panel / Panneau arrière / Rückwand / Panel trasero / Pannello posteriore
x1
321= PIDREA603006
391= PIDREA613006
481= PIDREA623006
B2
Transparent back panel / Panneau arrière transparent / Durchsichtige Rückwand /
Panel trasero transparente / Pannello posteriore transparente
x1
321= IO315100002
391= IO316100002
481= IO321100002
C
Side panel / Panneau latéral / Seitenwand / Panel lateral / Pannello laterale
x2
PIDVI03002
D
Filter housing (1) and control panel (2) / Plafond (1) et panneau de contrôle (2) /
Kontrollanzeige(1) (2) / Techo (1) y panel de control (2) / Softo (1) e pannello di
controllo(2)
x1
(1):
321= Z3CEILINGSMART321
391= Z3CEILINGSMART391
481= Z3CEILINGSMART481
(2) = Z3MCSMART1
(1+2):
321= K60XXX
391= K61XXX
481= K62XXX
E
Acrylic front panel / Façade acrylique / Acrylfassade / Panel frontal acrílico / Faccia-
ta in acrilico
x1
321= PIDVISMART321
391= PIDVISMART391
481= PIDVISMART481
F
Side cover / Carter / Gehäuse / Cárter / Coperchio
x2
PIDM58552
G1
Carbon lter / Filtre carbone / Filtro carbone /
*
H11074101 (AS)
H11074201 (BE+)
H11074401 (F)
H11074301 (K)
G2
HEPA H14 - ULPA U16 Filter / Filtre HEPA H14 - ULPA U16 / Filtro HEPA H14 - ULPA
U16
*
H11074031 (HEPA H14)
H11074061 (ULPA U16)
G3
Hook HEPA-ULPA Filter / Crochet Filtre HEPA - ULPA / HEPA -ULPA Filter Befesti-
gungsstangen / Gancho ltro HEPA - ULPA / Ganci ltro HEPA-ULPA
x4
2P: WREQT0019
1C1P: WREQT0019
2C1P : WREQT0018
1P1C1P : WREQT0019
H1
Fan box / Boîtier de ventilation / Ventilatorengehäuse / Módulo ventilador / Cassone
di ventilazione
x1
Z3FM004
H2
Fan box + grid / Boîtier de ventilation + grille / Ventilatorengehäuse + Gitter / Módulo
ventilador + rejilla/ Cassone di ventilazione + griglia -
*
Z3FM004 + PIDMS8522
I
Nylon screws / Vis nylon / Nylonschraube / Tornillo nailon / Viti nylon
x15
PIDB08547
J
Power cable / Cable d’alimentation+ 2 colliers / Stromkabel / Cable de alimentación /
Cavo di alimentazione
x2
EU = PIDEL076
USA = PIDEL080
GB = PIDEL090
CH = PIDEL106
K
Smartphone Support / Support smartphone / Smartphone -Support / Soporte Smart-
phone / Supporto smartphone
x1
PIDDI8537
L
HEPA lter seal frame / Cadre joint pour ltre HEPA / Abdichtungsrahmen für He-
pa-Filter / Cuadro junta para ltro HEPA / Quadro giuntivo per ltro HEPA
x1
PIDDI8532
P
Pre-lter / Pré-ltre / Vorlter / Preltro / preltro
x1
I1015000001
Q
RJ45 cable / Câble RJ45 / RJ45-Kabel / cable RJ45 / Cavo RJ45
x1
WEL8603
*
See p.8 / Voir p.8 / Siehe S.8 /
Consulte p.8 / Vedi p.8
