Installation, Finishing touches

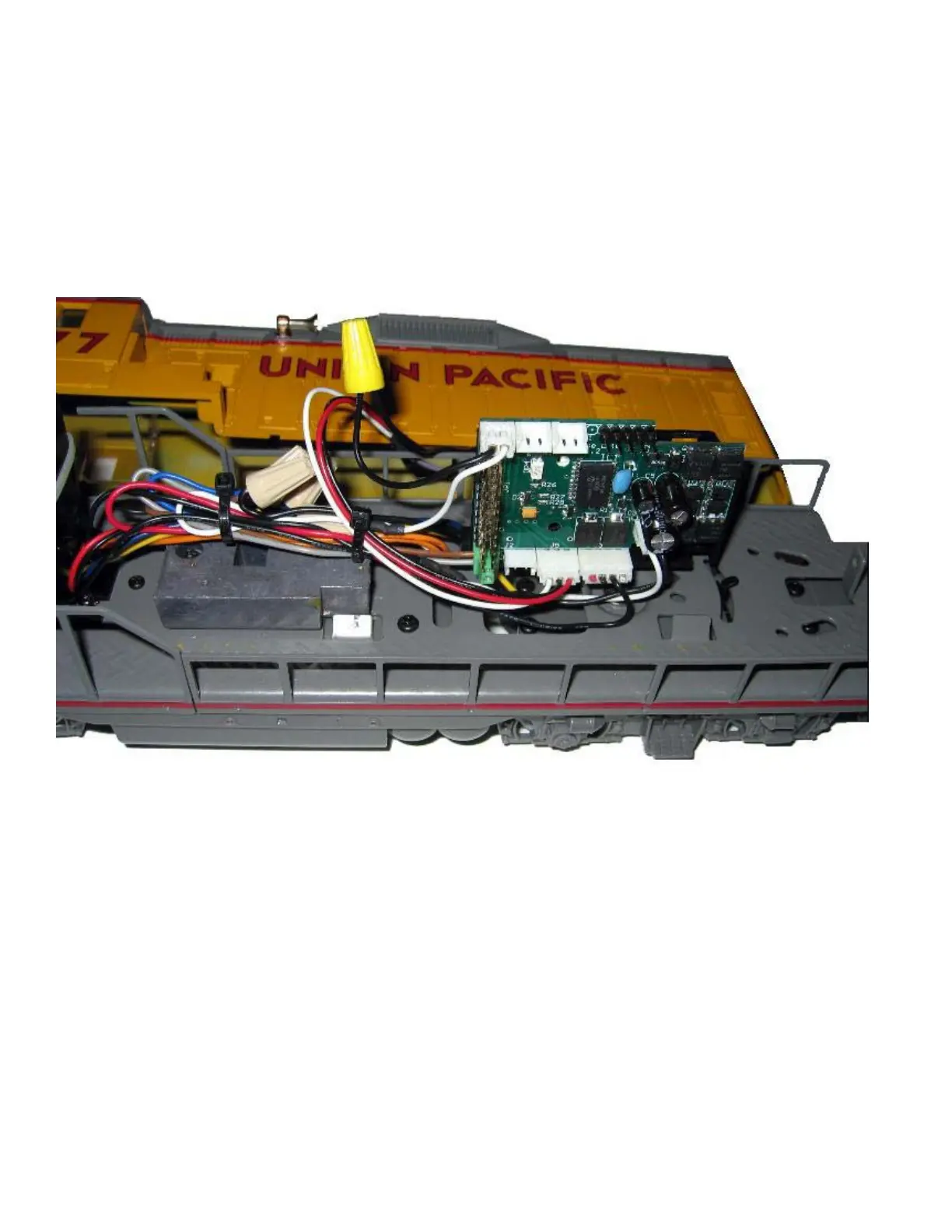

• The picture below shows the finished installation. A wire nut (not supplied) was used to
connect a shortened “Antenna” connection to a wire hot melt glued in the shell roof. This
allows the Shell to be removed easily, since the lighting can be removed by unplugging
the 3-pin lamp connector.
R2LC Installation
• Double check all wiring, then install the R2LC receiver board onto the Cruise
Commander Lite board. Use caution not to miss by one pin pair to either side, as this
will certainly damage the components on both cards.
8
