6

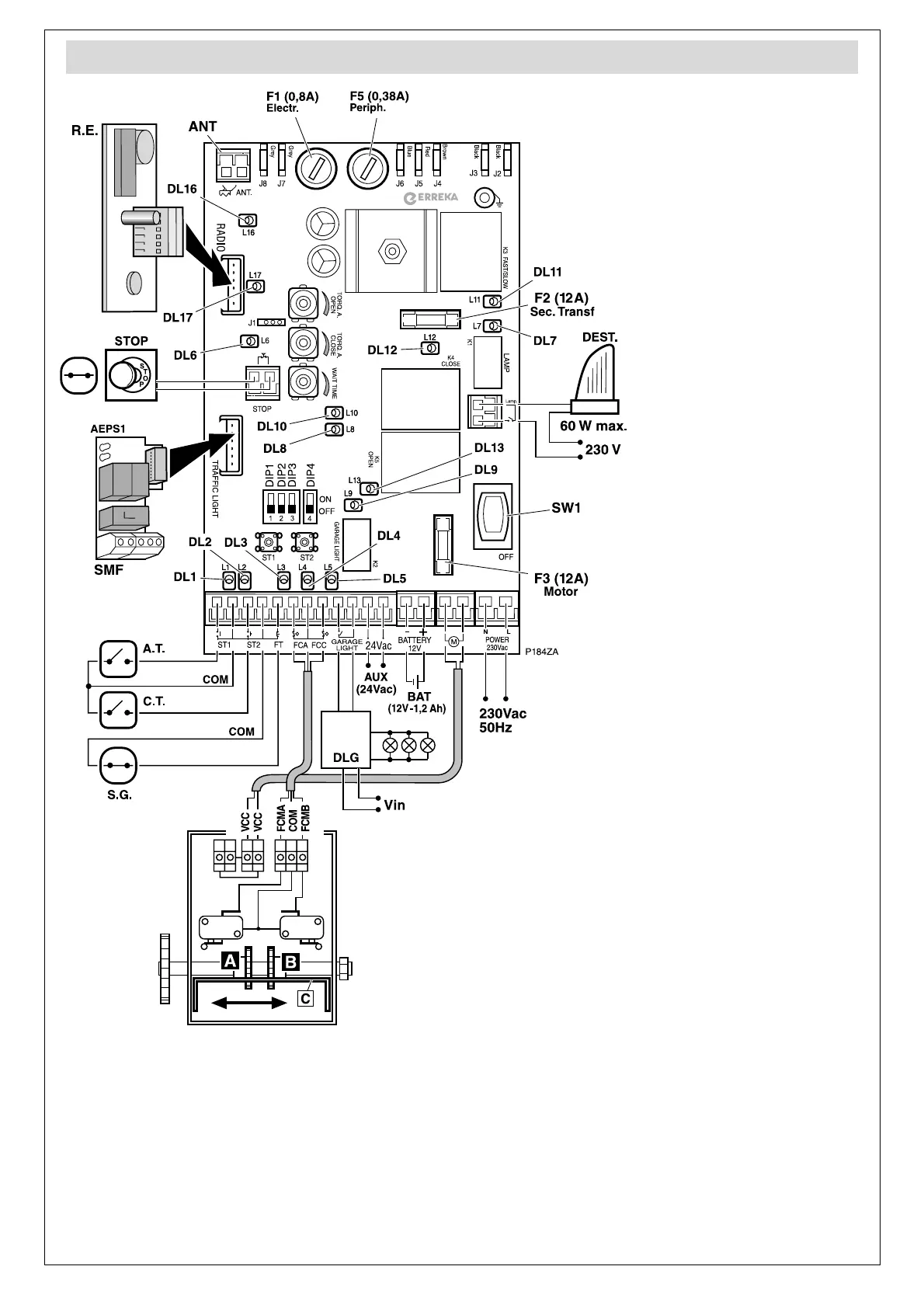

General connections
Check turning direction using the mini-pushbuttons
ST1 (open) and ST2 (close), having first placed DIP1,
DIP2 and DIP3 in OFF. If the turning direction is not
correct, interchange the cables connected to the cable
connectors
|M (VCC).
Ensure the limit switches are correctly connected
for opening and closing. Carry out the check using the
mini-pushbuttons ST1 (open) and ST2 (close), having
previously placed DIP1, DIP2 and DIP3 in OFF.
VCD Vcd geared motor connection
VCD Vcd geared motor connection
FCMA A operation limit switch connection
COM Limit switches common connection
FCMB B operation limit switch connection
FCA Opening limit switch connection
FCC Closing limit switch connection
Adjust the limit switches by turning wheels
A
and
B
, having previously removed the guide [C].
DLG Garage lights timer device. The device is activated
by way of the voltage-free contact (NA) in the
control panel, which closes briefly at the start of
the operation. Vin is DLG power supply.
R.E. Plug-in receiver. It is possible to use a
two channel Roller receiver, such as
the IRRE2-250. The first channel acts
on ST1 and the second on ST2.
LEDs and fuses:
SW1 General power switch
F1 Electronic fuse (0.8A)
F2 Transformer secondary
fuse (12A)
F3 Motor fuse (12A)
F5 Peripheral fuse (0.38A)
DL1 ST1 Opening and
closing key signal (NA)
DL2 ST2 Closing key signal
(NA)
DL3 Photocell signal (NC)
DL4 Opening limit switch
signal (NC)
DL5 Closing limit switch
signal (NC)
DL6 STOP signal (NC)
DL7 Flashing light relay
DL8 Door open
DL9 Garage light relay
DL10 Stop due to obstacle
DL11 Fast/slow operation
relay
DL12 Closing relay
DL13 Opening relay
DL16 230V Power supply
DL17 Microcontroller supply
