ERS ECH Series - Page 73

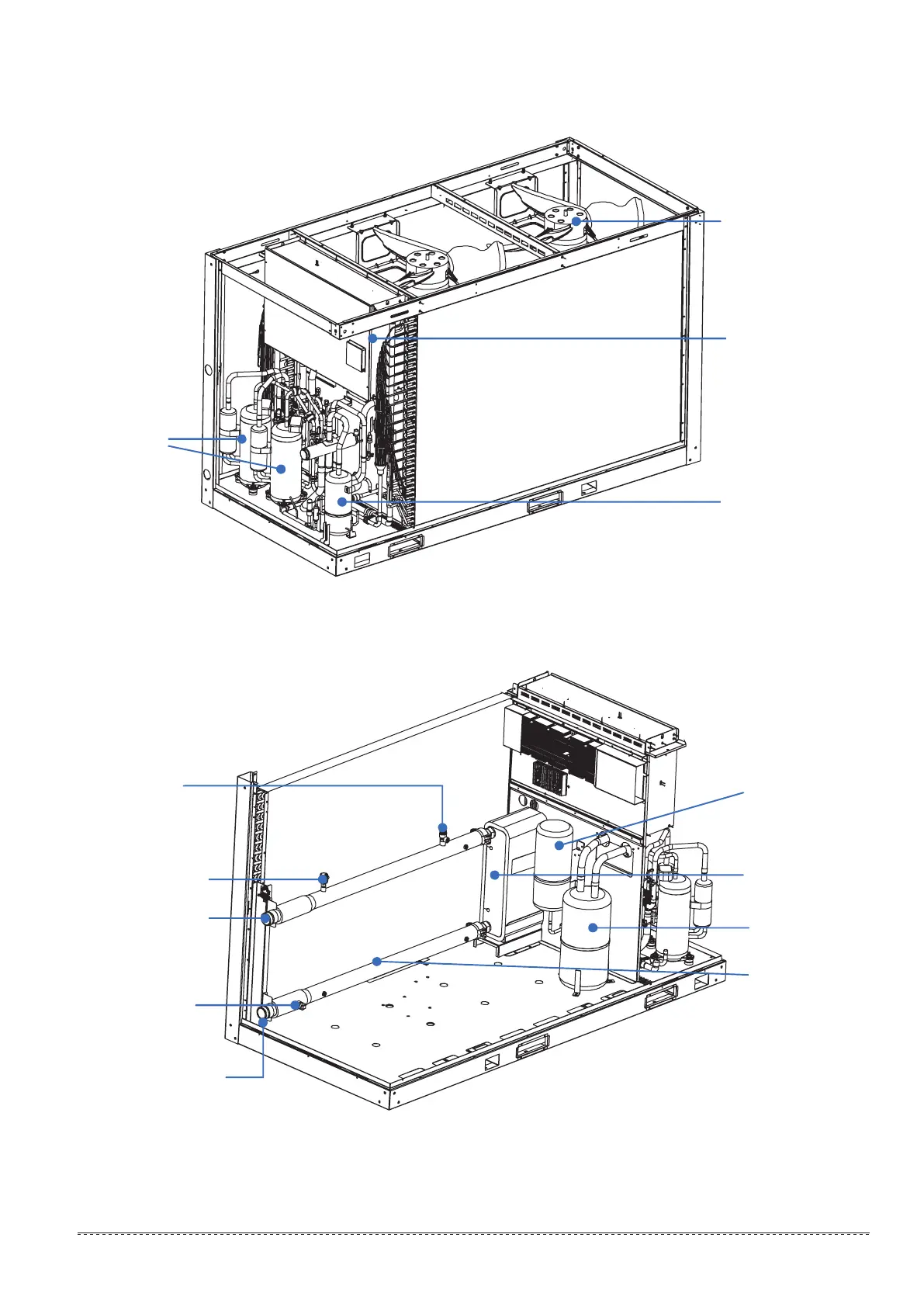

Fig.8-11 ECH060N front view
Fig.8-10 ECH060N rear view
Fan motor
Electric
control box
DC inverter
compressor
Oil separator
Accumulator
liquid-vapor separator
Water side
heat exchanger
Water flow
switch
Air purge valve
Safety valve
Water inlet pipe
Water outlet pipe
Manual water
drain valve
8.3.2 main components of ECH060N
