POS80 Thermal POS printer User’s manual
6

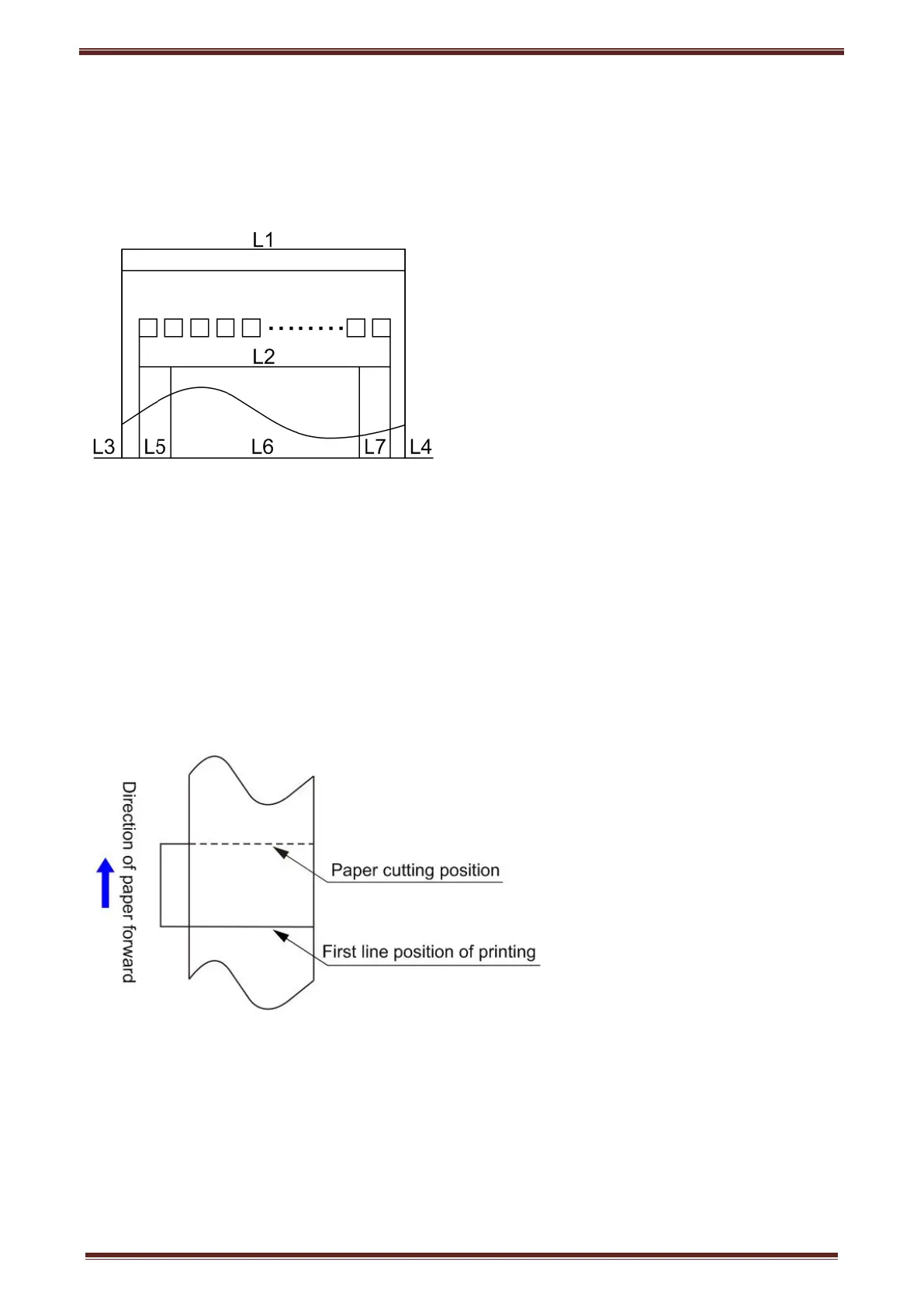

2.3 Printing and paper cutting position
2.3.1 Printing position
L1-Paper storehouse’s width: 82±0.5mm
L2-Effective printing width: 80mm
L3-Distance between print head to paper storehouse’s left edge (fixed width): 3±0.3mm
L4-Distance between print head to paper storehouse’s right edge (fixed width): 3±0.3mm
L5-Left margin: Default is 4mm
L6-Printing area width: it is set by commands (refer to programming manual). Default is 72mm.
L7-Right margin: Default is 4mm.
2.3.2 Paper cutting position
The distance between print head to cutter: 12.5mm
