5.4 Mains power supply
Make sure that the welding power source is
connected to the correct supply voltage and that it
is protected by the correct fuse rating.
A protective earth connection must be made in
accordance with regulations.

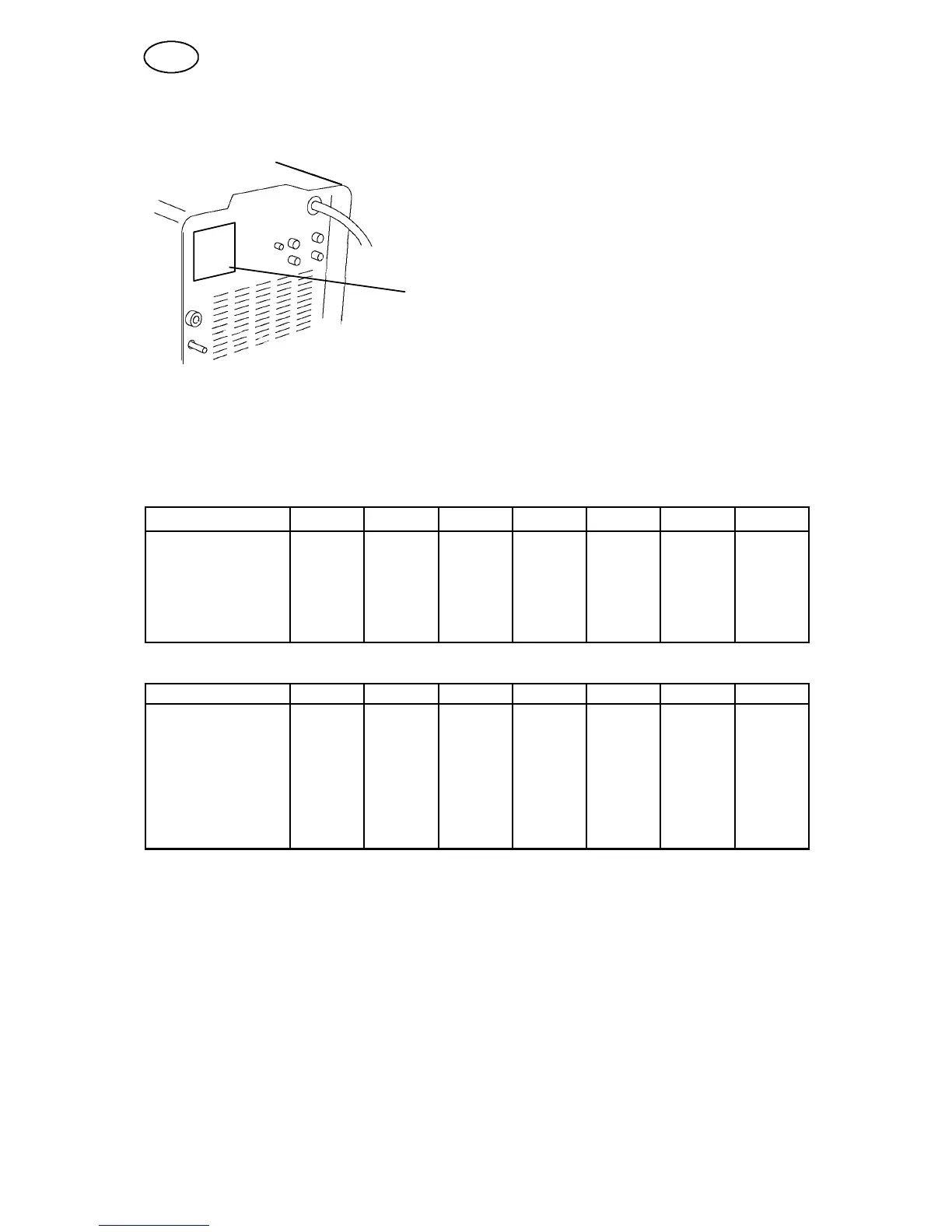

Rating plate with supply connection data
Recommend ed fuse sizes an d minimum cable areas
AristoMig 320 3~50 Hz 3~50 Hz 3~50 Hz 3~60 Hz 3~60 Hz 3~60 Hz 3~60 Hz
Mains voltage V 230 400 500 208 230 460 475
Current A 100%
60%
27
37
16
21
13
15
30
38
27
34.5
13.5
17
13
16.5
Mains cable area 4G10 4G4 4G4 4G10 4G10 4G4 4G4
Fuse anti--surge A 25 16 16 35 25 16 16
AristoMig 450 3~50 Hz 3~50 Hz 3~50 Hz 3~60 Hz 3~60 Hz 3~60 Hz 3~60 Hz
Mains voltage V
230 400 500 208 230 460 475
Current A 100% 40 24.5 18.5 45 41 20 19.5
60% 51 30.5 23 57.5 51.5 25 24.5
45% 55.5 34 25 62 56.5 27.5 26.5
Mains cable area 4G10 4G4 4G4 4G10 4G10 4G4 4G4
Fuse anti--surge A 50 20 20 50 50 20 20
Note! The mains cable areas and fuse sizes as shown above are in accordance with Swedish
regulations. Use the welding power source in accordance with the relevant national regulations.
GB
