-9-
hga7d2ea

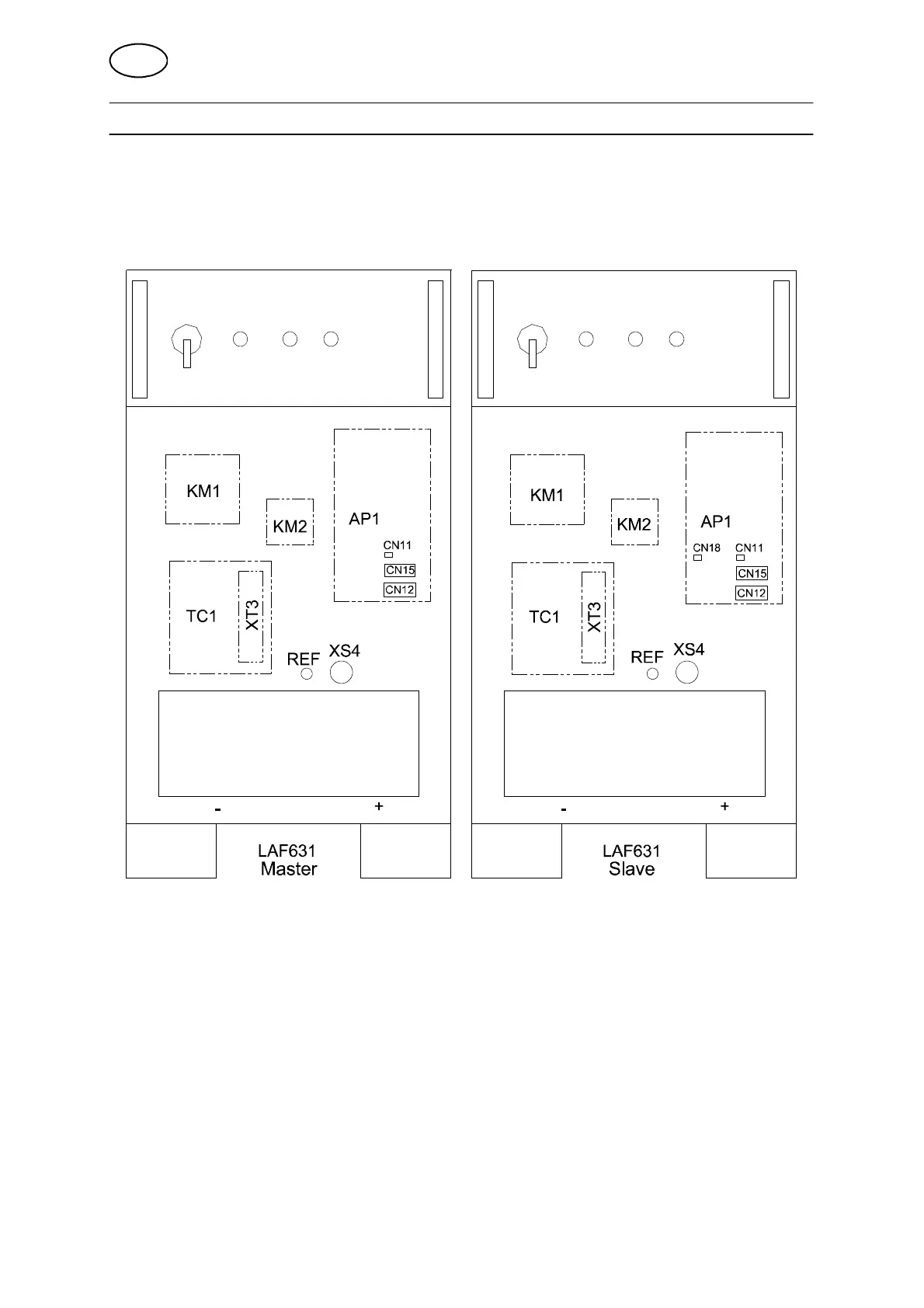

3 Location Drawing
3.1 Location drawing - Welding Power Source LAF 631
GB

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the ESAB LAF Series and is the answer not in the manual?

ESAB LAF Series Specifications

General IconGeneral
Duty Cycle100% at rated current (depending on model)
Input Frequency50/60 Hz
Current Range30-500 A
Input Voltage380-415V/440-460V
Output Current Range30-500 A
Efficiency85%
CoolingWater-cooled (depending on model)
Power Factor0.93
