ESAB LKB 320 - Spare Parts Identification; General Components List

Reservdelsförteckning Reservedelsfortegnelse Reservedelsliste Varaosa-
luettelo Spare p arts list Ersatzteilliste Liste d e pièces détachées
Reserveonderdelenlijst Lista de repuestos Elenco ricambi Lista de peças
sobressalentes Ðßíáêáò áíôáëëáêôéêþí ìåñþí ÐÉíáÊ ÁÓ áíôáë ëáêôéêÙí ìå ñ Ùí
-- 1 0 3 --bc14s12a
Ordering No.
455 470--880 LKB 265 400--415V 3~ 50Hz
455 470--881 LKB 265 230/400--415/500 3~ 50Hz: 230/440V 3~ 60Hz
455 480--880 LKB 320 400--415V 3~ 50Hz
455 480--881 LKB 320 230/400--415/500V 3~ 50Hz: 230/440--460V 3~ 60Hz
c=component designation in the circuit diagram

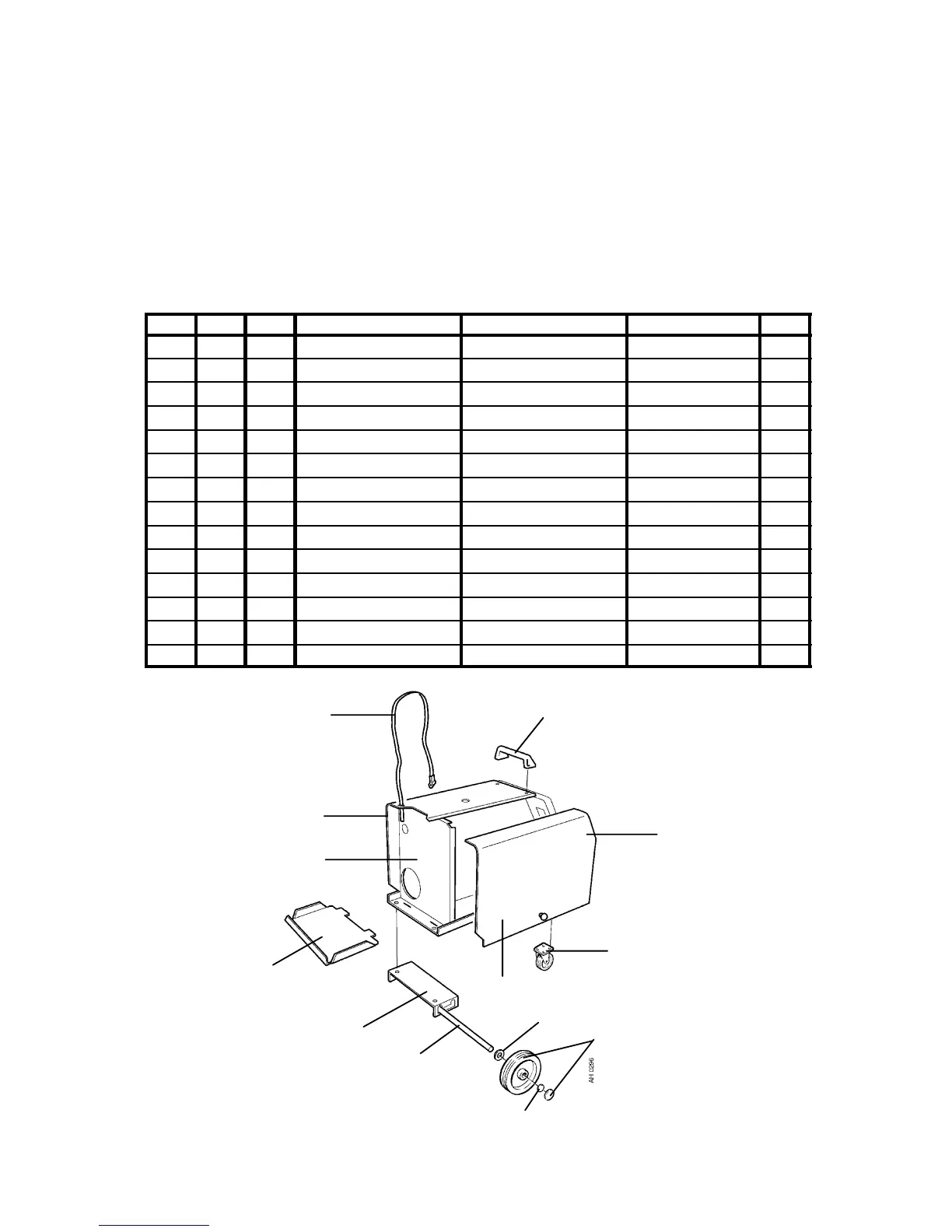

Item 265 320 Ord.No. Denomination Remark c
101 1 1 368 265--002 Securing strap
102 1 1 455 833--001 Handle
103 1 1 458 004--001 Cover
104 1 1 455 474--001 Rear panel
105 1 1 455 476--001 Base plate
106 1 1 455 986--001 Shelf
107 1 1 455 814--001 Clamp
108 1 1 456 031--002 Side panel
109 2 2 455 467--001 Castor wheel ø 100 mm
110 1 1 469 516--003 Shaft
111 2 2 Washer ø 36/21x3 mm
112 2 2 455 457--001 Wheel ø 200 mm
113 2 2 192 859--126 Locking washer
114 1 1 456 031-- 004 Cover
101
102
103,114
104
105
106
107
108
109
110
111
112
113
