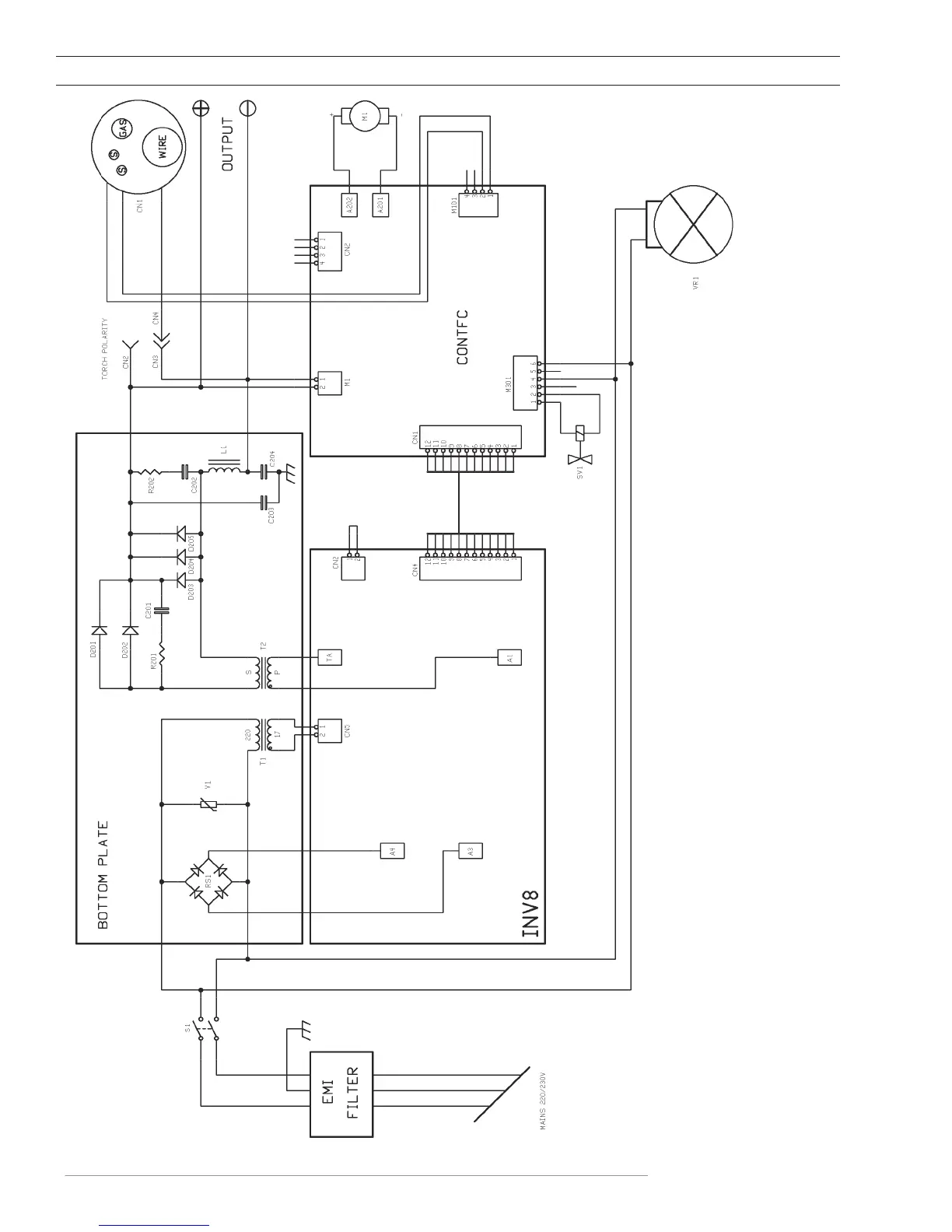

SECTION 5 MAINTENANCE
EMI FILTER (0558002746)
S1 - ROCKER SWITCH 2X16A 250V (0558002747)
RS1 - RECTIFIER 600V 35A (0558002730)
INV8 - INVERTER PCB (0558002716)
CONTFC - CONTROL PCB (0558002717)
BOTTOM PLATE - BOTTOM PLATE 140 160 MET (0558002708)
T1 - TRANSFORMER 230V 17V 15VA (0558002732)
T2 - MAIN TRANSFORMER 10/3 (0558002733)
L1 - COIL 50uH (0558002729)
R201 - R202 - RESISTORS 10R 3W
C201 - C202 - CAPACITORS 4n7 400V
C203 - C204 - CAPACITORS 1000pF 250VAC
D201 - D202 - D203 - D204 - D205 - DIODES 60A 200V
CN1 - CENTRALIZED MIG TORCH CONNECTOR (0558002709)
CN2 - CN3 - CHANGE POLARITY SOCKETS
CN4 - CHANGE POLARITY PLUG
VR1 - FAN 120 X 120 220/230V 50/60Hz (0558002738)
V1 - VARISTOR 275V (0558002731)
SV1 - SOLENOID VALVE 230V (0558002719)
M1 - WIRE MOTOR 17V (0558002710)
