Esatto EHPD80 - Your Dryer Overview; External Condensate Drain Setup

User Manual
8
NOTE!
The images in this user manual are for reference only. Your appliance may appear dierently.
ACCESSORIES
The following parts are necessary
if you wish to use the drain hose to
drain the water externally. Please
follow the instructions below to do this.

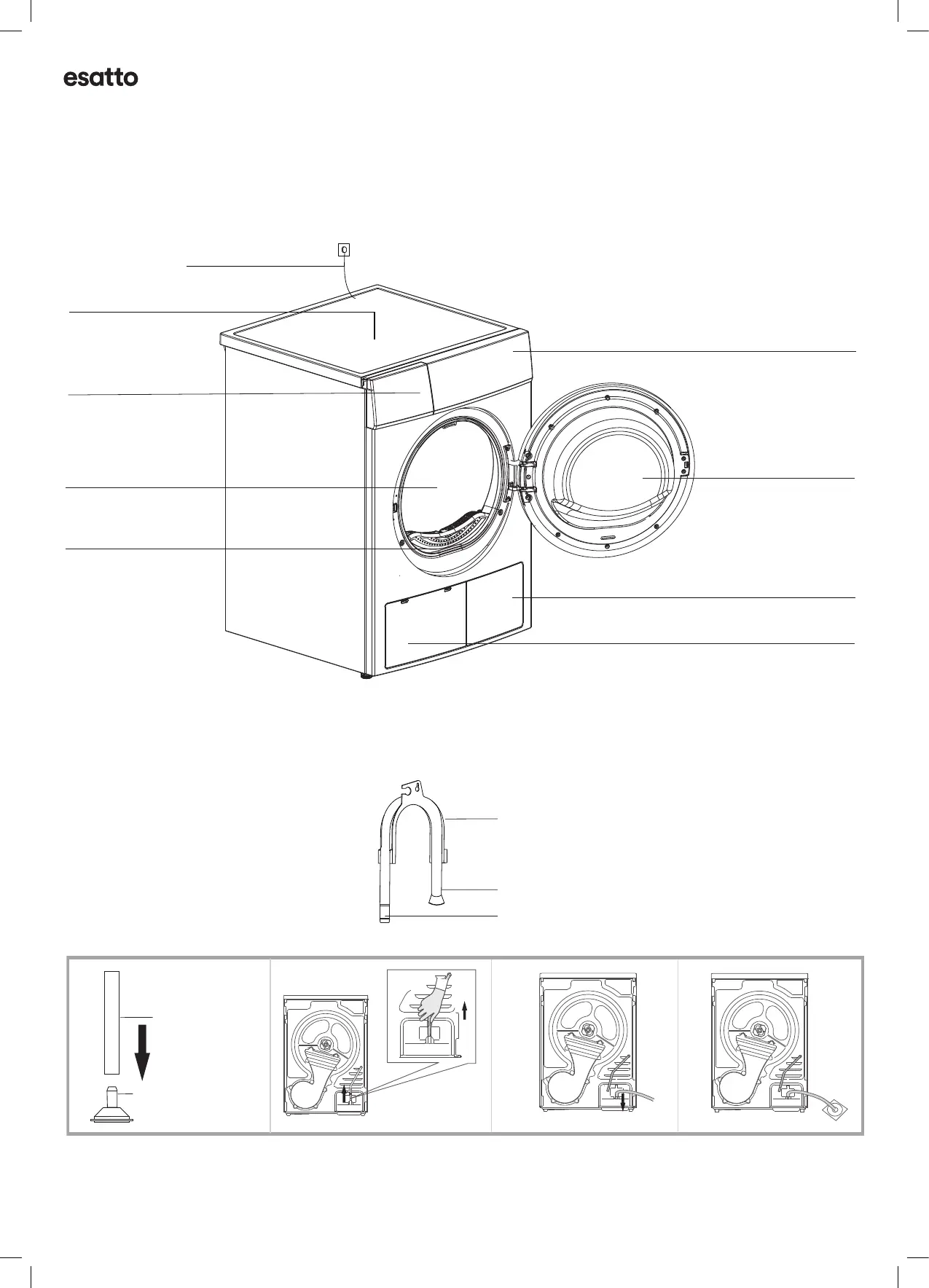

Your Dryer
INSTALLATION
9
Accessories
Product Description
Note: The actual model you purchased might differ. Please see the product you purchased in kind prevail.
Installation
Connector
Hose holder
Drain hose joint
Pull up the drain
hose joint
Pull up the upper drain hose Connect the external
drain hose to the water
pump
Put the external drain hose
into the floor drain
(be careful not to bend the
external drain hose)
Power cord
Door filter
Water container
Door
Control panel
Air inlet
Maintenance cover
Drum
Top board
The following parts are necessary for this model to avoid the question of the housing drawer
is easy to fill full.
Please wear gloves to install them as per the instruction below.
Power Cord
Top Panel
Water Container
Drying Drum
Door Filter
Maintenance Cover
Air Inlet
Door
Control Panel
INSTALLATION
9
Accessories
Product Description
Note: The actual model you purchased might differ. Please see the product you purchased in kind prevail.
Installation
Connector
Hose holder
Drain hose joint
Pull up the drain
hose joint
Pull up the upper drain hose Connect the external
drain hose to the water
pump
Put the external drain hose
into the floor drain
(be careful not to bend the
external drain hose)
Power cord
Door filter
Water container
Door
Control panel
Air inlet
Maintenance cover
Drum
Top board
The following parts are necessary for this model to avoid the question of the housing drawer
is easy to fill full.
Please wear gloves to install them as per the instruction below.
INSTALLATION
9
Accessories
Product Description
Note: The actual model you purchased might differ. Please see the product you purchased in kind prevail.
Installation
Connector
Hose holder
Drain hose joint
Pull up the drain
hose joint
Pull up the upper drain hose Connect the external
drain hose to the water
pump
Put the external drain hose
into the floor drain
(be careful not to bend the
external drain hose)
Power cord
Door filter
Water container
Door
Control panel
Air inlet
Maintenance cover
Drum
Top board
The following parts are necessary for this model to avoid the question of the housing drawer
is easy to fill full.
Please wear gloves to install them as per the instruction below.
Hose Holder
Condensing Drain Hose
Connector
1. Pull up the drain
hose joint
2. Pull up the upper
drain hose
3. Connect the external
drain hose into the
water pump
4. Put the external drain
hose into the oor drain
(be careful not to bend
the external drain hose)
