ESCALADE Goliath Prodigy B2255EF - Page 13

13
HARDWARE NEEDED (ACTUAL SIZE)
1/4-20 X 2.75 HHCS, ZINC
1B-7196-00
QTY. 1
30
WASHER, 1/4" SAE FLAT
2B-6014-00
QTY. 2
38
1/4-20 LOCKNUT, ZINC
2B-6792-00
QTY. 1
44
2
3
44
38
30
38
7/16”
TOOLS NEEDED
7/16”

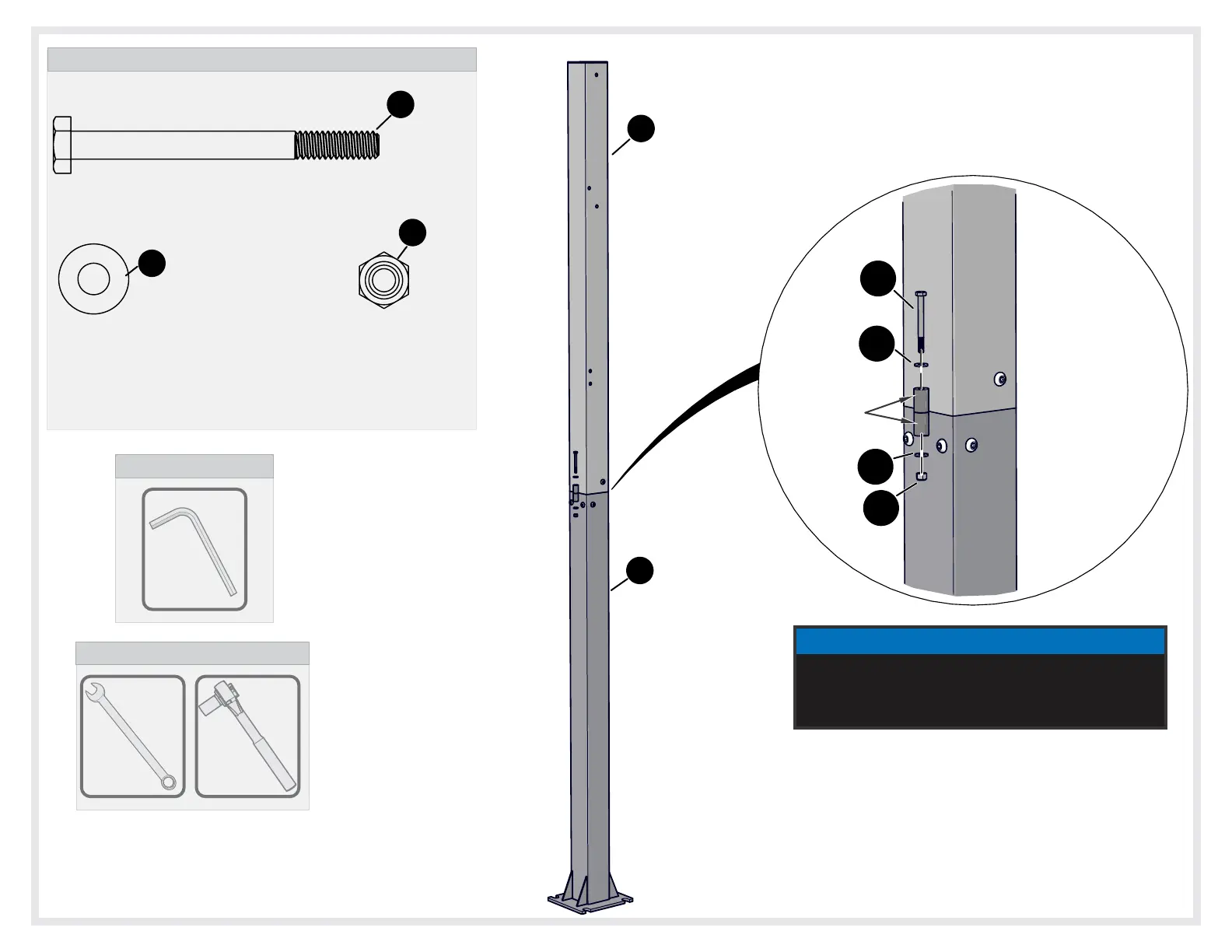

INSTALL BOLT (#30), WASHERS (#38) AND NUT (#44)
INTO JOINT REINFORCEMENT BUSHINGS AS SHOWN.
TIGHTEN (#30) BOLT AND NUT (#44) UNTIL SECURE.
NOTE
TOOLS NEEDED
7/32”
Joint
Reinforcement
Bushings
