ESCALADE Goliath Prodigy B2255EF - Page 18

18
HARDWARE NEEDED (ACTUAL SIZE)
1/2-13 X 1 1/2" HHCS
1B-6486-10
QTY. 1
27
1/2" FLAT WASHER, ZINC
2B-6093-00
QTY. 2
33
1/2-13 NUT NYLOK, ZINC
2B-6095-00
QTY. 1
41
41
33
33
27
17
12
3/4”
TOOLS NEEDED
3/4”

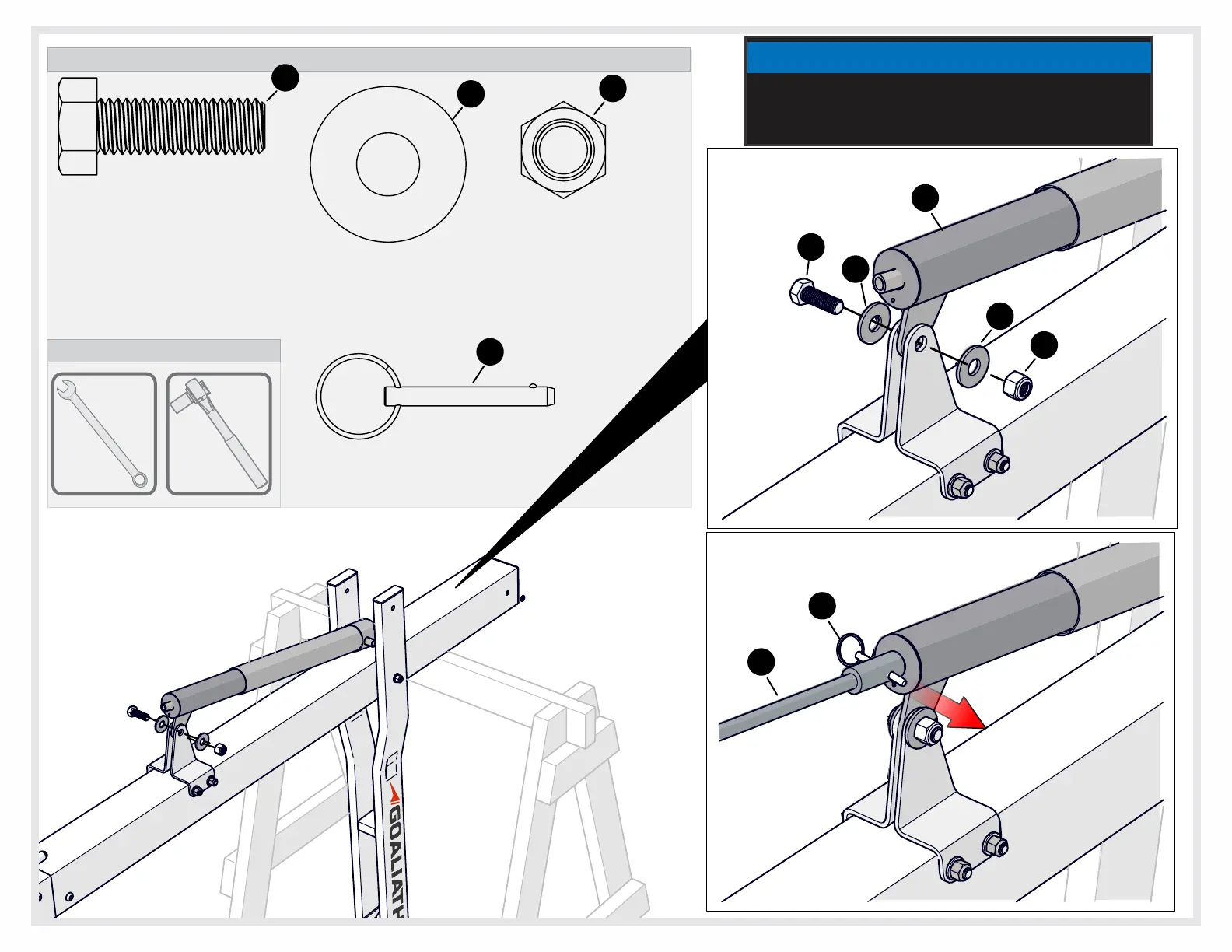

Attach actuator (#12) to post ears as shown, tighten
but leave loose enough for actuator to pivot. At this
time attach the Actuator handle (#13) with pin (#17).
NOTE
13
PULL PIN
7B-6255-00
QTY. 1
17
