28
HARDWARE NEEDED (ACTUAL SIZE)
3/8" WASHER
701-50
QTY. 4
36
3/8-16 LOCKNUT
901-28
QTY. 2
42
9/16”
TOOLS NEEDED
9/16”
NYLON WASHER,
0.38 ID X 1.25 OD
3M-6883-00
QTY. 2
34
3/8-16 X 2 3/4" HHCS
1B-6195-00
QTY. 2
34
34
36
36
36
42
25
25

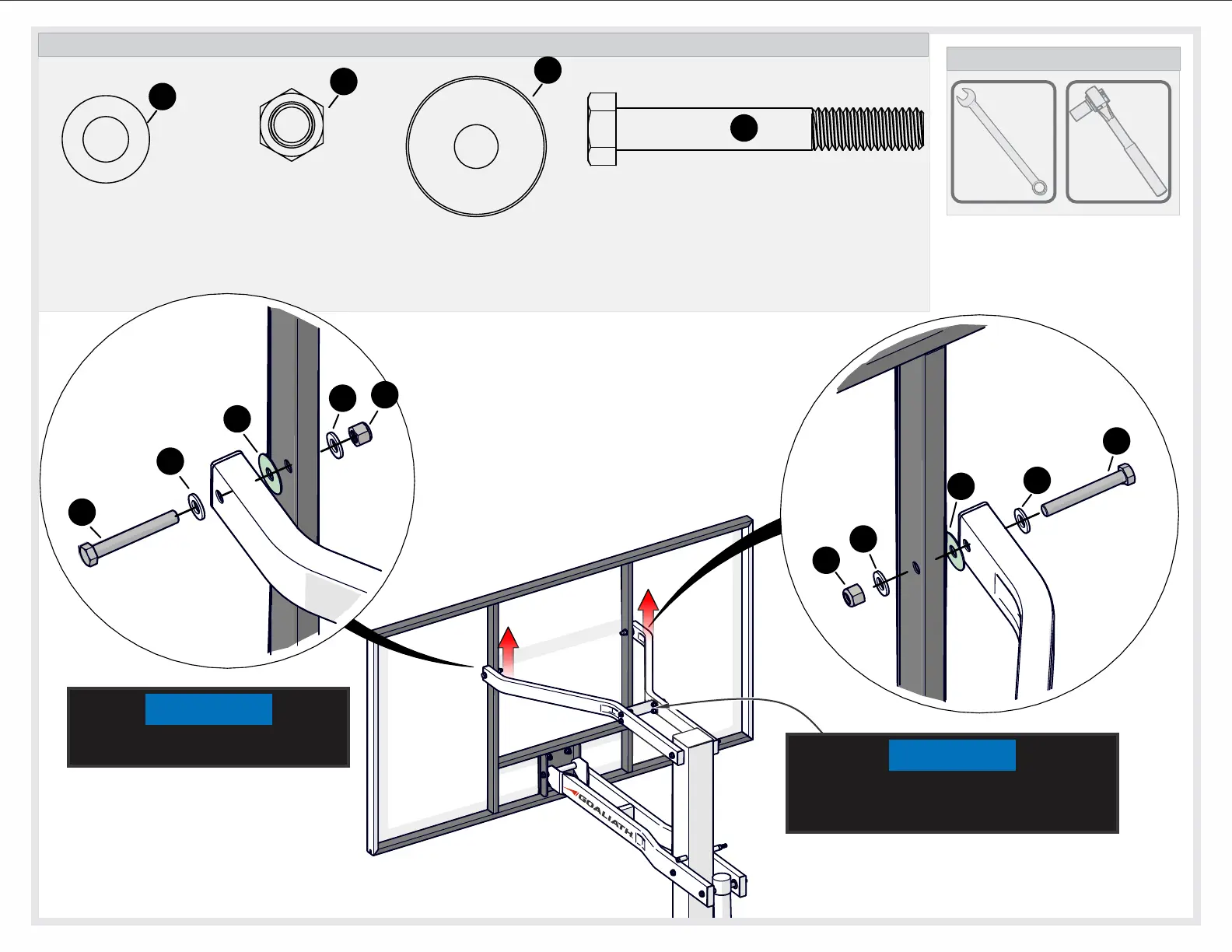

6. Pivot upper arms up and attach to the
outside of Backboard frame as shown.
Make sure you have a Nylon Washer
(#34) between the arms and the
backboard frame. Tighten this hardware
until snug tight but do not collapse
tubes.
36
42
25
AFTER THE BACKBOARD IS ATTACHED SNUG
TIGHTEN THE BOARD ARM BRACE HARDWARE,
FROM PAGE 23, BUT DO NOT COLLAPSE THE TUBES.
NOTE
DO NOT OVER TIGHTEN THESE BOLTS. THIS
IS A PIVOT POINT, SNUG IS TIGHT ENOUGH.
NOTE
To Next Page
