18. With at least two capable people, raise the backboard assembly
up and have the third attach Lower Board Arms to lower mounting
tubes on backboard using two bolts (#24), two plastic washers
(#5), four washers (#18) and two lock nuts (#4). See Figure 13.
NOTE: Do NOT over tighten these bolts. This is a pivot point.
Snug is tight enough.
19. Attach Upper Board Arms to upper mounting tubes on backboard
using two bolts (#24), two plastic washers (#5), four washers
(#18) and two lock nuts (#4). See Figure 13.
NOTE: Do NOT over tighten these bolts. This is a pivot point.
Snug is tight enough.

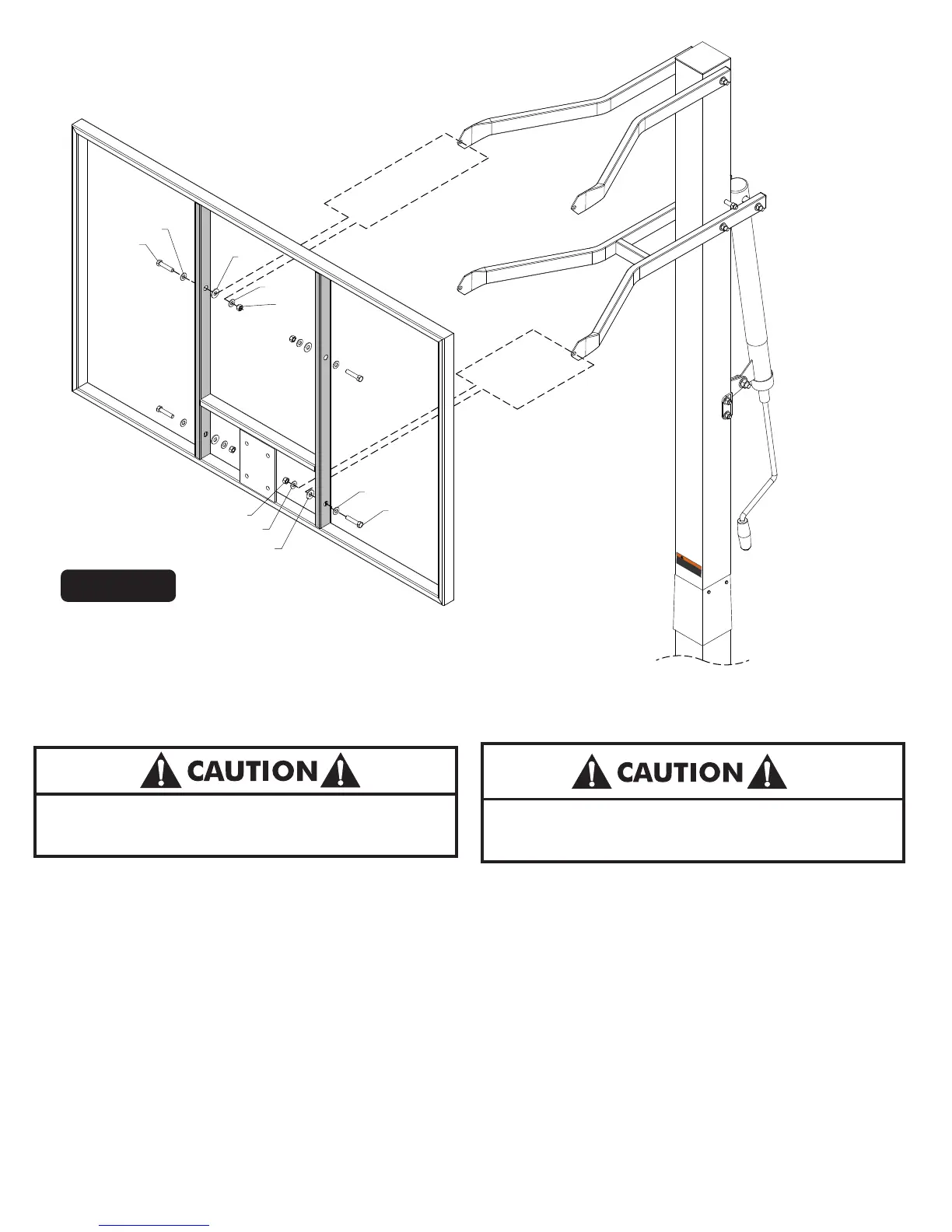

Figure 13
ATTACHING BA CKBOARD TO BO ARD ARMS
REQUIRES AT LEAST THREE CAPABLE ADULTS.
DO NOT DUNK ON THIS UNIT .
DO NOT HANG FROM ANY PART OF THIS
UNIT , INCLUDING THE BACKBOARD, RIM,
SUPPORT BRACES OR NET
.
4L-8152-00
W
ARNING
!
13
HANDLE BACKBOARD WITH CARE, IT IS A GLASS
PRODUCT. ALWAYS WEAR SAFETY GLASSES AND
GLOVES WHEN HANDLING GLASS.
To Next Page
