Raise Backboard to 10 FT. regulation playing
height. Measure from top of rim straight down
to the playing surface.
Using tape - mark the side of the steel actuator
(#16) just under the plastic actuator sleeve
(#15) at this 10 ft rim height. See Figure 15.
Lower backboard all the way down. Do not force
actuator once backboard is in it's lowest position.
See Figure 16.
Do not remove adhesive backing from height
decal (#17) yet. Carefully place height decal on
backside of steel actuator and line up the
10 ft mark on the tape with the 10 ft mark on the
height decal. Decal should fit correctly onto the
backside of the steel actuator. ( If not , simply
trim to fit the top of the actuator decal).
(#16)
27.
28.
29.
30.
31.
Remove the adhesive backing from the Height Decal (#17).
Next, carefully align and stick decal to backside of steel
actuator (#16) starting at the 10 ft mark first. Be sure to
keep the height decal straight and rub out all air bubbles. See
Figure 17.

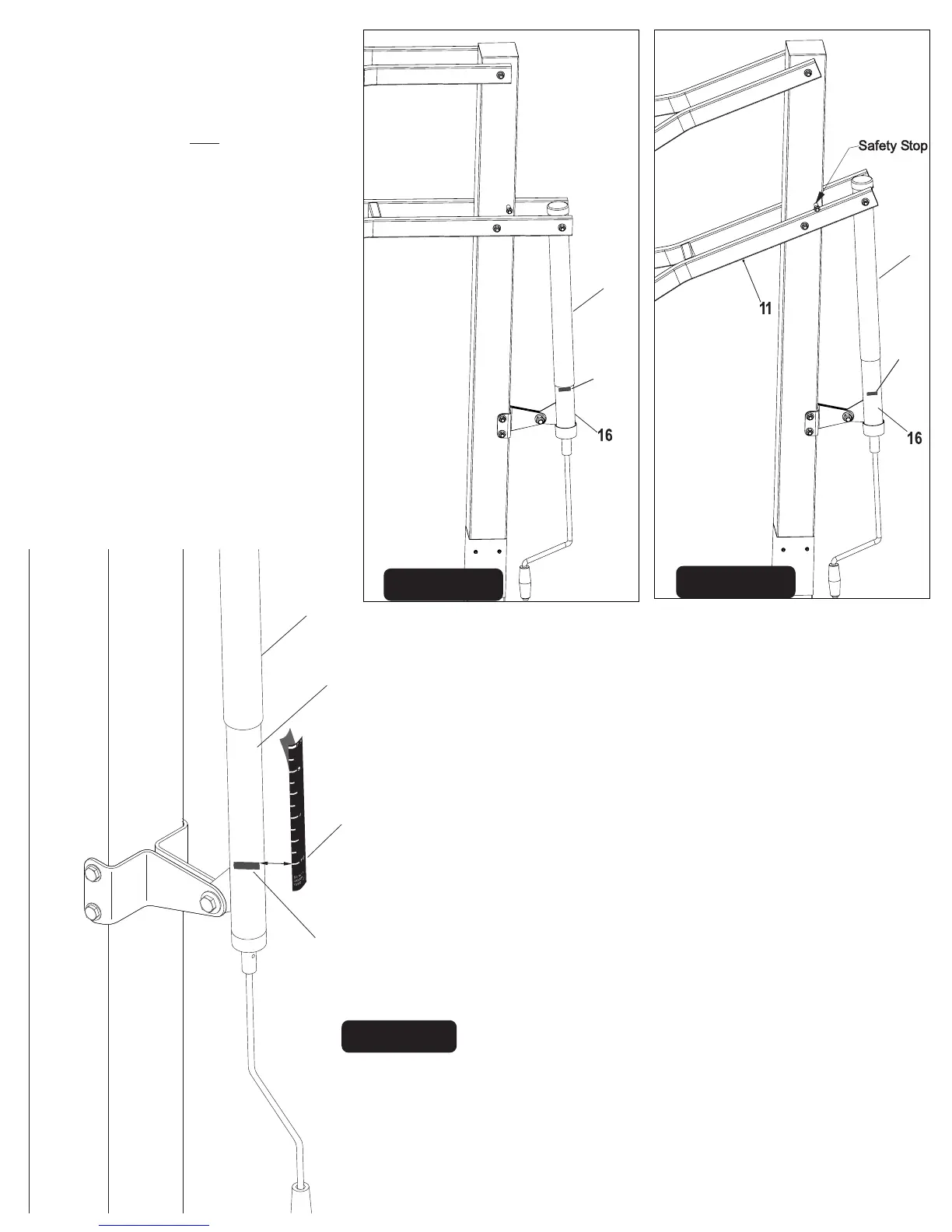

Set at 10 feet
Mark with
tape
15
Figure 15
Lowered all
the way down
Tape at
10 feet
Figure 16
15
Tape
17
16
15
Figure 17
15
