BURY LINE

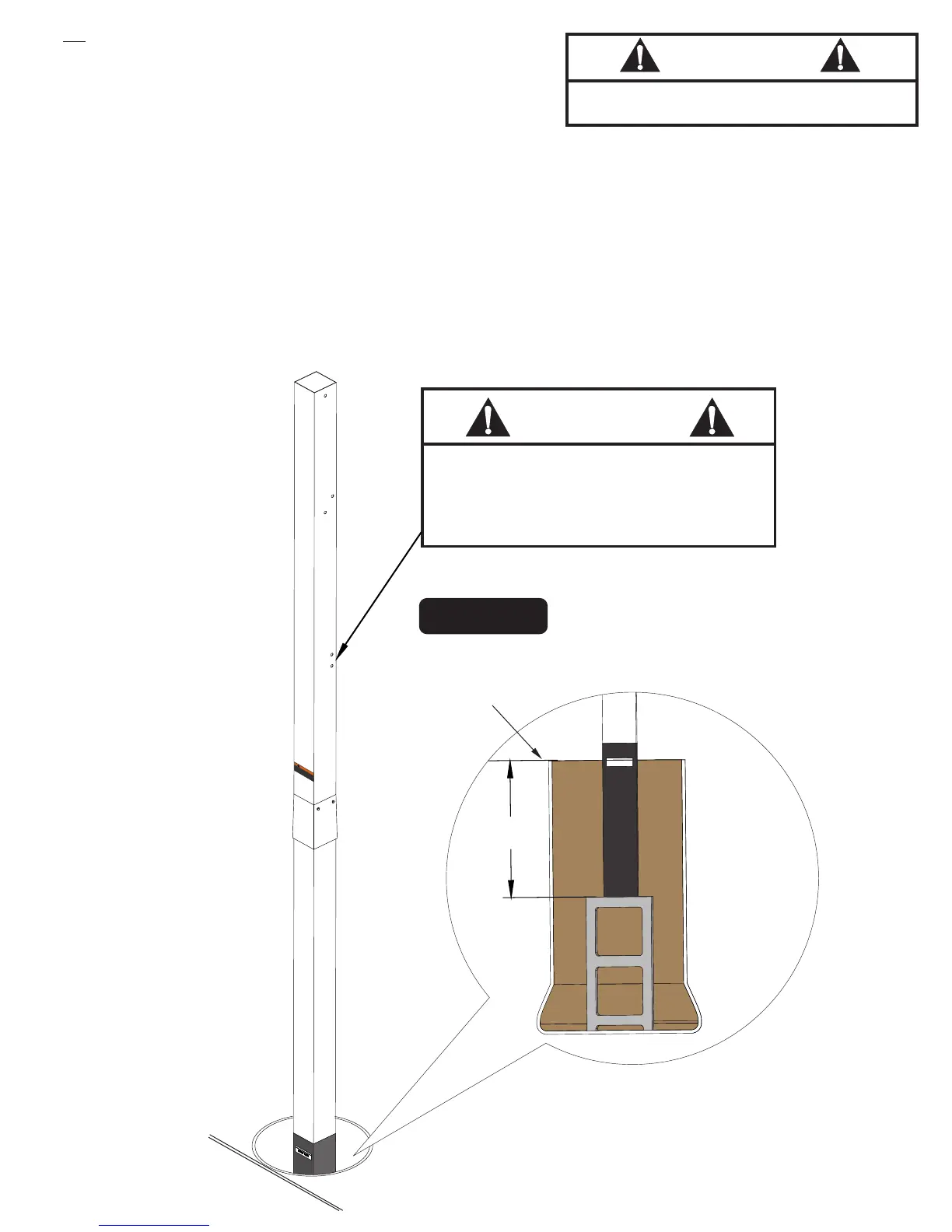

Figure 5
4.
Mix concrete per the instructions on concrete bag. Pour into the
hole and stop about 16” from Playing Surface/Court Level or until
you can still see the top of the Masonry block you placed earlier.
See Figure 5 and Detail 1.
5.
Set the bottom of the pole on the masonry block in the hole. Make
sure the Pole stays on the block as shown in Figure 5. The Bury line
should be level with the playing surface see Detail 1.
While one person holds the pole in place have two other people finish
pouring concrete up to Playing Surface / Court Level. Use a level to make
sure Pole is vertical.
6.
Detail 1
PLA
YING SURFACE
IMPORTANT
BE SURE THAT THE HOLES ARE TOWARD THE
BACK OF THE POLE AND “BACK SIDE”
STICKERS ARE AT THE BACK OF THE POLES/
OPPOSITE THE PLAYING SURFACE BEFORE
POURING CONCRETE ON STEPS 4-6.
(Court Level)
THE FOLLOWING STEPS WILL REQUIRE
AT LEAST THREE CAPABLE ADULTS.
IMPORTANT
16"
PLAYING SURFACE /
COURT LEVEL
DO NOT DUNK ON THIS UNIT .
DO NOT HANG FROM ANY PART OF THIS
UNIT , INCLUDING THE BACKBOARD, RIM,
SUPPORT BRACES OR NET
.
4L-8152-00
W
ARNING
!
8
*Tip: It is always a good idea to purchase two or three
extra bags of concrete, just in case you need them. If
extra bags are not used you can return them to the store.
