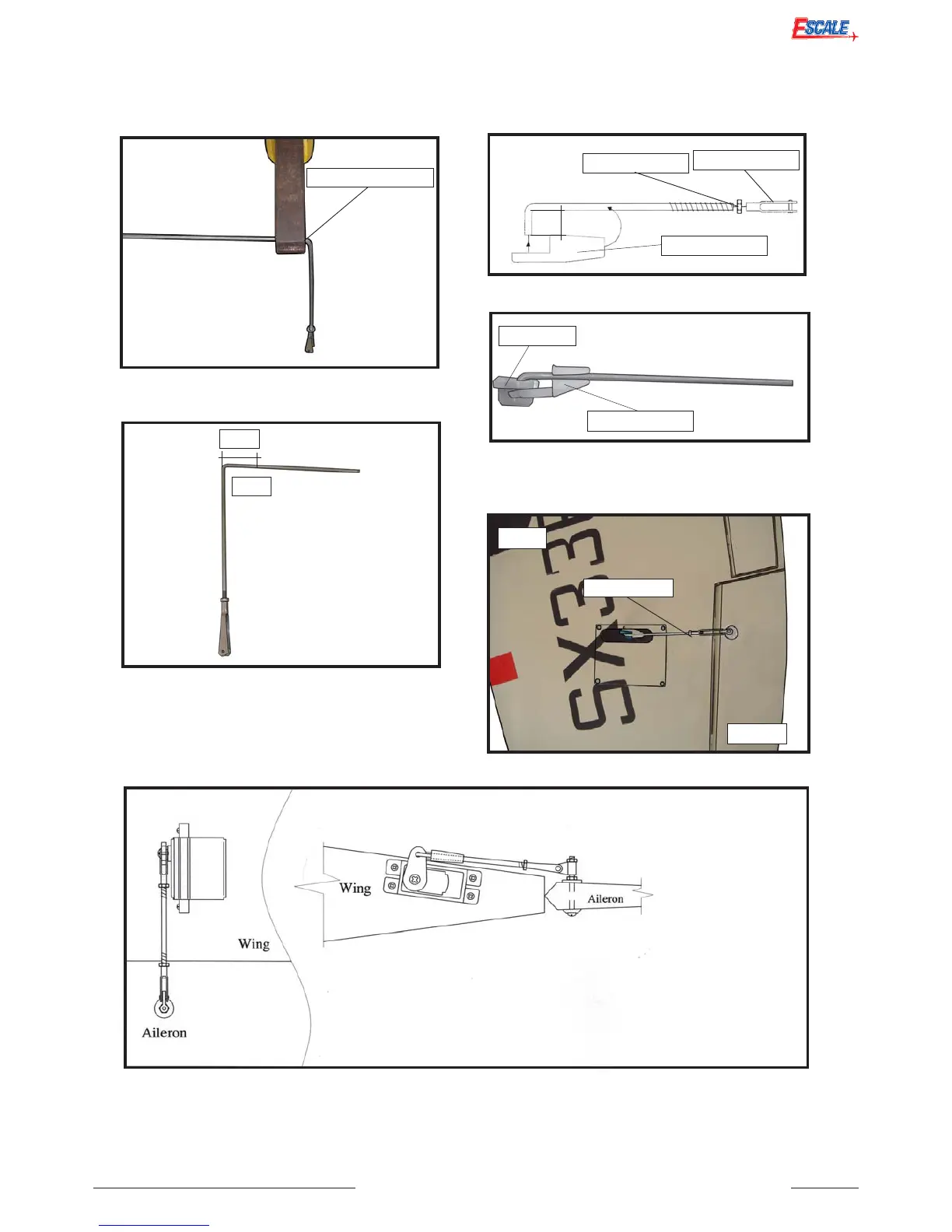

Wing.
Aileron.
M2 lock nut.
Repeat the procedure for the other aileron servo.
Snap keeper.
Servo arm.
3) Connect the linkage as shown and secure
the control wire with a snap keeper.
8mm
Snap keeper.
M2 lock nut.
Metal clevis.
1) Mark the control wire where it crosses the
servo arm hole.
Bend at the mark.
2) Make a 90-degree bend at the mark and cut
off the excess wire leaving 8mm past the bend.
Cut.
8mm.
