Elevator pushrod.
Control horn.
M2 lock nut.
Metal clevis.
Elevator pushrod.
Elevator control horn.
Rudder control horn.
Elevator control horn.

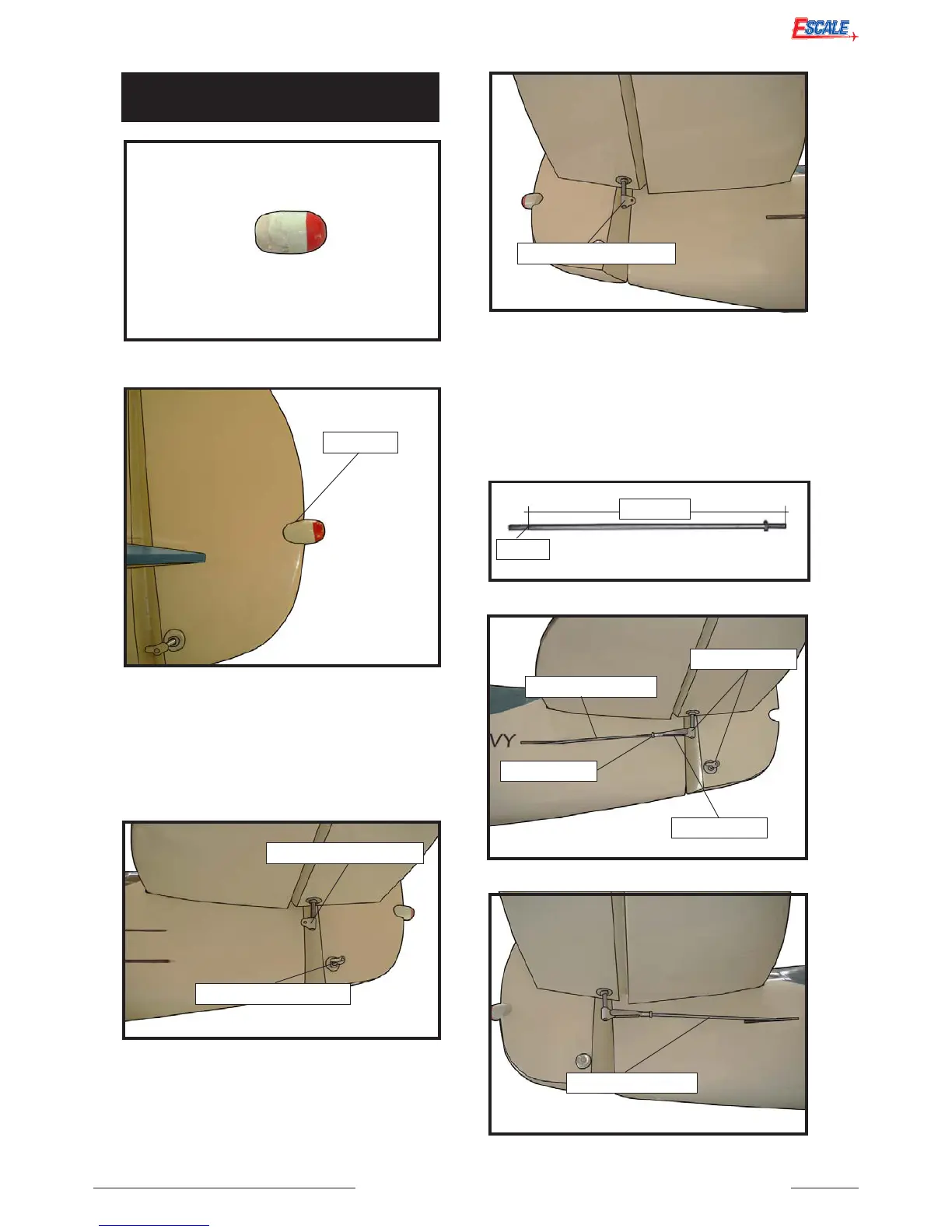

4) Elevator and rudder pushrods assembly
as pictures below.
3) Thread one clevis and M2 lock nut on
to each elevator control rod. Thread the horns
on until they are flush with the ends of the con-
trol rods.
604mm.
Cut.
ELEVATOR PUSHROD HORN
INSTALLATION
1) Install the elevator control horn using
the same method as with the aileron control
horns.
2) Position the elevator control horn on
the both side of elevator.
C/A glue.
