Receiver.
4) The last detail is to install the antenna
onto the fuselage. Use a hobby knife to cut a
slot in the top of the fuselage for the antenna.
Tighten the antenna.
Remove covering
to see hole.
5) Tighten the antenna to the fuselage.
The antenna is removeable so you can install
it at the flying field to prevent damage in trans-
porting.
A
B
A

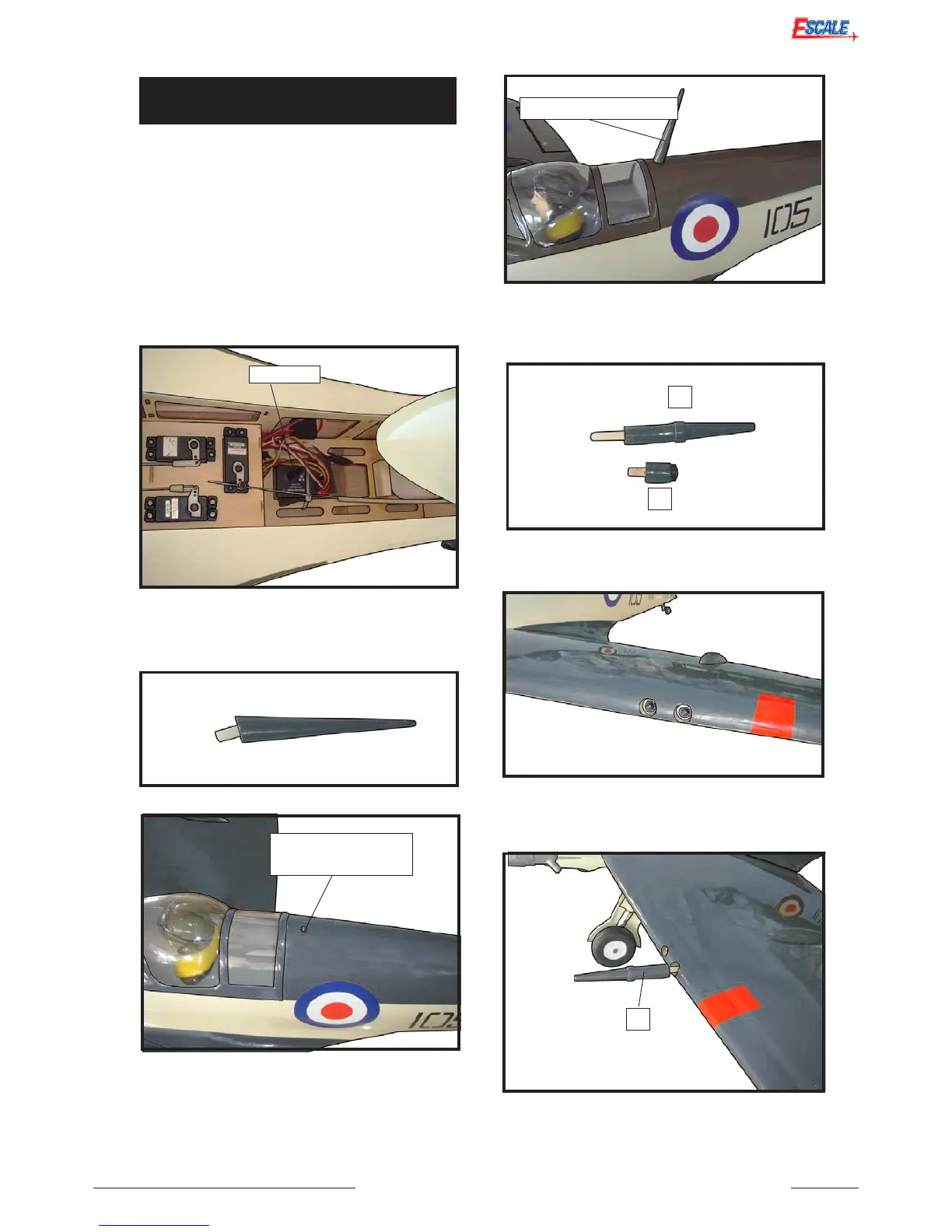

INSTALLING ANTENNA AND THE
RECEIVER
1) Plug the five servo leads and the
switch lead into the receiver. Plug the battery
pack lead into the switch also.
3 ) Route the antenna in the antenna
tube inside the fuselage and secure it to the
bottom of fuselage using a plastic tape.
2) Wrap the receiver and battery pack
in the protective foam rubber to protect them
from vibration.
