 Fascia Dimensions

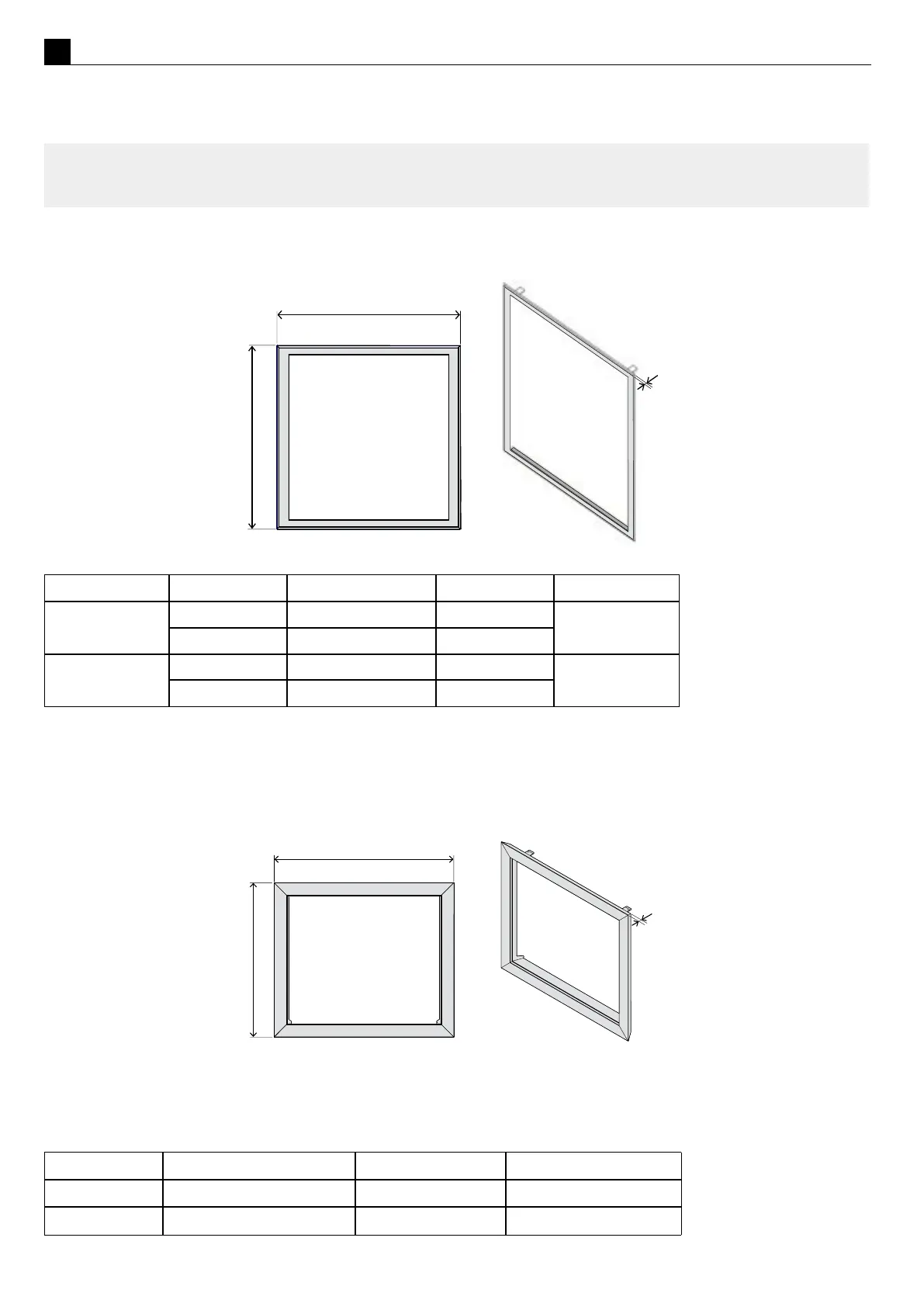

The dimensions of the fascias are shown below.


Slim Fascia & Stretch Fascia
Fascia Type A B C
DF700
Slim 723mm 598mm
4mm
Stretch 761mm 632mm
DF960
Slim 973mm 598mm
4mm
Stretch 1011mm 632mm
Edge Fascia
D E F
DF700
745mm 640mm 35mm
DF960
995mm 640mm 35mm
C
A
B
D
F
E
